* Actual products may vary slightly due to continuous design enhancments.

Essential Components

Essential Components for an LED Profile Installation

To ensure a neat, professional and long-lasting LED Profile installation, you'll need the following components:

  • LED Aluminium Profile – Choose the appropriate profile shape, size and finish to suit your installation, whether recessed, surface-mounted, corner-mounted or suspended.
  • LED Strip Light – Select a compatible LED Strip Light based on the required brightness, colour temperature, voltage and IP rating.
  • LED Diffuser Cover – Helps distribute light evenly, reduces visible LED hotspots and provides a clean, finished appearance.
  • LED Power Supply – Converts mains power to the correct DC voltage required by your LED Strip Light. Ensure the power supply is correctly rated for the total wattage.
  • LED Strip Connectors or Soldering Supplies – Used to connect LED strips and create reliable electrical connections.
  • Low-Voltage Cable – Suitable gauge cable for connecting the power supply, LED strip and any additional wiring.
  • Mounting Accessories – Mounting clips, brackets, screws or other fixing accessories to securely install the LED Profile.
  • End Caps – Provide a neat, professional finish at the ends of the profile while helping protect the LED strip and internal components.
  • LED Dimmer or Controller (Optional) – Allows brightness adjustment and control of compatible single-colour, CCT or RGB LED Strip Lights.
  • Wire Connectors or Terminal Blocks – Help create safe and reliable electrical connections.

Using the correct LED Profile, compatible LED Strip Light and quality installation accessories will improve heat dissipation, protect the LED strip, enhance light distribution and create a clean, professional lighting finish.

Whether you're installing LED Profiles in kitchens, retail displays, offices, furniture or architectural features, selecting the right components is essential for achieving a durable and attractive lighting installation.

LED Strip Light Channel

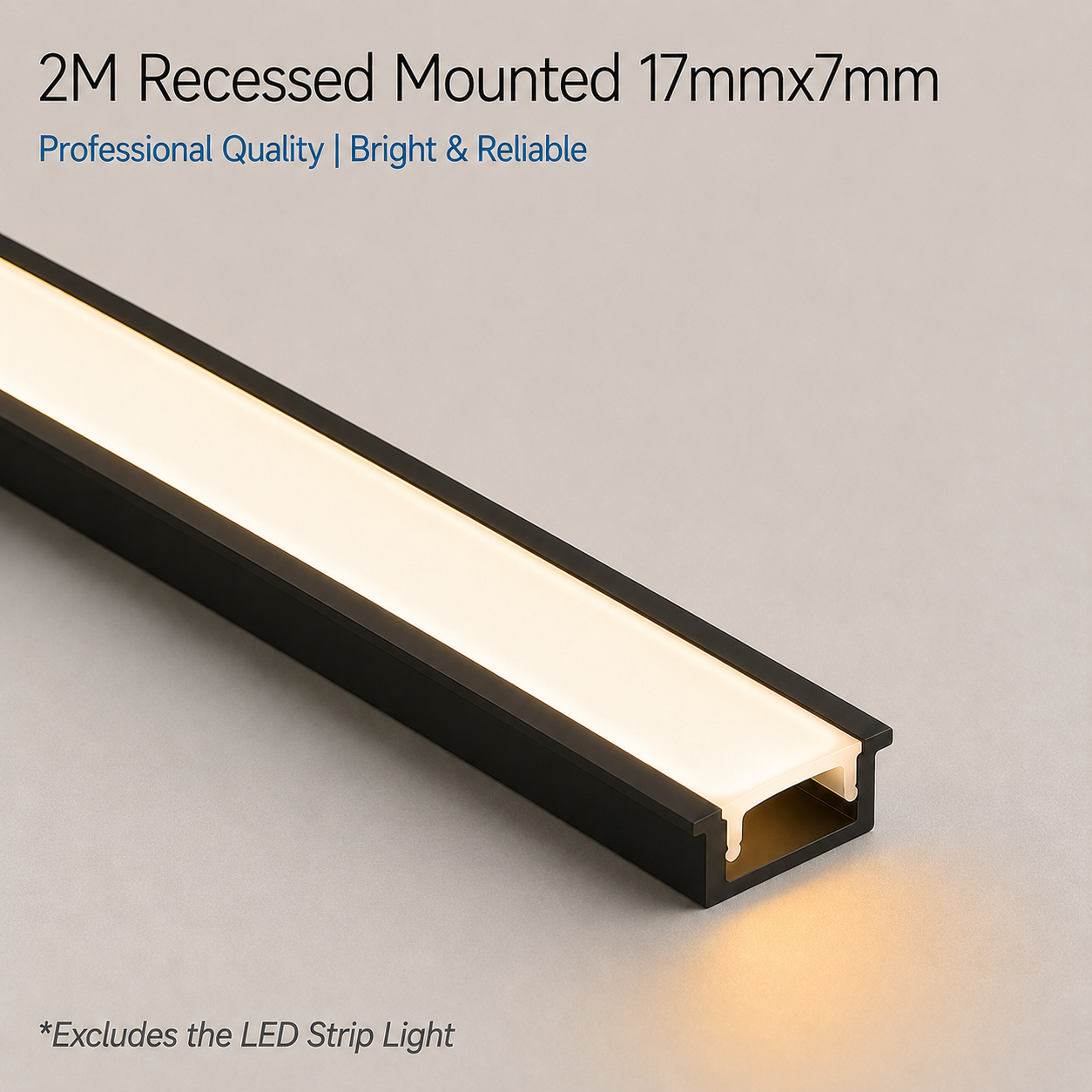

2M Recessed Black 17mm x 7mm

Online Price:
Original price was: R127.00.Current price is: R115.00. Vat Incl.

Unit: Per 2m
TypeAluminium
Compatible Strip12V & 24V & 230V
ColoursSilver & Black
Dimensions2m x 17mm x 7mm
ApplicationIndoor & Outdoor
MaterialAluminium
ProtectionIP65
Warranty1 Year

36 in stock (can be backordered)

What Power Supply Do I Need?

Essential Components for an LED Profile Installation

To ensure a neat, professional and long-lasting LED Profile installation, you'll need the following components:

  • LED Aluminium Profile – Choose the appropriate profile shape, size and finish to suit your installation, whether recessed, surface-mounted, corner-mounted or suspended.
  • LED Strip Light – Select a compatible LED Strip Light based on the required brightness, colour temperature, voltage and IP rating.
  • LED Diffuser Cover – Helps distribute light evenly, reduces visible LED hotspots and provides a clean, finished appearance.
  • LED Power Supply – Converts mains power to the correct DC voltage required by your LED Strip Light. Ensure the power supply is correctly rated for the total wattage.
  • LED Strip Connectors or Soldering Supplies – Used to connect LED strips and create reliable electrical connections.
  • Low-Voltage Cable – Suitable gauge cable for connecting the power supply, LED strip and any additional wiring.
  • Mounting Accessories – Mounting clips, brackets, screws or other fixing accessories to securely install the LED Profile.
  • End Caps – Provide a neat, professional finish at the ends of the profile while helping protect the LED strip and internal components.
  • LED Dimmer or Controller (Optional) – Allows brightness adjustment and control of compatible single-colour, CCT or RGB LED Strip Lights.
  • Wire Connectors or Terminal Blocks – Help create safe and reliable electrical connections.

Using the correct LED Profile, compatible LED Strip Light and quality installation accessories will improve heat dissipation, protect the LED strip, enhance light distribution and create a clean, professional lighting finish.

Whether you're installing LED Profiles in kitchens, retail displays, offices, furniture or architectural features, selecting the right components is essential for achieving a durable and attractive lighting installation.

What is an LED profile used for?

LED profiles are used to house and protect LED strip lights while improving heat dissipation and creating a clean, professional lighting finish.

Do LED profiles improve LED strip lifespan?

Yes. Aluminium LED profiles help dissipate heat away from LED strips, which improves performance and extends the lifespan of the LEDs.

Can LED profiles be recessed into ceilings or walls?

Yes. Recessed LED profiles are specifically designed to be installed flush into ceilings, walls, cabinetry, and other surfaces for seamless lighting integration.

What diffuser options are available?

LED profiles are commonly available with clear, frosted, or opal diffuser covers depending on the desired lighting effect and diffusion level.

Are LED profiles suitable for outdoor use?

Yes. Certain LED profiles are designed for outdoor and waterproof applications when paired with suitable IP-rated LED strips and covers.

LED Profile Installation & Setup

Installing an LED Profile is straightforward when the correct components and installation methods are used. Whether you're installing recessed, surface-mounted, corner or suspended LED Profiles, proper preparation will ensure a neat, professional finish.

Step 1: Plan Your Installation

Measure the installation area and determine the required LED Profile length. Select the appropriate profile type, dimensions and mounting method for your application. Consider the type of LED Strip Light and diffuser required.

Step 2: Prepare the Mounting Surface

Ensure the mounting surface is clean, dry and free from dust or grease. For recessed installations, prepare the required channel or cut-out before fitting the profile. Check that the profile fits correctly before proceeding.

Step 3: Cut the LED Profile to Size

Measure and cut the aluminium LED Profile to the required length using a suitable cutting tool. Ensure cuts are straight and clean for a professional finish. Cut the diffuser cover and mounting accessories to match the profile length where required.

Step 4: Install the LED Profile

Secure the profile using the appropriate mounting clips, brackets, screws or installation method. For recessed profiles, ensure the profile sits correctly within the prepared channel. Make sure the profile is straight and securely fitted.

Step 5: Prepare and Install the LED Strip Light

Clean the inside of the aluminium profile before installation. Measure and cut the LED Strip Light at its designated cutting points. Remove the adhesive backing and carefully position the strip inside the profile, ensuring it is evenly aligned.

Step 6: Connect and Test the Lighting

Connect the LED Strip Light to the correctly rated LED power supply. Observe the correct polarity and test the lighting before fitting the diffuser cover. Check that the entire strip illuminates evenly.

Step 7: Fit the Diffuser and End Caps

Once the lighting has been tested, install the diffuser cover by pressing it securely into the profile. Fit the appropriate end caps to create a neat, finished appearance and protect the ends of the installation.

Installation Tips

  • Always select an LED Profile that is compatible with the dimensions of your LED Strip Light.
  • Use aluminium profiles to improve heat dissipation and help extend LED strip lifespan.
  • Ensure the mounting surface is clean and properly prepared before installation.
  • Use suitable cutting tools to achieve clean, straight edges.
  • Avoid damaging the diffuser when cutting or fitting it.
  • Check that the LED Strip Light is correctly positioned inside the profile.
  • Test all electrical connections before installing the diffuser cover.
  • Choose the correct profile and diffuser combination for your desired lighting effect.
  • Allow sufficient space for wiring and connections, particularly in recessed installations.

Following these steps will help ensure a secure installation, effective heat dissipation, consistent light distribution and a clean, professional finish for your LED Profile lighting project.

Common Issues & Solutions

LED Profile diffuser won't fit properly

  • Check that the diffuser is compatible with the specific LED Profile.
  • Ensure the profile and diffuser have been cut to matching lengths.
  • Check for bent edges or damage that may prevent the diffuser from clipping into place.
  • Remove any debris or obstructions inside the profile channel.

LED Profile is loose or coming away from the mounting surface

  • Check that the correct mounting clips or brackets have been used.
  • Ensure the mounting surface is clean, dry and suitable for installation.
  • Check that screws and fixing points are securely fastened.
  • Use the recommended mounting accessories for the particular profile.

Uneven or visible LED hotspots

  • Check that the LED Strip Light is correctly positioned inside the profile.
  • Consider using a deeper LED Profile or opal diffuser to improve light distribution.
  • Ensure the LED strip is evenly spaced and aligned.
  • Select a suitable COB LED Strip Light for a more continuous, dot-free lighting effect.

LED Profile becomes excessively hot

  • Ensure the LED Strip Light is compatible with the profile dimensions and power rating.
  • Check that the aluminium profile has sufficient surface area for heat dissipation.
  • Avoid installing high-wattage LED strips in profiles that are too small.
  • Ensure the profile is installed correctly and has adequate contact with its mounting surface.

LED Strip Light does not stay in place

  • Clean the inside of the aluminium profile before installation.
  • Remove dust, grease and other contaminants.
  • Ensure the LED strip adhesive is suitable for the installation.
  • Consider additional suitable fixing methods if required.

Profile or diffuser is damaged

  • Check for damage caused during cutting, transportation or installation.
  • Use appropriate cutting tools to achieve clean edges.
  • Avoid excessive force when fitting diffuser covers and end caps.
  • Replace damaged components to maintain a professional finish.

Recommendations

  • Choose the correct LED Profile based on the dimensions and wattage of your LED Strip Light.
  • Use aluminium profiles to improve heat dissipation and protect LED strips.
  • Select an opal diffuser for softer, more evenly distributed lighting.
  • Use clear diffusers when maximum light output is preferred.
  • Ensure the profile is securely mounted using suitable clips, brackets or screws.
  • Always measure carefully before cutting aluminium profiles and diffuser covers.
  • Use compatible end caps to create a neat, professional finish.
  • Consider deeper profiles when using higher-density or higher-wattage LED strips.
  • Test the LED Strip Light before permanently fitting the diffuser.
  • Clean profiles regularly to prevent dust and dirt from affecting light output.

Following these recommendations will help maximise the performance, appearance and lifespan of your LED Profile installation while reducing the likelihood of common installation problems.


LED Profile Safety Tips

To ensure safe installation and reliable operation, follow these important safety guidelines:

  • Always disconnect the LED power supply before installing, cutting or modifying the LED Profile or LED Strip Light.
  • Use appropriate tools when cutting aluminium profiles and diffuser covers.
  • Wear protective gloves and safety glasses when cutting or handling aluminium, as sharp edges and metal shavings can cause injuries.
  • Deburr and smooth cut aluminium edges before handling or installation.
  • Ensure the LED Profile is securely mounted to prevent it from falling or becoming loose.
  • Check that the profile is compatible with the dimensions and heat output of the LED Strip Light.
  • Never connect an LED Strip Light directly to 230V AC mains power unless it is specifically designed and rated for direct mains operation.
  • Always use a correctly rated LED power supply suitable for the LED Strip Light.
  • Keep electrical connections properly insulated and protected against accidental contact.
  • Ensure wiring is routed safely and does not become trapped between the profile and mounting surface.
  • Use suitable IP-rated lighting components and electrical connections in damp or outdoor environments.
  • Avoid installing LED Profiles where they may be exposed to excessive heat, moisture or physical damage beyond their rated specifications.
  • If connecting mains electricity, consult a qualified electrician.
  • Regularly inspect the installation for loose fittings, damaged wiring or signs of overheating.

Following these safety precautions will help ensure a secure installation, reliable lighting performance and a long service life for your LED Profile system.

LED Profile Applications & Use Cases

LED Profiles are a practical and stylish lighting solution for both residential and commercial projects. Designed to house and protect LED Strip Lights, they provide a professional finish while helping to diffuse light, improve heat dissipation and create a clean, modern appearance.

Common applications include:

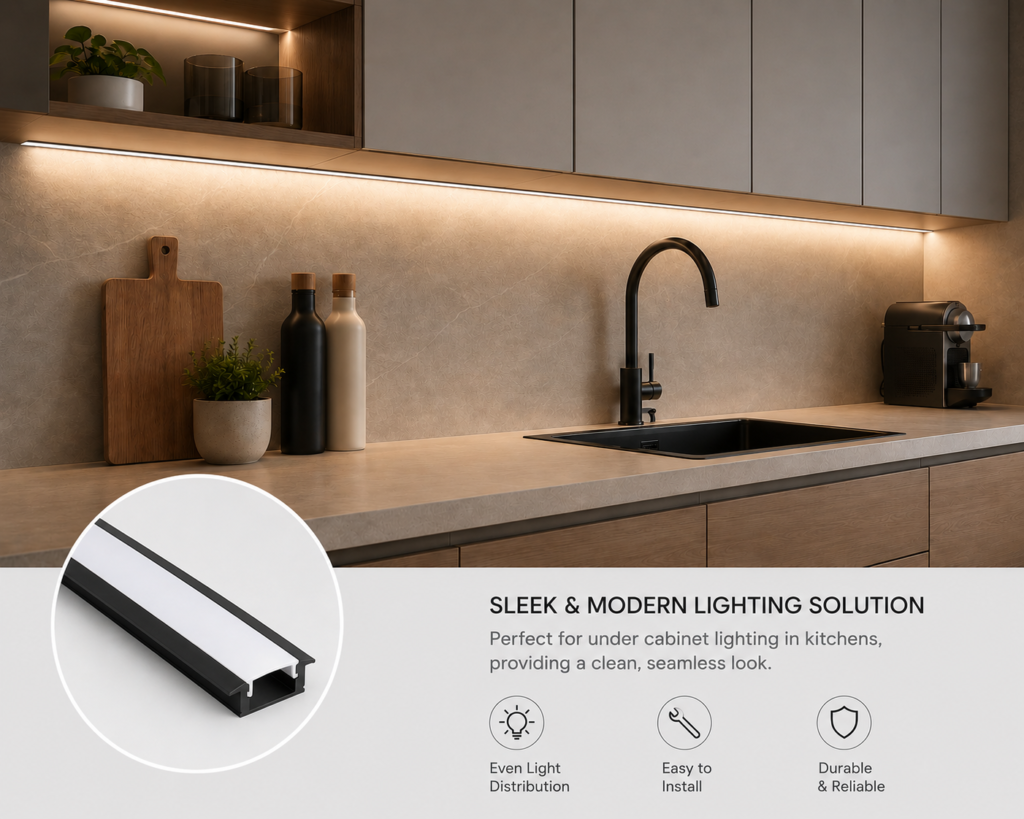

  • Under-cabinet kitchen lighting
  • Wardrobe and closet lighting
  • Shelf and display cabinet illumination
  • Retail displays and shop fittings
  • Architectural feature lighting
  • Cove and cornice lighting
  • Ceiling recess and bulkhead lighting
  • Staircase and handrail lighting
  • Office desks and workstations
  • Reception desks and counters
  • Hotel, restaurant and bar interiors
  • Exhibition stands and trade show displays
  • Signage and illuminated lettering
  • Bathroom and vanity lighting
  • Furniture and joinery lighting
  • DIY home lighting projects

LED Profiles are available in various shapes, sizes and finishes to suit different installation requirements. When paired with compatible LED Strip Lights and diffusers, they help create a smooth, professional lighting effect while protecting the LED strip from dust, accidental contact and everyday wear.

Whether used for decorative accent lighting, functional task lighting or architectural installations, LED Profiles offer a neat, durable and professional way to install LED Strip Lights.

Professional LED Profile Supplier LEDZ offers high-quality LED aluminium profiles designed to provide a clean, modern finish while improving the performance and lifespan of LED strip lights. Manufactured from durable aluminium with premium diffuser covers, LED profiles help dissipate heat effectively, protect LED strips from dust and damage, and deliver smooth, professional light distribution across residential, commercial, retail, and architectural lighting applications.

Their range includes surface-mounted, recessed, corner, suspended, and plaster-in LED profiles suitable for a wide variety of installations. Available in multiple sizes, finishes, and diffuser options, LEDZ LED profiles are easy to install and compatible with most LED strip lights. Backed by reliable quality and professional-grade construction, LEDZ LED profiles offer the perfect solution for creating sleek, modern lighting designs with long-lasting performance.

Colours & Diagrams

2m led profile black (surface)

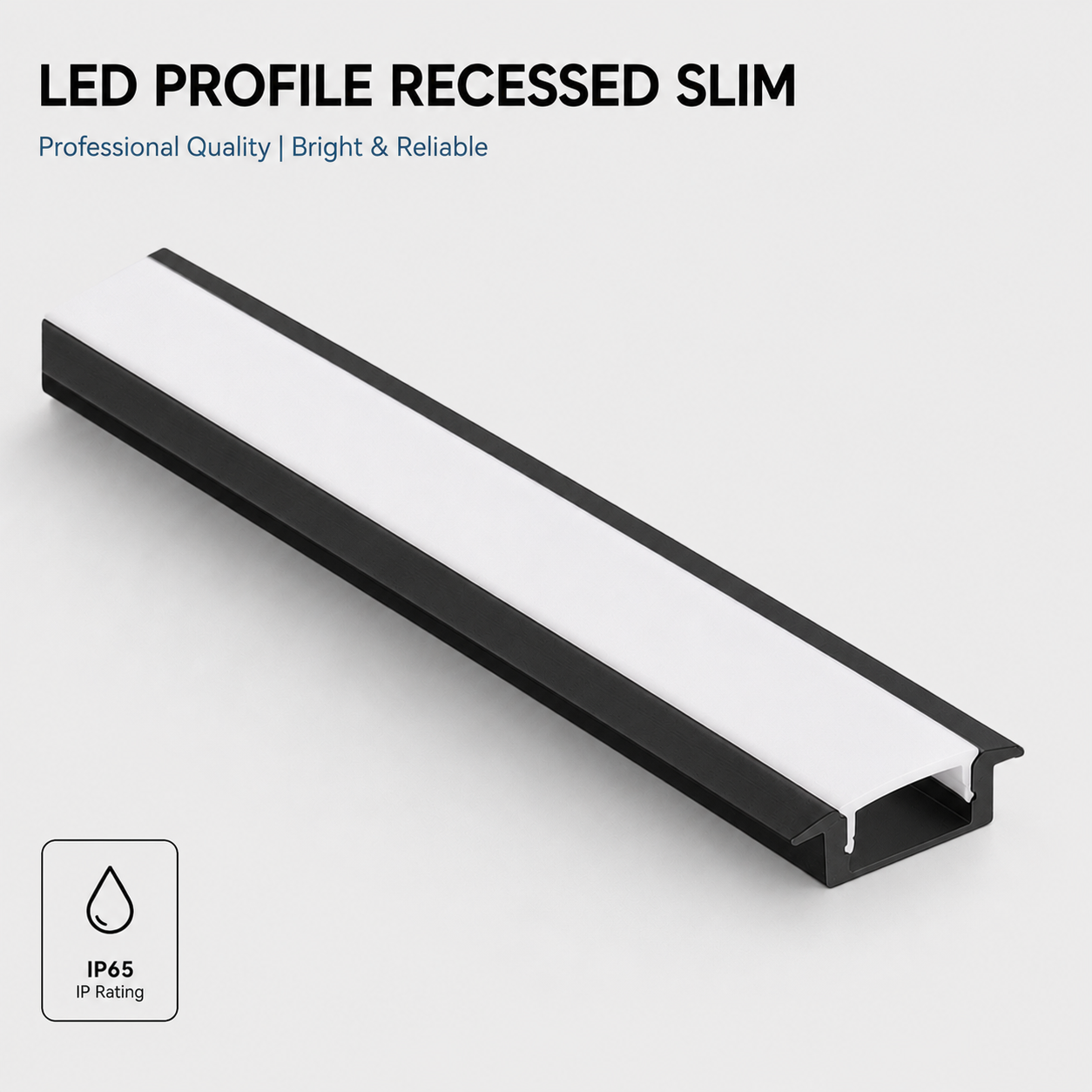

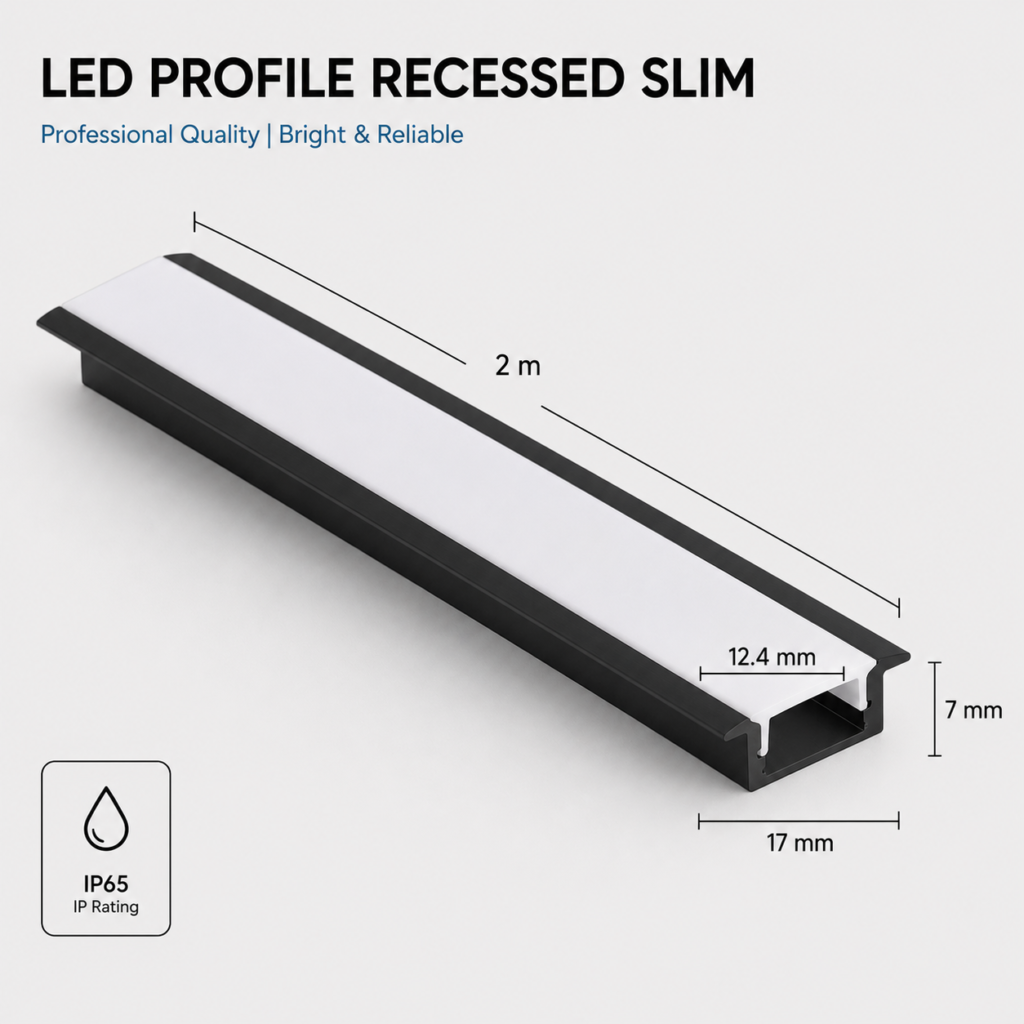

LED PROFILE RECESSED SLIM DIMENSIONS

2m led profile black (surface)
