About
Frequently Asked Questions
What accessories do I require for a basic LED Module installation?
- For a basic installation you will generally require:
- 1 × LED Modules
- 1 × Compatible 12V DC Power Supply
- Power Cord
- 2-Core Flex Cable (if extending the distance between the power supply and modules)
- Wire Connectors (optional for tool-free connections)
- Simply connect the LED Modules to the correct 12V Power Supply, check all connections, and then connect the power supply to the mains.
Are there any optional accessories I may need?
Depending on your installation you may also require:
- Insulated 2-Core Flex Cable
- 2-Core Wire Connectors
- Waterproof Junction Boxes (for outdoor installations)
- Mounting Clips or Cable Ties
- Silicone Sealant (for additional weather protection where required)
What voltage power supply should I use?
Always use a 12V DC Power Supply with our 12V LED Modules.
Never connect LED Modules directly to 230V AC mains power.
How do I calculate the correct power supply size?
Multiply:
Number of LED Modules × Wattage per Module + 15%
Example:
- 20 Modules × 0.72W = 14.4W
- Add 15% safety margin = 16.6W
A 20W Power Supply would therefore be suitable.
Where are LED Modules commonly used?
LED Modules are commonly used for:
- 3D Channel Letters
- Lightboxes
- Signage
- Display Cabinets
- Retail Displays
- Architectural Lighting
- Backlit Acrylic Signs
Can I install LED Modules myself?
Yes. LED Modules are designed for simple installation and are ideal for DIY users and professional sign installers alike.
Always ensure the correct power supply is used and disconnect mains power before making any electrical connections.
Can I receive an electric shock?
It is highly unlikely to receive a dangerous electric shock from the low-voltage 12V DC output side of the power supply.
Always complete your wiring first and only connect the power supply to the mains once all connections have been checked.
Can LED Modules be used outdoors?
Yes, provided you choose waterproof LED Modules with the appropriate IP rating and install them using suitable waterproof connections and power supplies.
Always check the IP rating of the specific module before outdoor installation.
Can I cut or separate the LED Modules?
Yes. LED Modules are connected by wires and can be separated between each module to suit your installation.
Do not cut through the module itself.

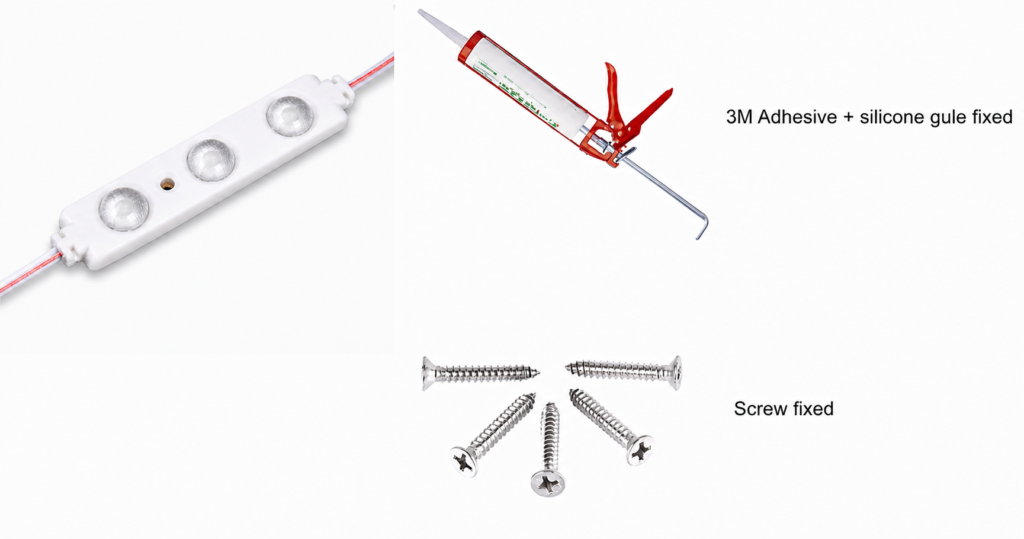

How are LED Modules mounted?
Most LED Modules feature high-strength double-sided adhesive tape on the back.
For added security, particularly outdoors or in warm environments, screws, cable ties or silicone adhesive may also be used.
Can LED Modules be dimmed?
Yes.
LED Modules can be dimmed using a compatible 12V PWM LED Dimmer.
Always ensure both the dimmer and power supply are correctly rated for the total wattage of your installation.
How far apart should LED Modules be spaced?
Spacing depends on the module’s beam angle, brightness and the depth of your sign or lightbox.
As a general guide:
- 60–100mm spacing for shallow channel letters
- 100–150mm spacing for deeper lightboxes
For the most even illumination, we recommend testing the layout before permanently mounting the modules.
3LED Module | 160°
1.0W | 12V | Daylight
Online Price:
Original price was: R8.00.R7.00Current price is: R7.00. Vat Incl.
2000 in stock (can be backordered)
Applications & Use Cases
Frequently Asked Questions
Frequently Asked Questions
What accessories do I require for a basic LED Module installation?
- For a basic installation you will generally require:
- 1 × LED Modules
- 1 × Compatible 12V DC Power Supply
- Power Cord
- 2-Core Flex Cable (if extending the distance between the power supply and modules)
- Wire Connectors (optional for tool-free connections)
- Simply connect the LED Modules to the correct 12V Power Supply, check all connections, and then connect the power supply to the mains.
Are there any optional accessories I may need?
Depending on your installation you may also require:
- Insulated 2-Core Flex Cable
- 2-Core Wire Connectors
- Waterproof Junction Boxes (for outdoor installations)
- Mounting Clips or Cable Ties
- Silicone Sealant (for additional weather protection where required)
What voltage power supply should I use?
Always use a 12V DC Power Supply with our 12V LED Modules.
Never connect LED Modules directly to 230V AC mains power.
How do I calculate the correct power supply size?
Multiply:
Number of LED Modules × Wattage per Module + 15%
Example:
- 20 Modules × 0.72W = 14.4W
- Add 15% safety margin = 16.6W
A 20W Power Supply would therefore be suitable.
Where are LED Modules commonly used?
LED Modules are commonly used for:
- 3D Channel Letters
- Lightboxes
- Signage
- Display Cabinets
- Retail Displays
- Architectural Lighting
- Backlit Acrylic Signs
Can I install LED Modules myself?
Yes. LED Modules are designed for simple installation and are ideal for DIY users and professional sign installers alike.
Always ensure the correct power supply is used and disconnect mains power before making any electrical connections.
Can I receive an electric shock?
It is highly unlikely to receive a dangerous electric shock from the low-voltage 12V DC output side of the power supply.
Always complete your wiring first and only connect the power supply to the mains once all connections have been checked.
Can LED Modules be used outdoors?
Yes, provided you choose waterproof LED Modules with the appropriate IP rating and install them using suitable waterproof connections and power supplies.
Always check the IP rating of the specific module before outdoor installation.
Can I cut or separate the LED Modules?
Yes. LED Modules are connected by wires and can be separated between each module to suit your installation.
Do not cut through the module itself.
How are LED Modules mounted?
Most LED Modules feature high-strength double-sided adhesive tape on the back.
For added security, particularly outdoors or in warm environments, screws, cable ties or silicone adhesive may also be used.
Can LED Modules be dimmed?
Yes.
LED Modules can be dimmed using a compatible 12V PWM LED Dimmer.
Always ensure both the dimmer and power supply are correctly rated for the total wattage of your installation.
How far apart should LED Modules be spaced?
Spacing depends on the module's beam angle, brightness and the depth of your sign or lightbox.
As a general guide:
- 60–100mm spacing for shallow channel letters
- 100–150mm spacing for deeper lightboxes
For the most even illumination, we recommend testing the layout before permanently mounting the modules.
Frequently Asked Questions
What accessories do I require for a basic LED Module installation?
- For a basic installation you will generally require:
- 1 × LED Modules
- 1 × Compatible 12V DC Power Supply
- Power Cord
- 2-Core Flex Cable (if extending the distance between the power supply and modules)
- Wire Connectors (optional for tool-free connections)
- Simply connect the LED Modules to the correct 12V Power Supply, check all connections, and then connect the power supply to the mains.
Are there any optional accessories I may need?
Depending on your installation you may also require:
- Insulated 2-Core Flex Cable
- 2-Core Wire Connectors
- Waterproof Junction Boxes (for outdoor installations)
- Mounting Clips or Cable Ties
- Silicone Sealant (for additional weather protection where required)
What voltage power supply should I use?
Always use a 12V DC Power Supply with our 12V LED Modules.
Never connect LED Modules directly to 230V AC mains power.
How do I calculate the correct power supply size?
Multiply:
Number of LED Modules × Wattage per Module + 15%
Example:
- 20 Modules × 0.72W = 14.4W
- Add 15% safety margin = 16.6W
A 20W Power Supply would therefore be suitable.
Where are LED Modules commonly used?
LED Modules are commonly used for:
- 3D Channel Letters
- Lightboxes
- Signage
- Display Cabinets
- Retail Displays
- Architectural Lighting
- Backlit Acrylic Signs
Can I install LED Modules myself?
Yes. LED Modules are designed for simple installation and are ideal for DIY users and professional sign installers alike.
Always ensure the correct power supply is used and disconnect mains power before making any electrical connections.
Can I receive an electric shock?
It is highly unlikely to receive a dangerous electric shock from the low-voltage 12V DC output side of the power supply.
Always complete your wiring first and only connect the power supply to the mains once all connections have been checked.
Can LED Modules be used outdoors?
Yes, provided you choose waterproof LED Modules with the appropriate IP rating and install them using suitable waterproof connections and power supplies.
Always check the IP rating of the specific module before outdoor installation.
Can I cut or separate the LED Modules?
Yes. LED Modules are connected by wires and can be separated between each module to suit your installation.
Do not cut through the module itself.
How are LED Modules mounted?
Most LED Modules feature high-strength double-sided adhesive tape on the back.
For added security, particularly outdoors or in warm environments, screws, cable ties or silicone adhesive may also be used.
Can LED Modules be dimmed?
Yes.
LED Modules can be dimmed using a compatible 12V PWM LED Dimmer.
Always ensure both the dimmer and power supply are correctly rated for the total wattage of your installation.
How far apart should LED Modules be spaced?
Spacing depends on the module’s beam angle, brightness and the depth of your sign or lightbox.
As a general guide:
- 60–100mm spacing for shallow channel letters
- 100–150mm spacing for deeper lightboxes
For the most even illumination, we recommend testing the layout before permanently mounting the modules.
Essential Components
Colours & Diagrams
Professional Module Light Supplier
LEDZ have been a top LED Module supplier since 2010. Our high-quality LED modules are Inection Moulded, designed for bright, uniform illumination in signage and lightboxes. Fitted with High Efficient Epistar LED chips made in Taiwan, our modules deliver excellent brightness and High Colour Consistency (MacAdam 4) and backed by a 5 Year Warranty.

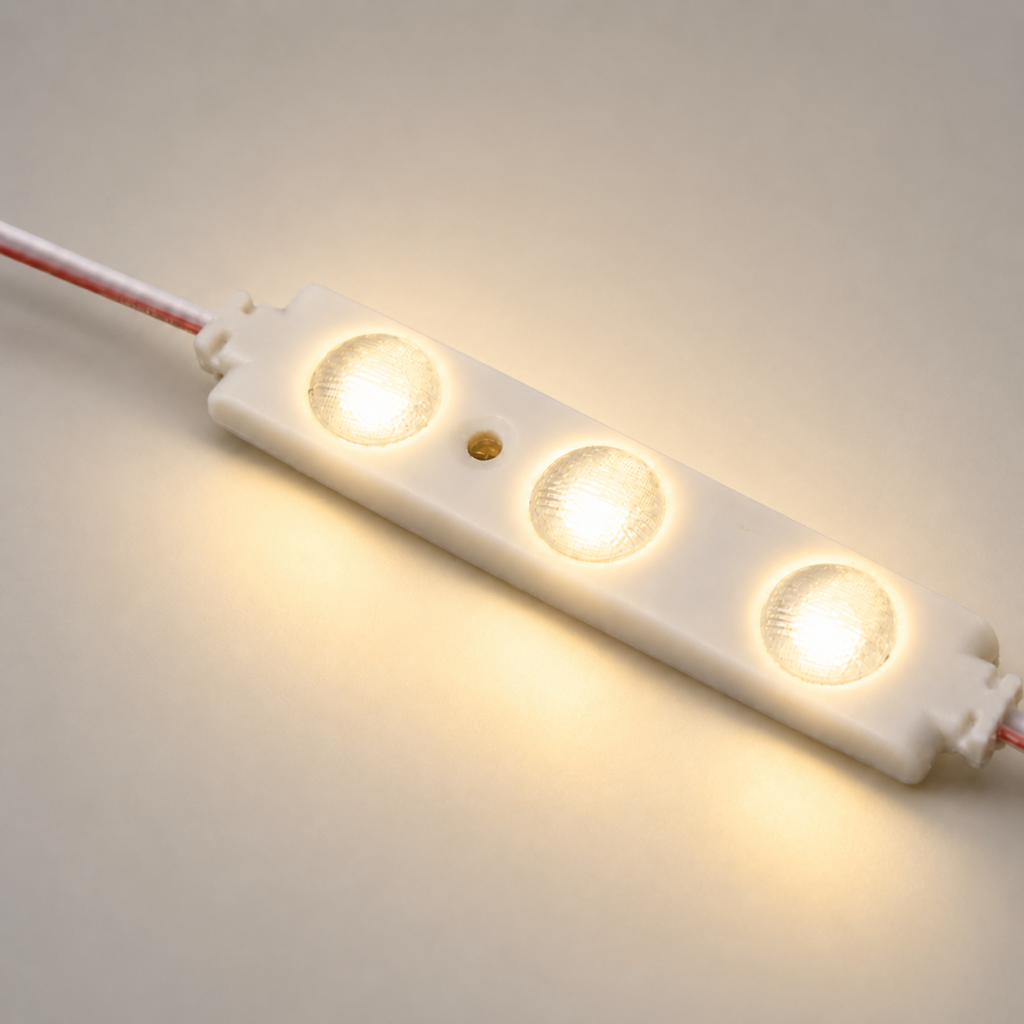

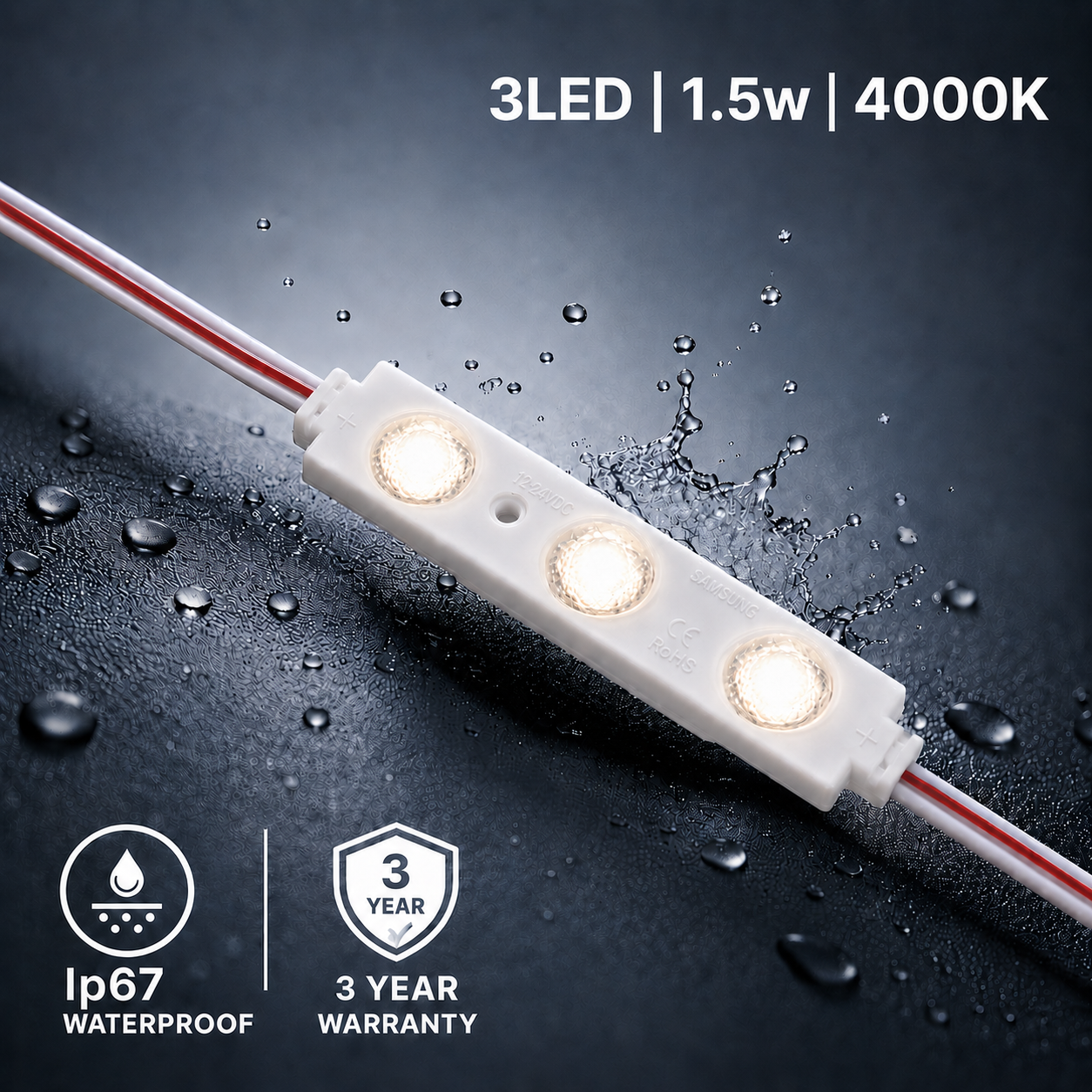

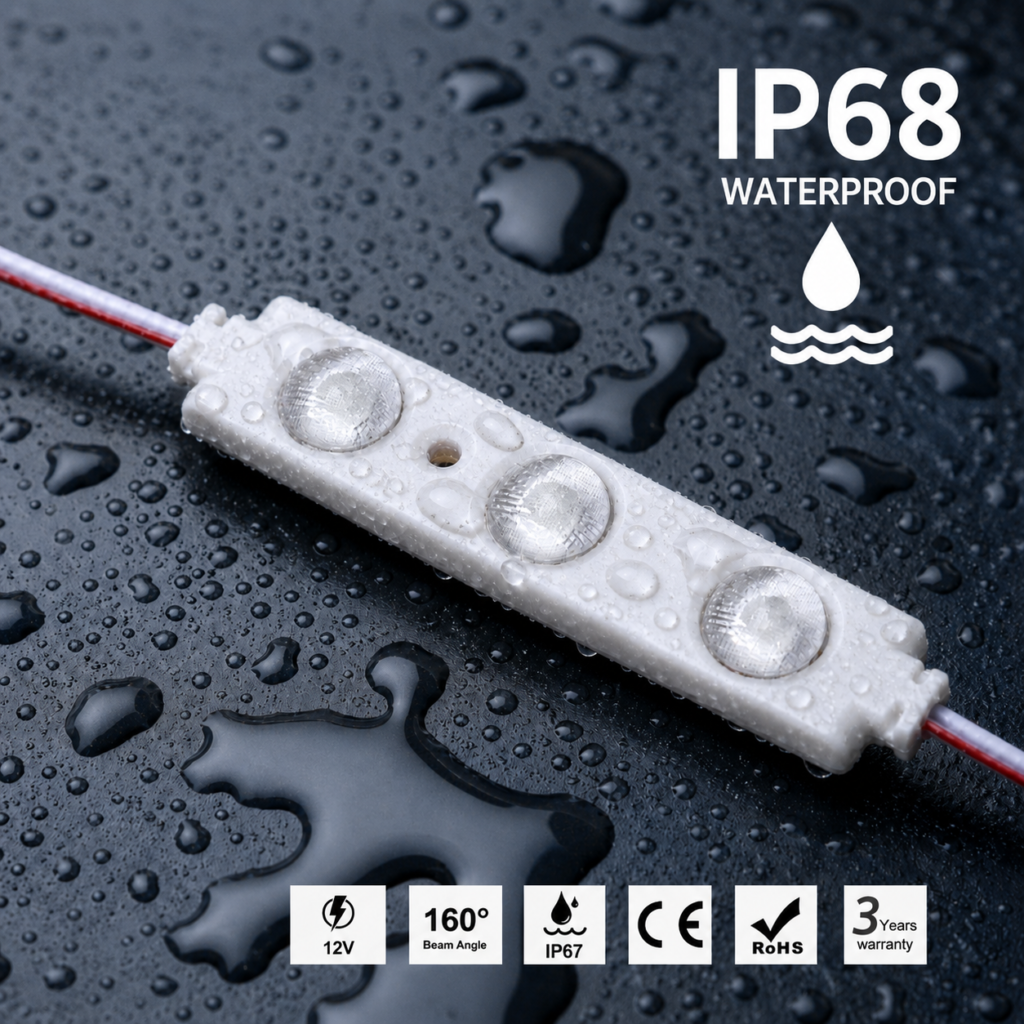

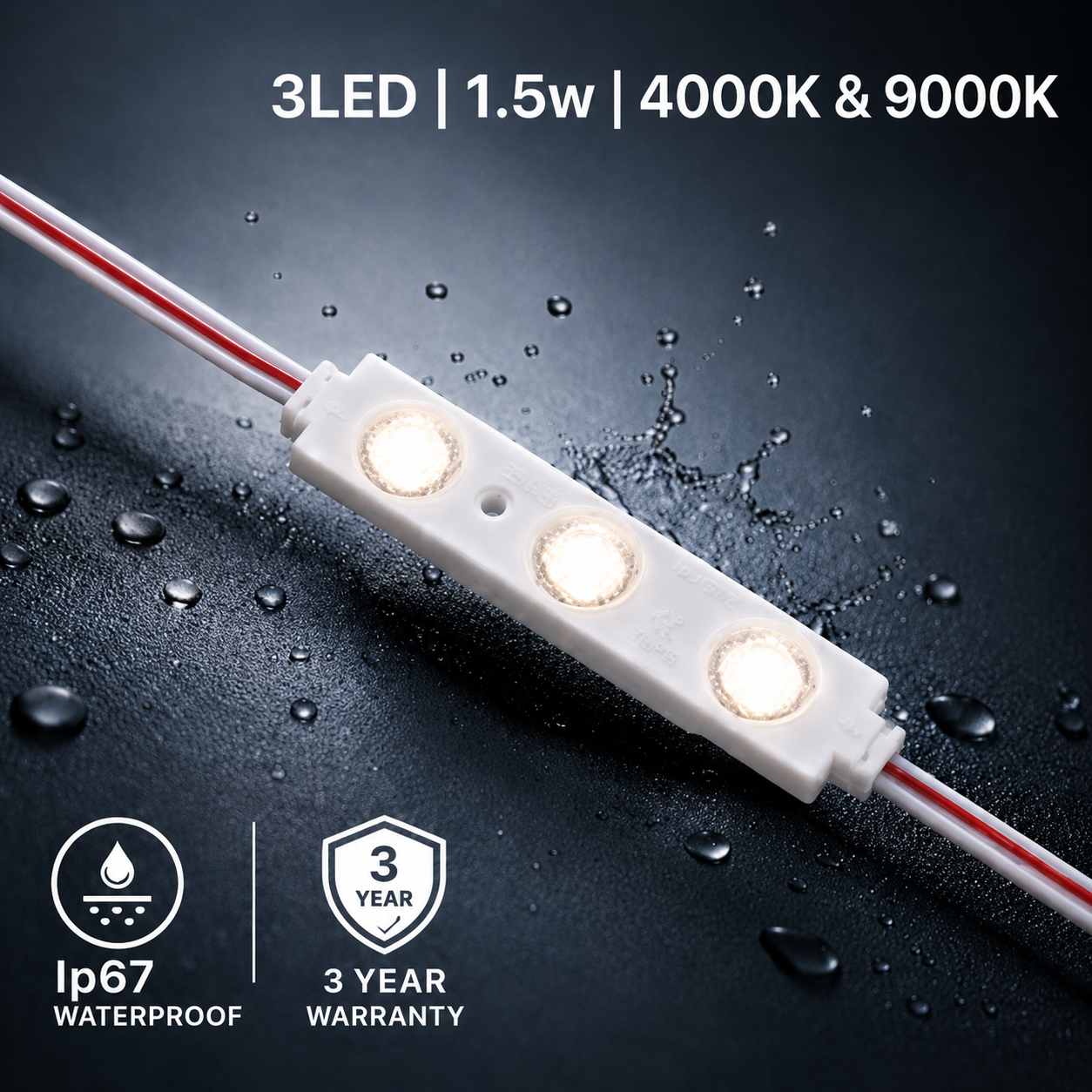

3LED Module 160° 2835 Chip Back Lit
Module Light Specifications:
| LED Type | Qty | Volts | Watts | Color | Angle | Driver | Size | Lumens | Mount | Warranty |
|---|---|---|---|---|---|---|---|---|---|---|
| Back Lit | 3 | 12V | 1.5W | 4000K | 160° | 12V | 72×18.5×9.7mm | 150 | VHB+Screw | 3 Years |
LED Module Dimensions:
LED Module Features
- High Efficiency 2835 LED, Up to 98lm/W
- Special polycarbonate lens – light transmittance > 88%
- Wide 160° beam for even light spread
- IP67 waterproof for indoor & outdoor use
- Light decay < 30% after 50,000 hrs
- LM80 international certificate for LEDs
- High Color consistency (MacAdam 3) (one bin)
- Colour Rendering Index (CRI) >80
- Easy install with 3M tape
- 3-year warranty

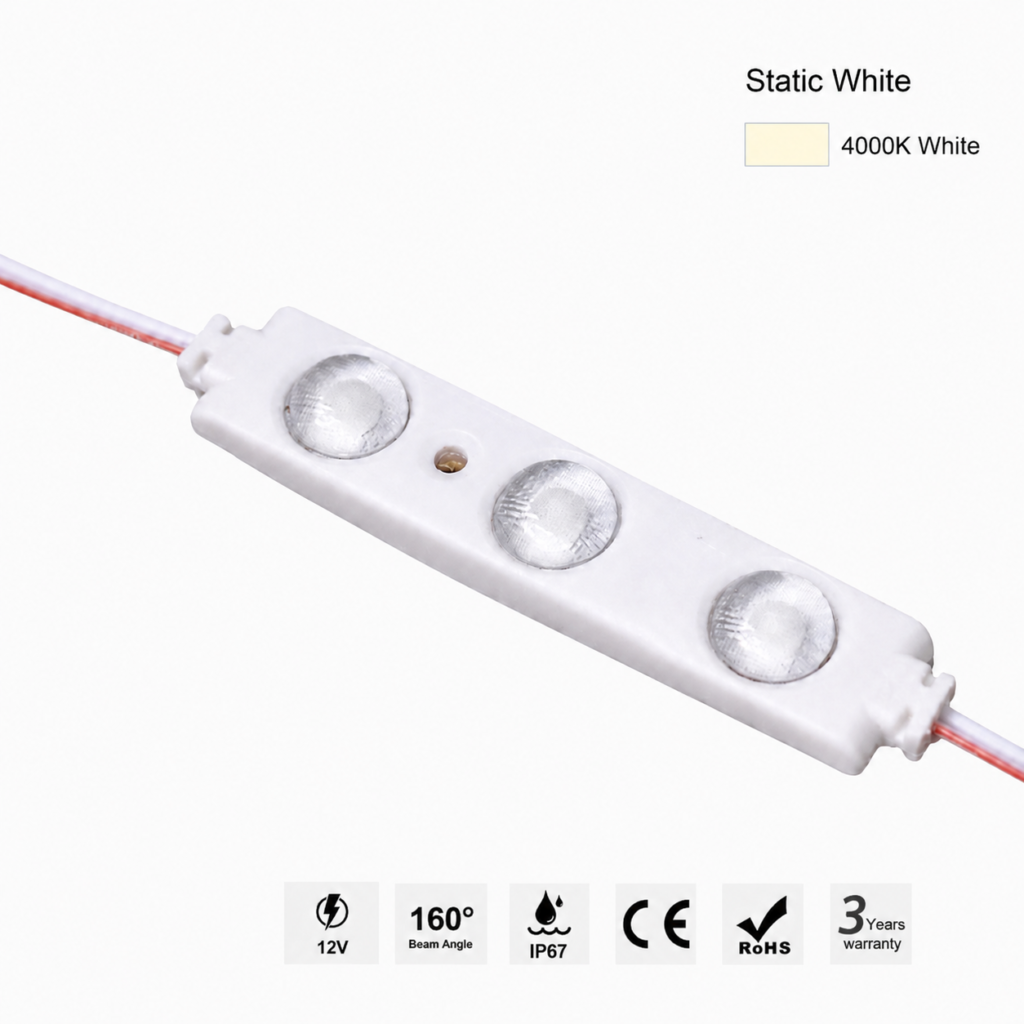

Color of LED Module

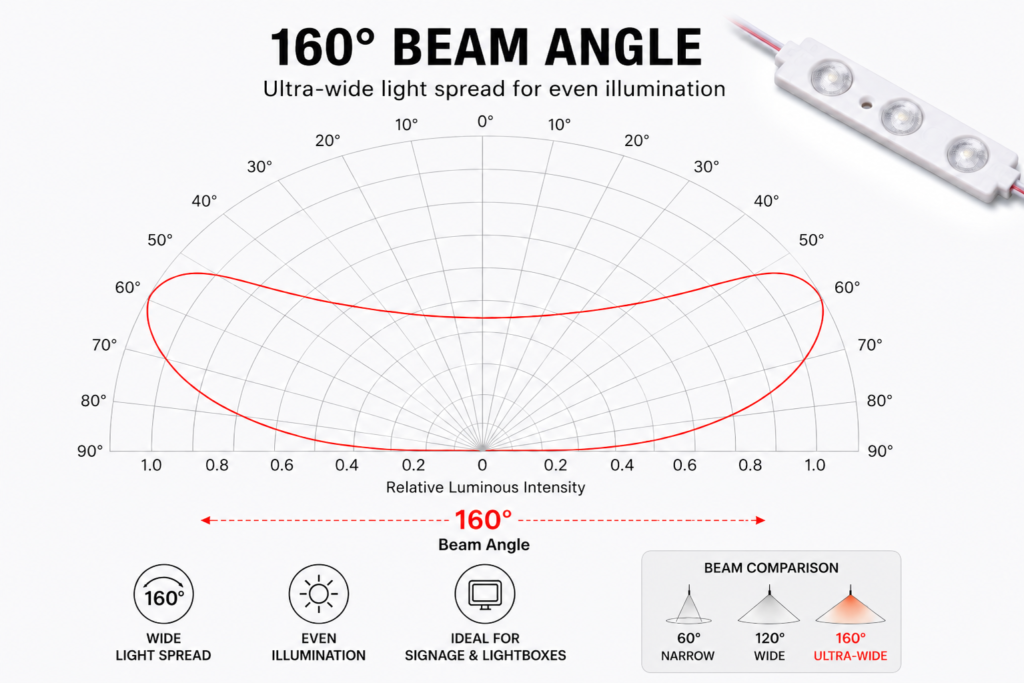

LED Module Distribution Graph

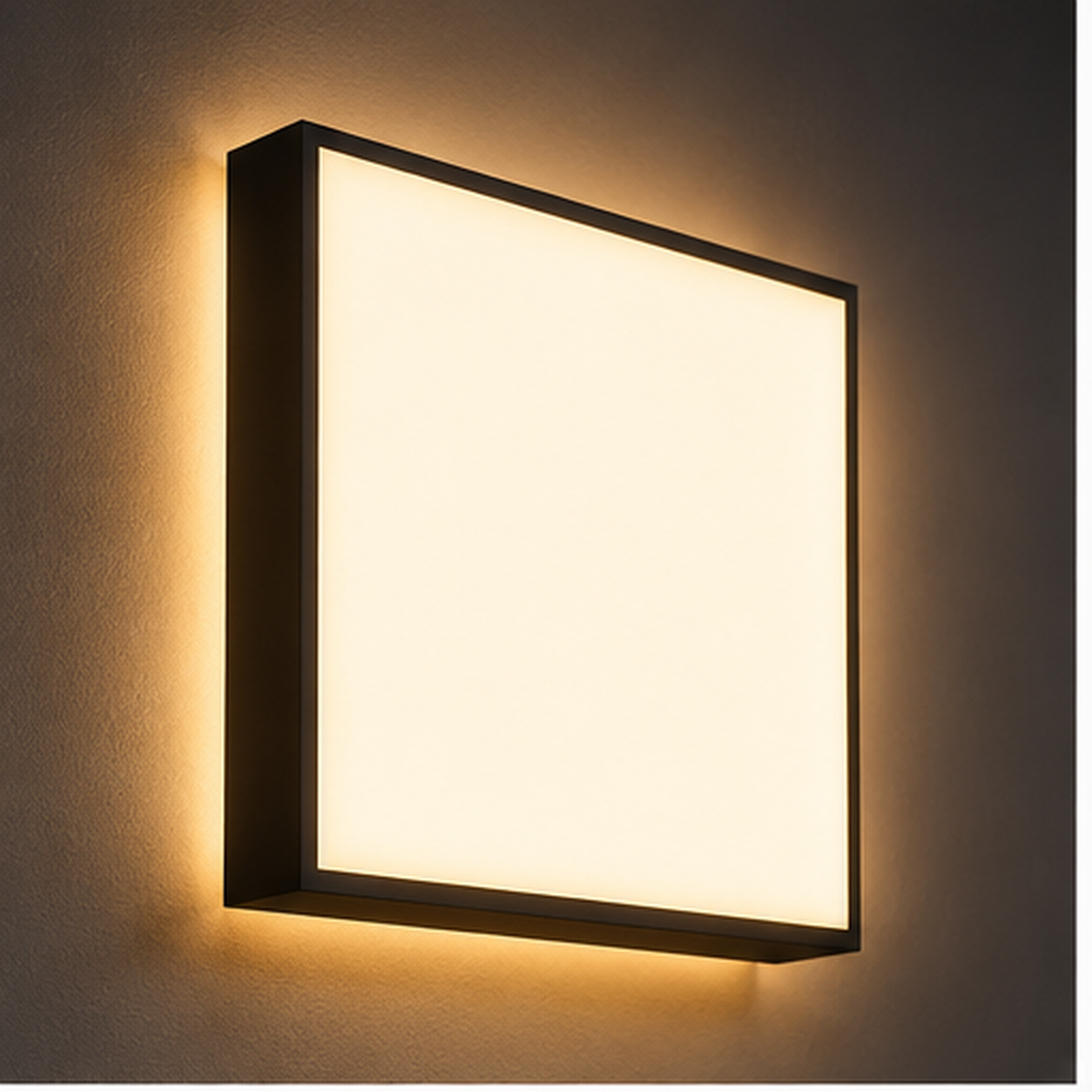

LED Module Applications

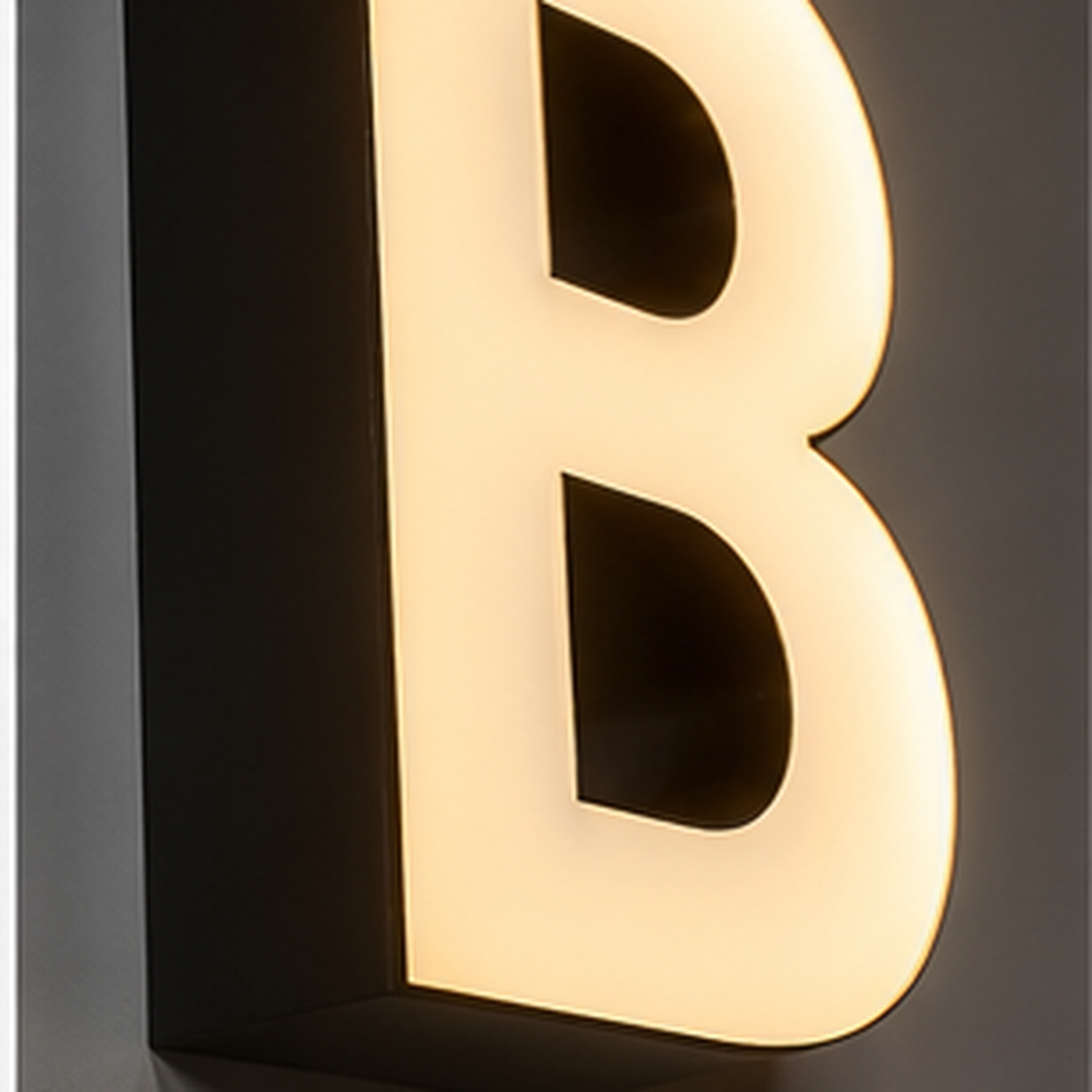

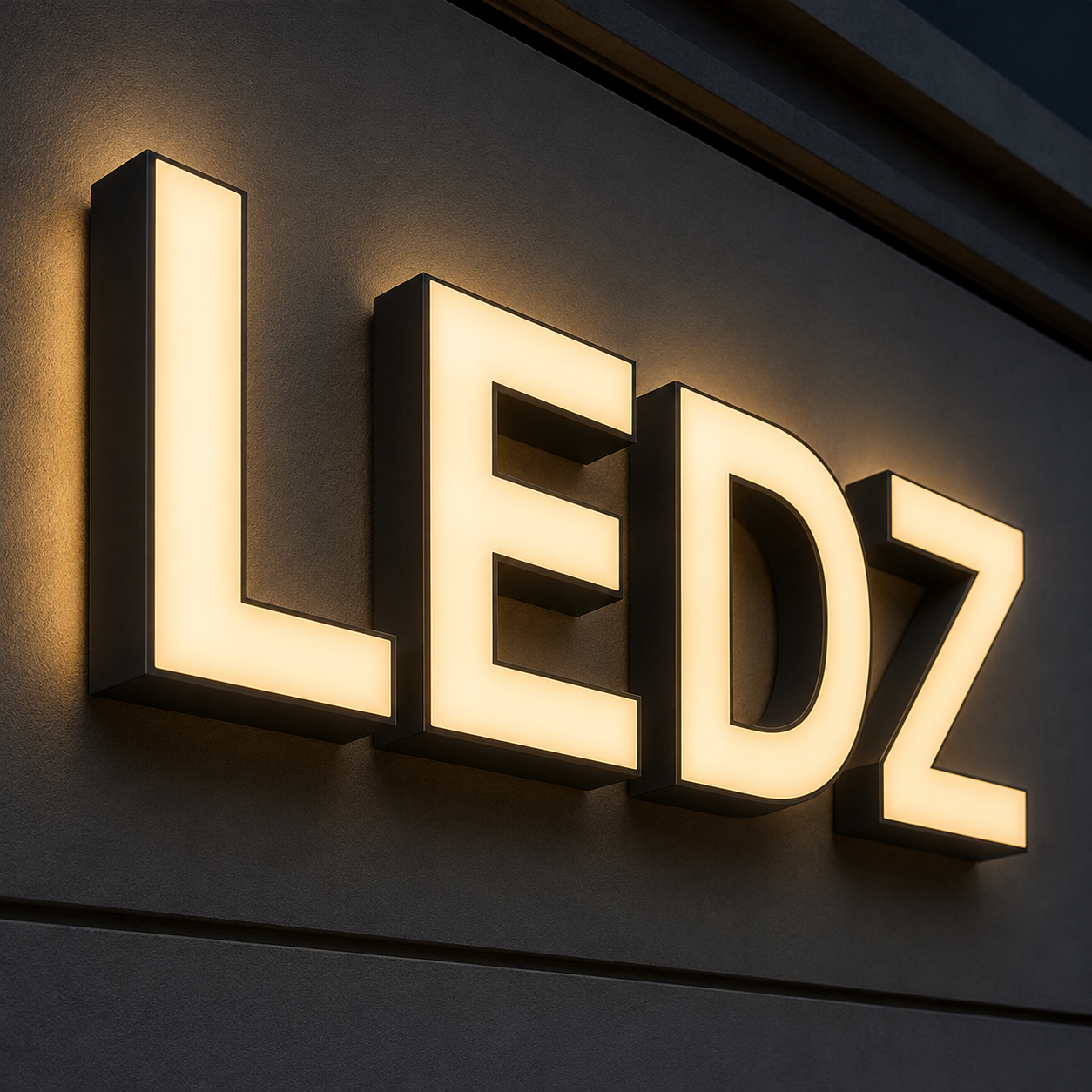

Signage & Channel Letters
LEDZ LED modules are the perfect solution for illuminating signage and channel letters.
Retail & Display Lighting
From shopfront windows to exhibition stands, LEDZ modules provide vibrant, eye-catching illumination that helps products and displays stand out.
Decorative Lighting
Add a modern, creative touch to any space with LEDZ LED modules—perfect for both residential and commercial decorative installations.

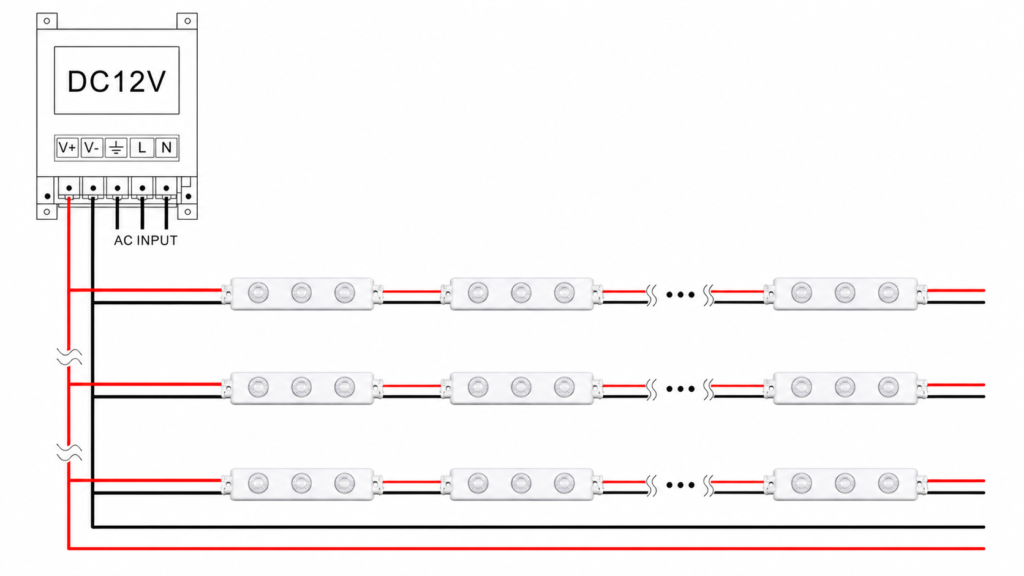

LED Module Installation
Max. number of modules in one chain when the power supplied from single end -20pcs
Popular Backlit Modules
 |  |  |
| 3LED 2835 1.5W Module | 3LED 2835 1.5W Module 175° | 4LED 2835 0.72W Module |

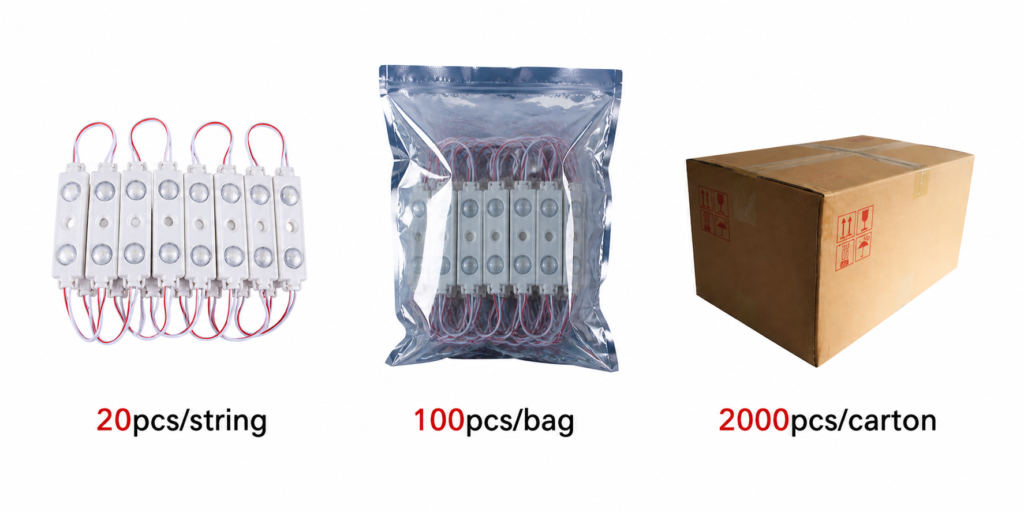

LED Module Package
LED Module FAQ
How many modules are typically in one string?
Our LED module is 20 modules per string, making installation much easier.
What colors are available for LED modules?
Can modules handle heat?
Can modules be dimmed?
Specifications
