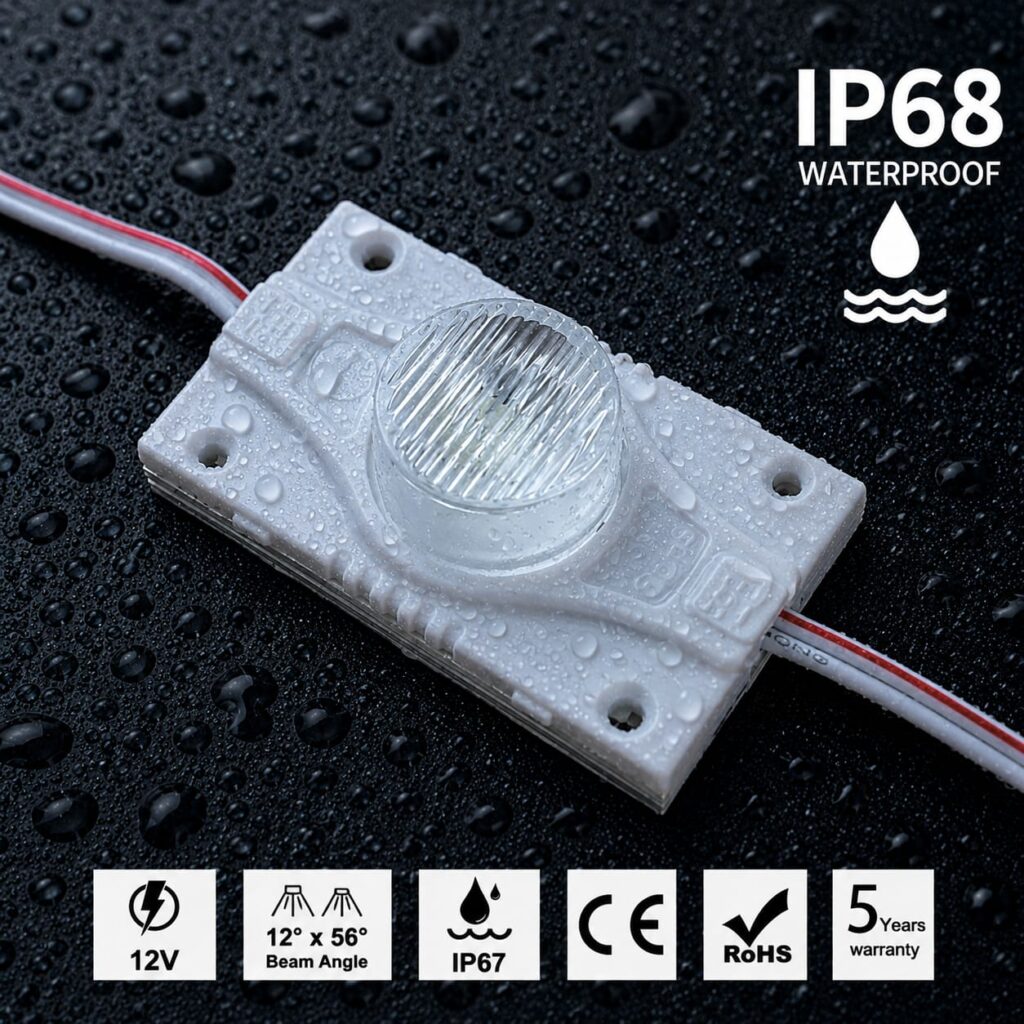

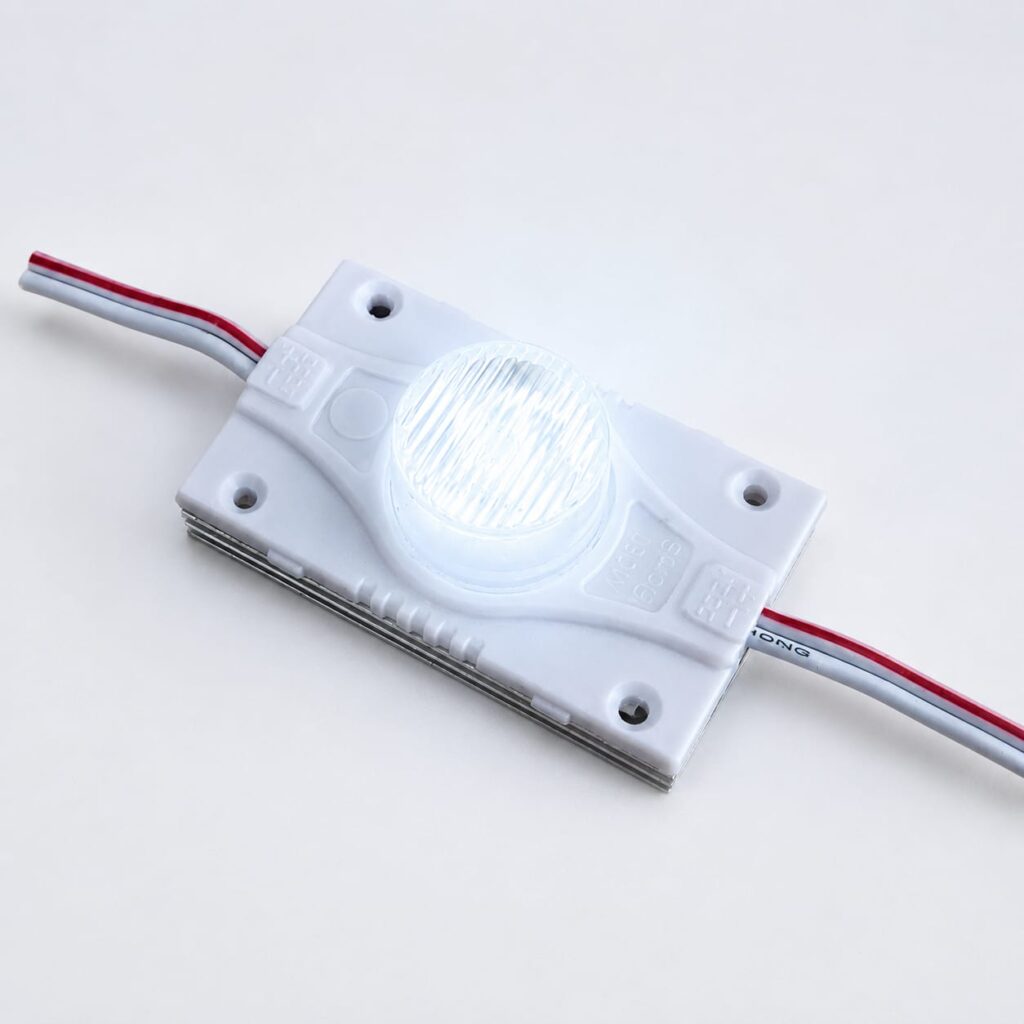

LED Module / Edge-Lit / 12°×56° / 3W / 12V / 6500K White / 5 Year Warranty
Deliveries
- FREE Deliveries to all Signage Companies in S.A
Where can I be used…

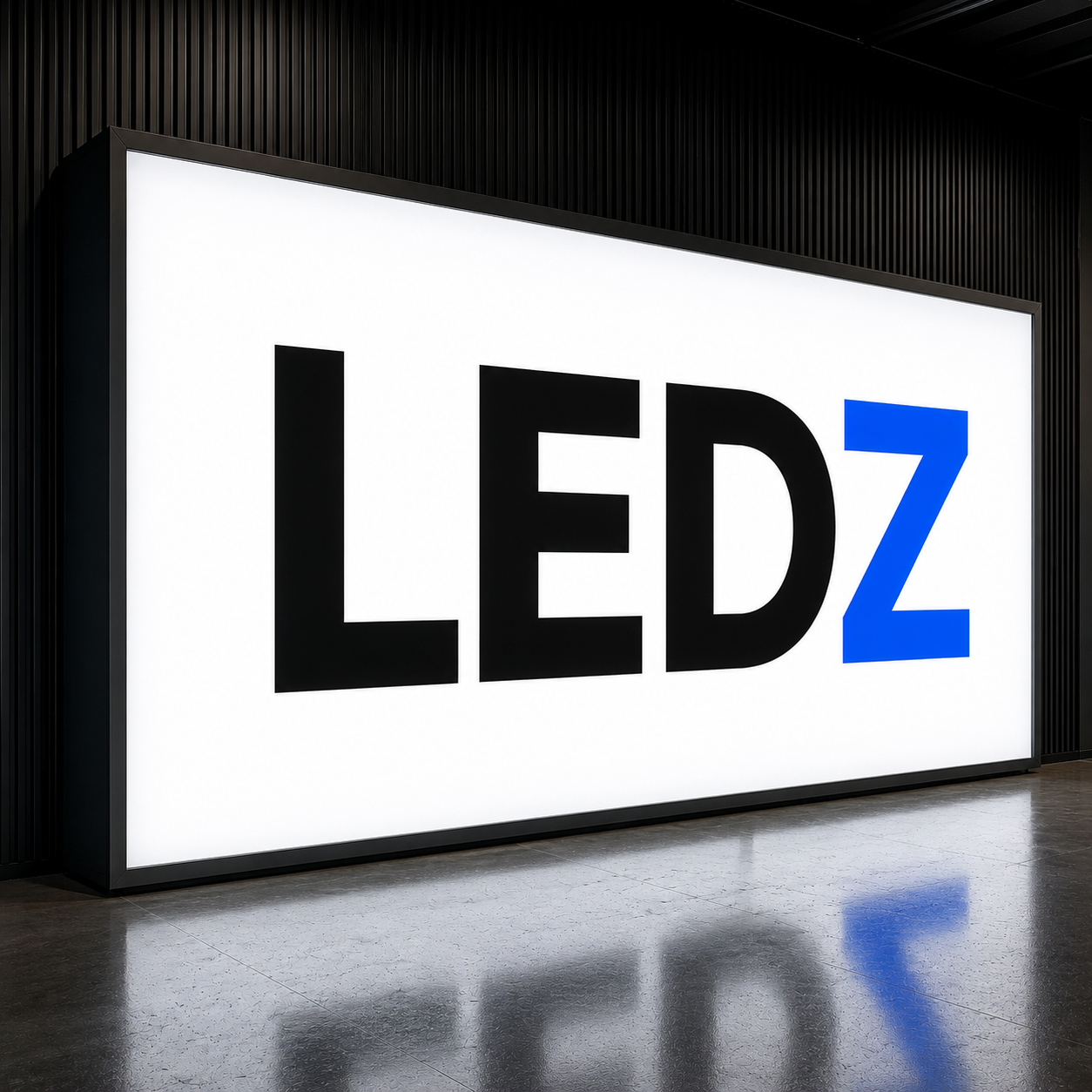

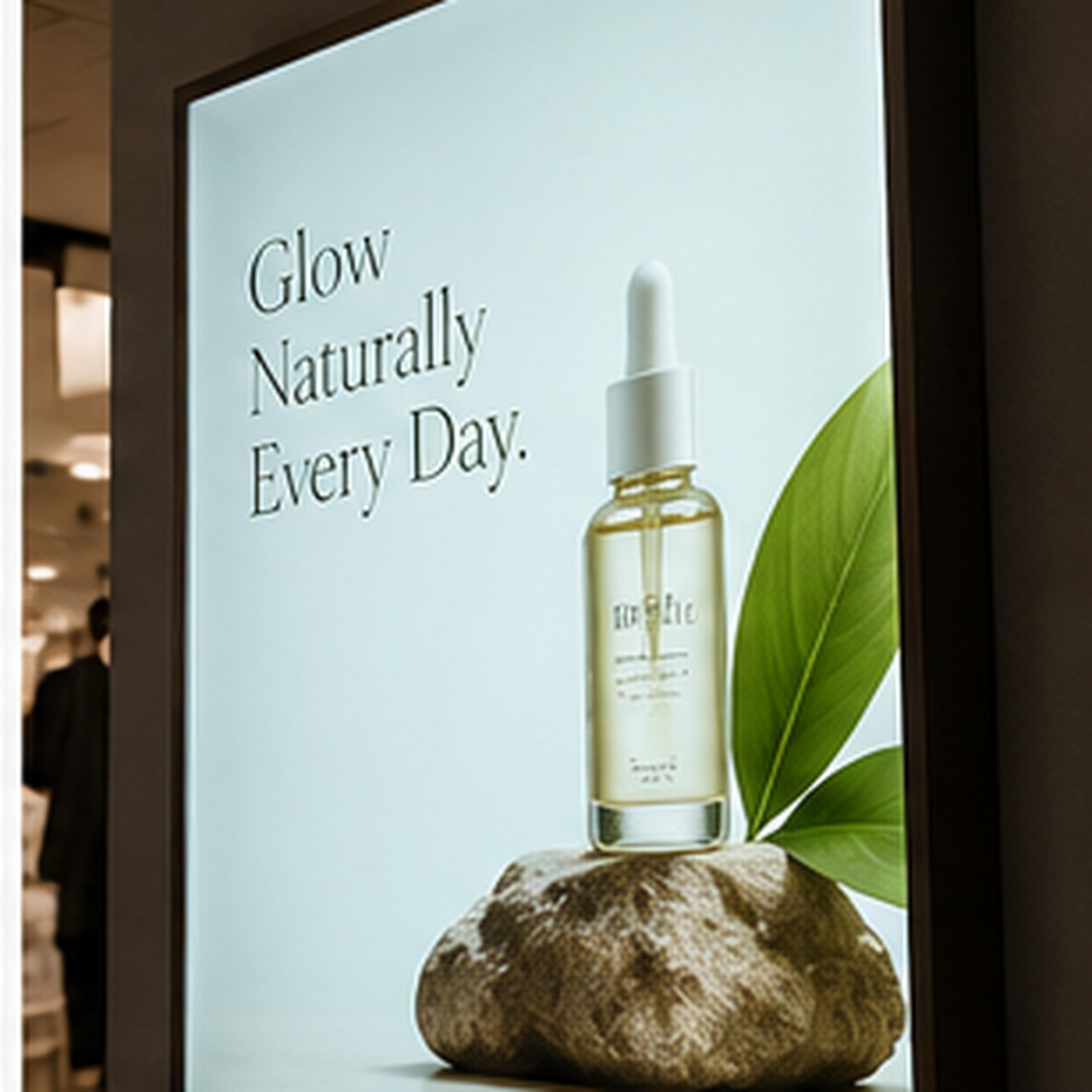

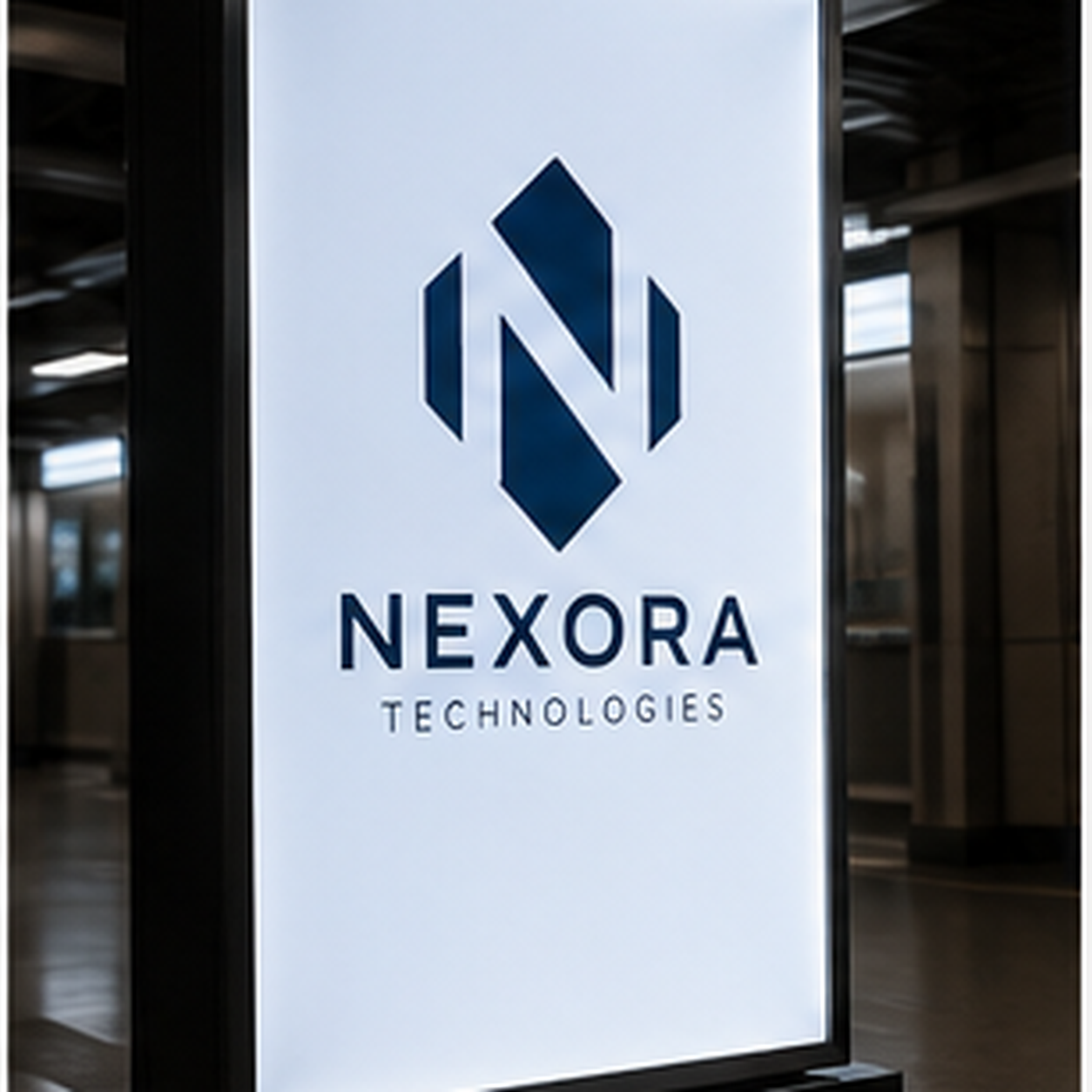

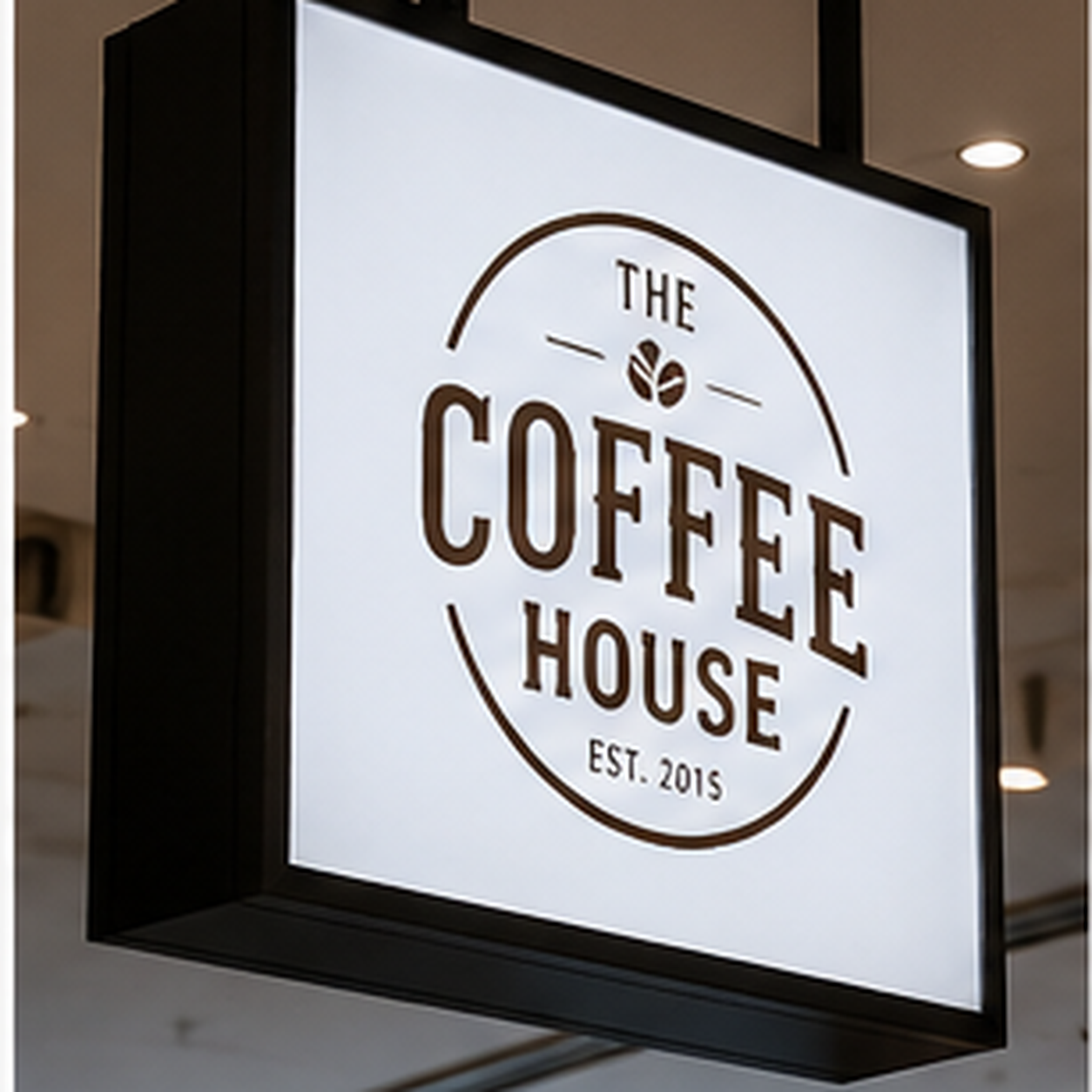

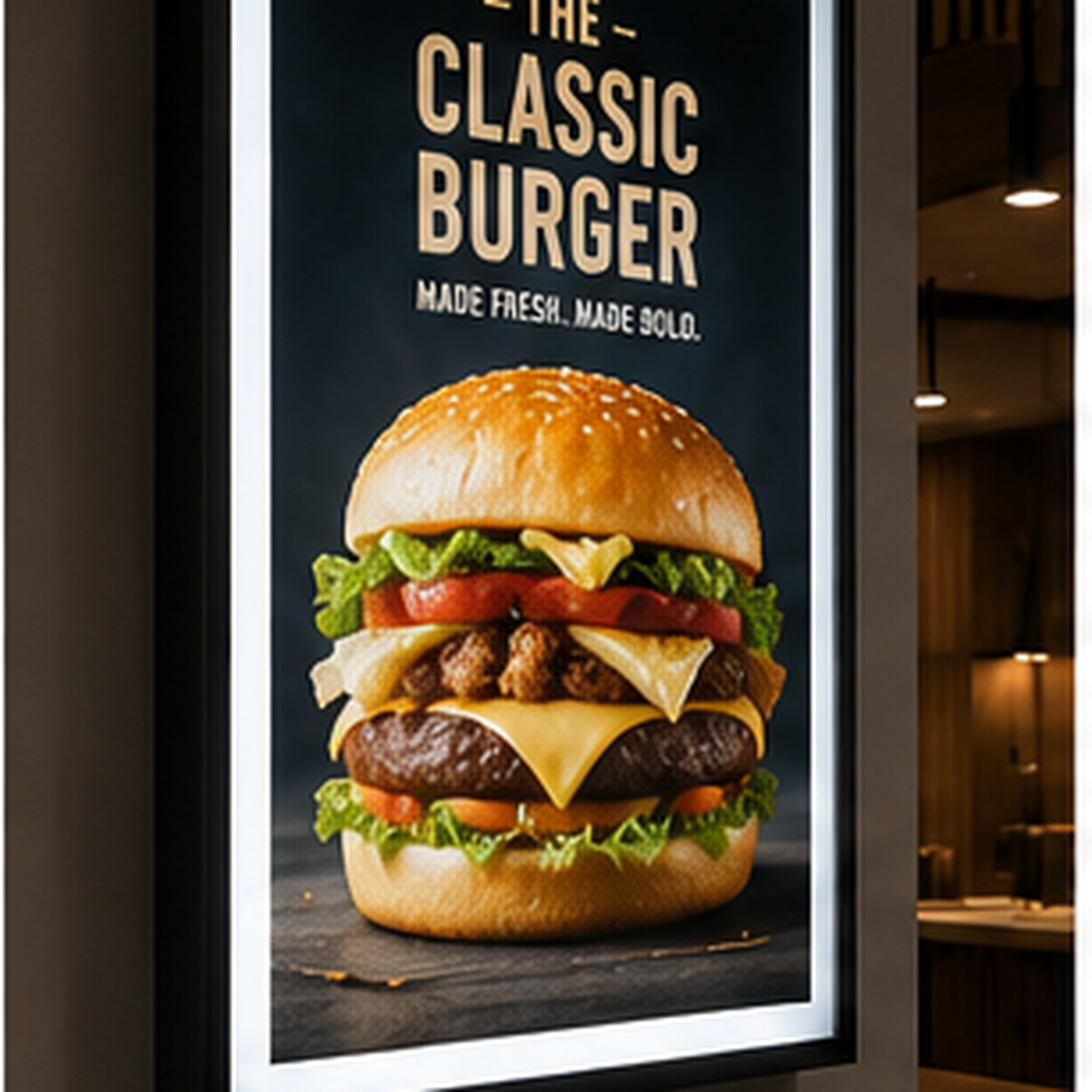

Edge lighting for large acrylic panels and lightboxes, Menu boards, display cases, and retail signage, Architectural features, illuminated signs, and decorative panels

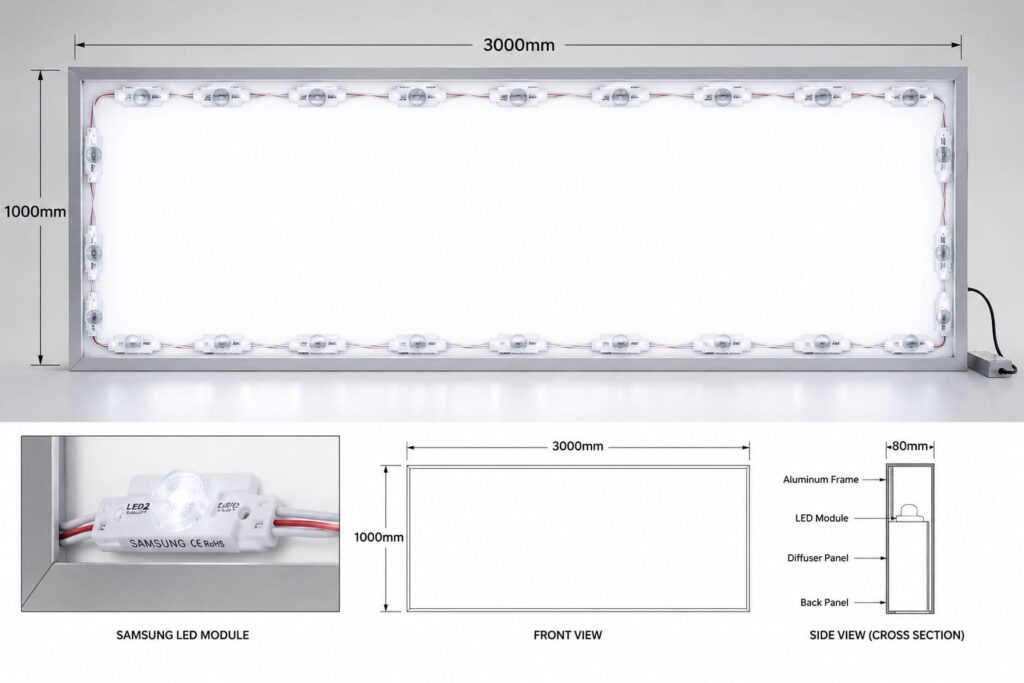

Side/Edge-Lit Light Boxes (150mm Deep)
Max. Box Height: 2000mm (Top & Bottom)
Why use me?
Powerful 3W output for bright, uniform edge illumination
Designed with precision optics to light acrylic or glass panels evenly
Ideal for slim, space-saving installations without hot spots
Online Price:
Original price was: R52.00.R47.00Current price is: R47.00. Vat Incl.
392 in stock (can be backordered)
Product Details
Specifications
| Input | 12 Volt DC |
| Power | 3 Watt |
| Current | 0.25A |
| Lumens | 240 Lumens |
| Colour Temp | 6500k |
| Qty LED Chips | 1 |

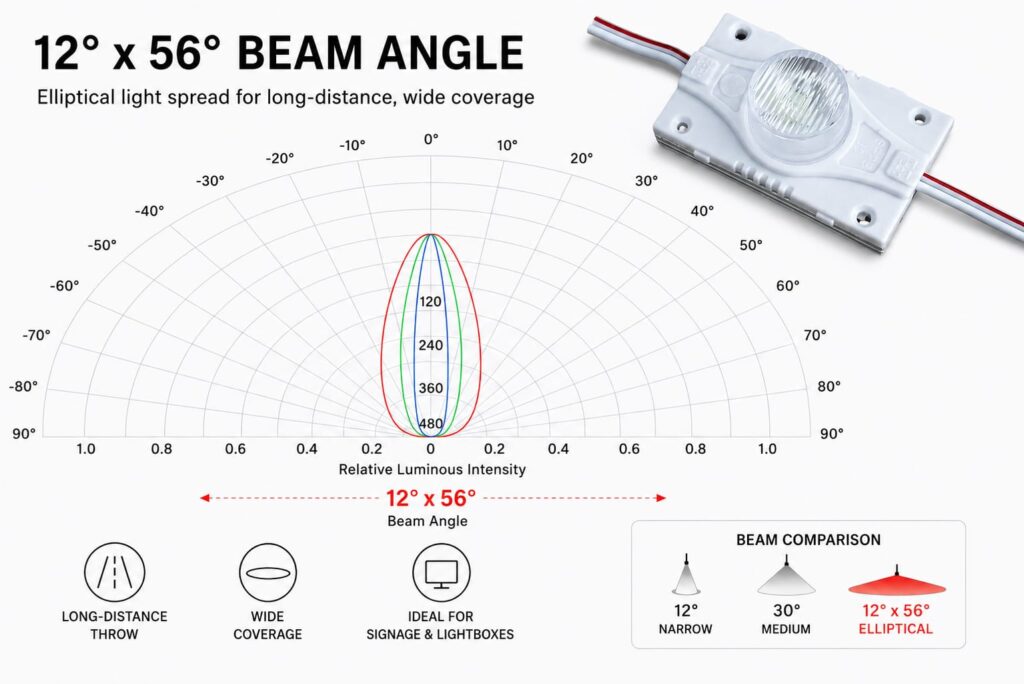

| Viewing Angle | 12×56 ° Angle |
| Dimensions | 72mm x 34mm x 19mm |

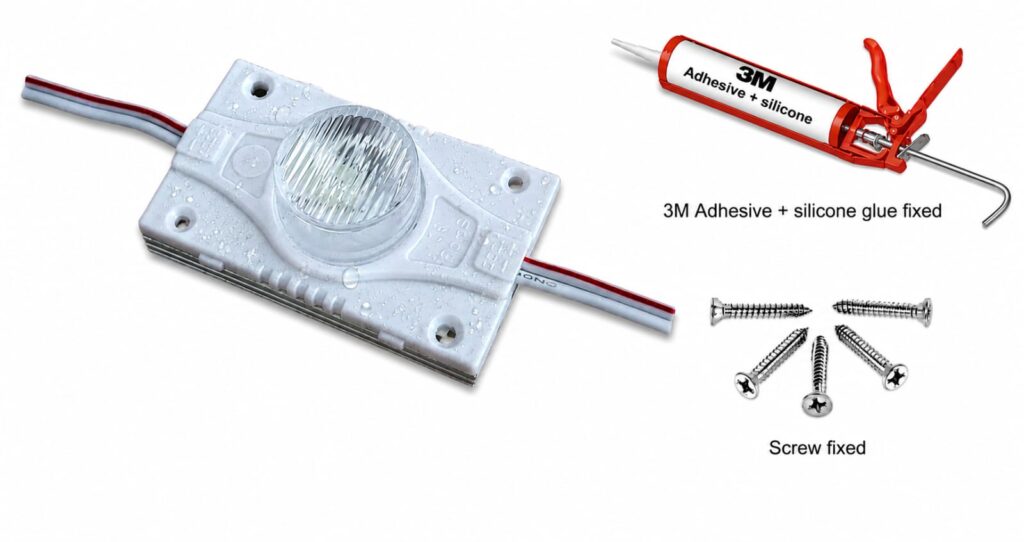

| Mounting | 3M VHB Double Sided Tape or screw mount |
| Wire Length | 120mm |
| Max Ambient Temp | 60° C |
| Waterproofing | (IP67) |
| Warranty | 5 Years |

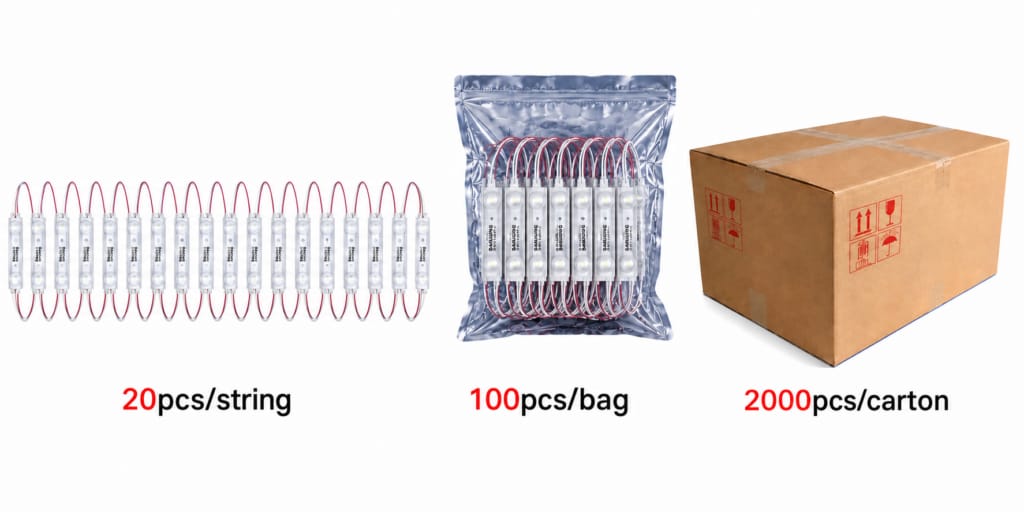

| Max Module | 20 Modules Per String in Series |
| Datasheet |  |
Do's and Donts
Do’s
Do use a regulated 12V DC power supply matched to total wattage
Do mount modules firmly along panel edges for optimal light spread
Do clean surfaces before installation to ensure proper adhesion
Don’ts
Don’t overload the power supply with too many 3W modules
Don’t expose modules to water unless IP65 or higher rated
Don’t bend or stress the modules or wiring during installation

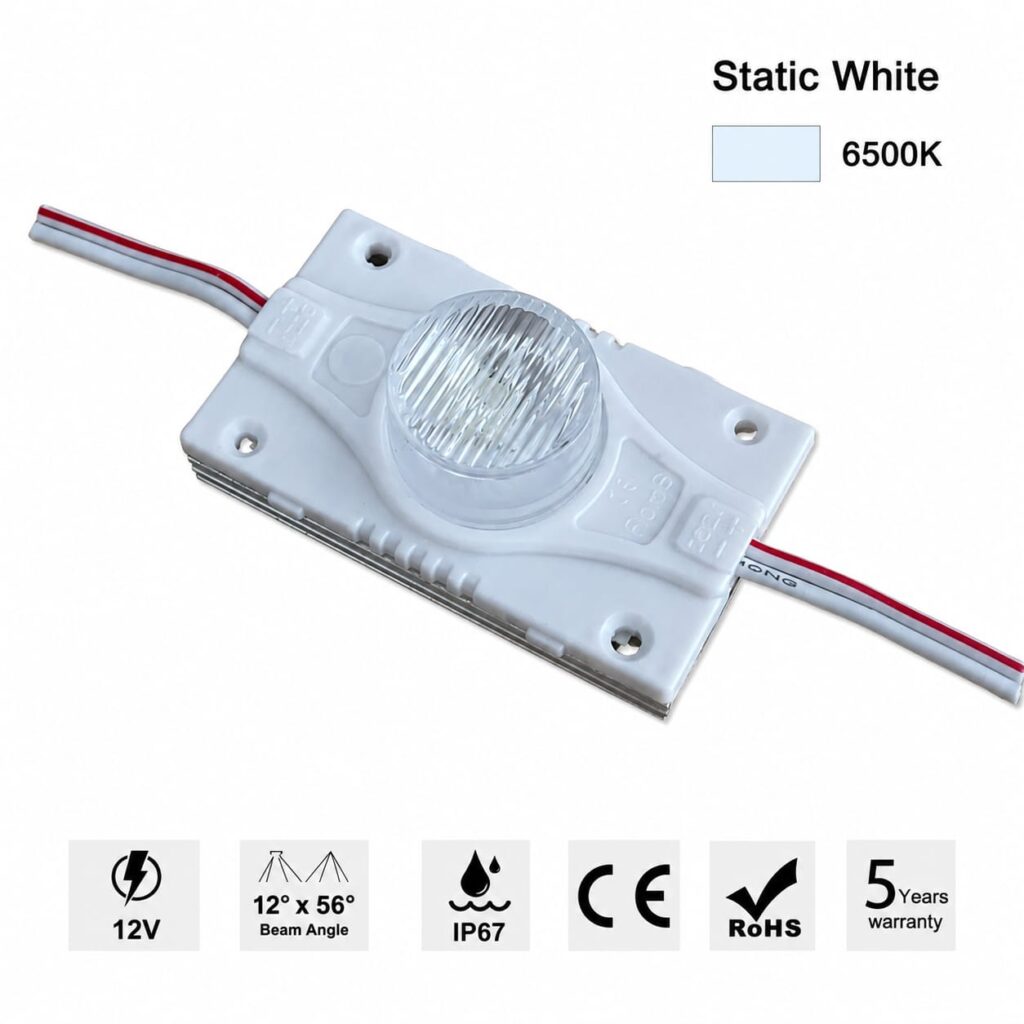

Colour Chart

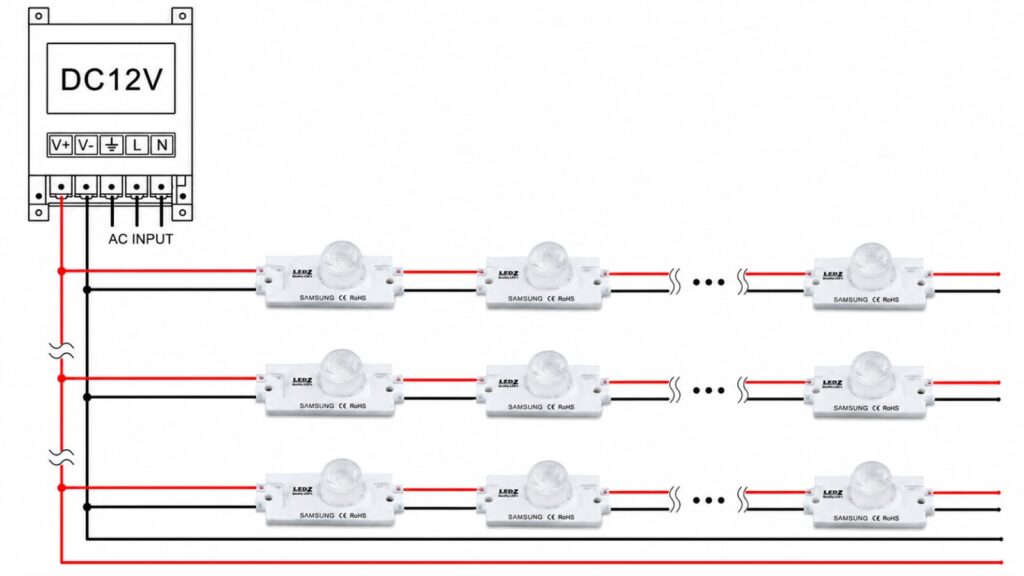

Basic Diagram & Checklist
