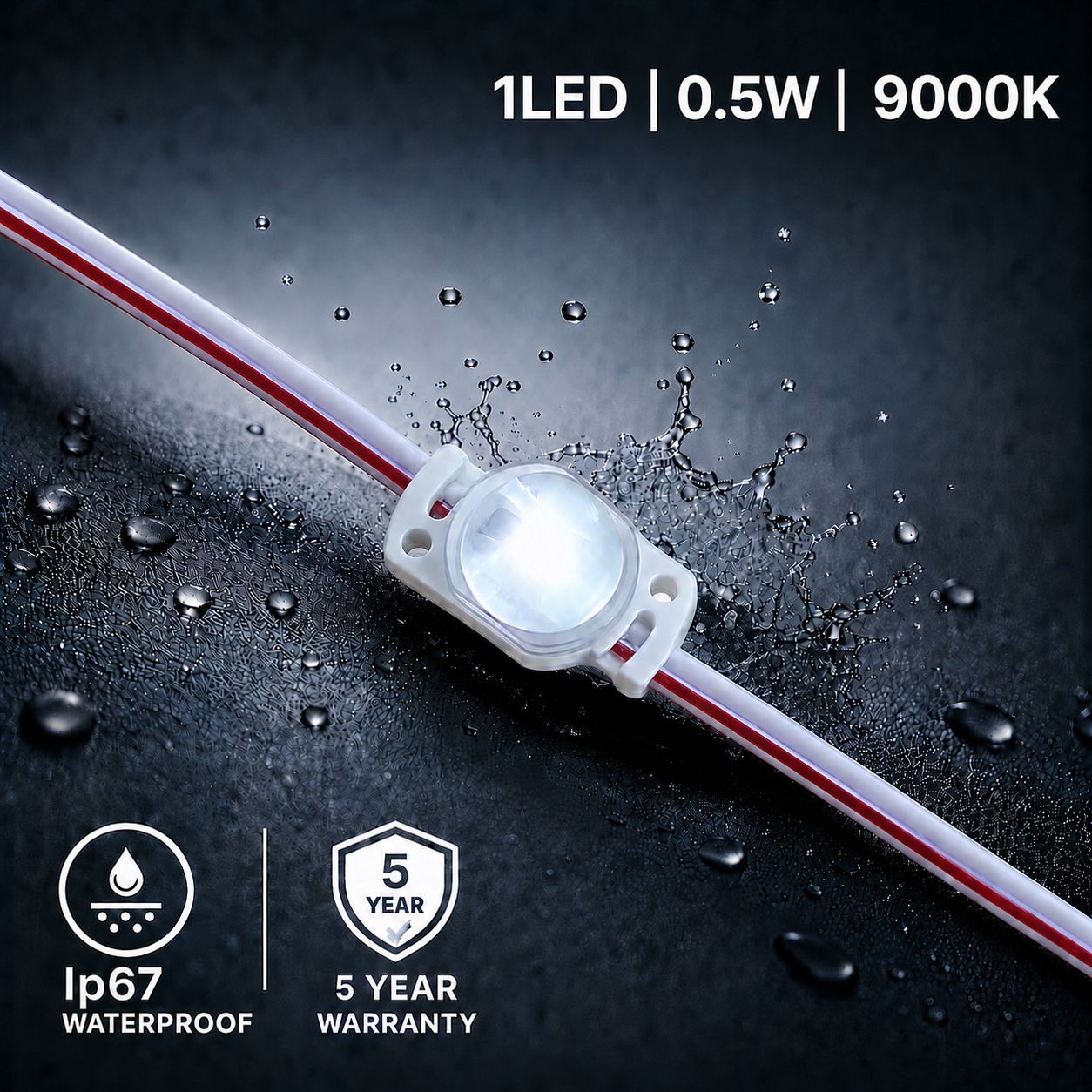

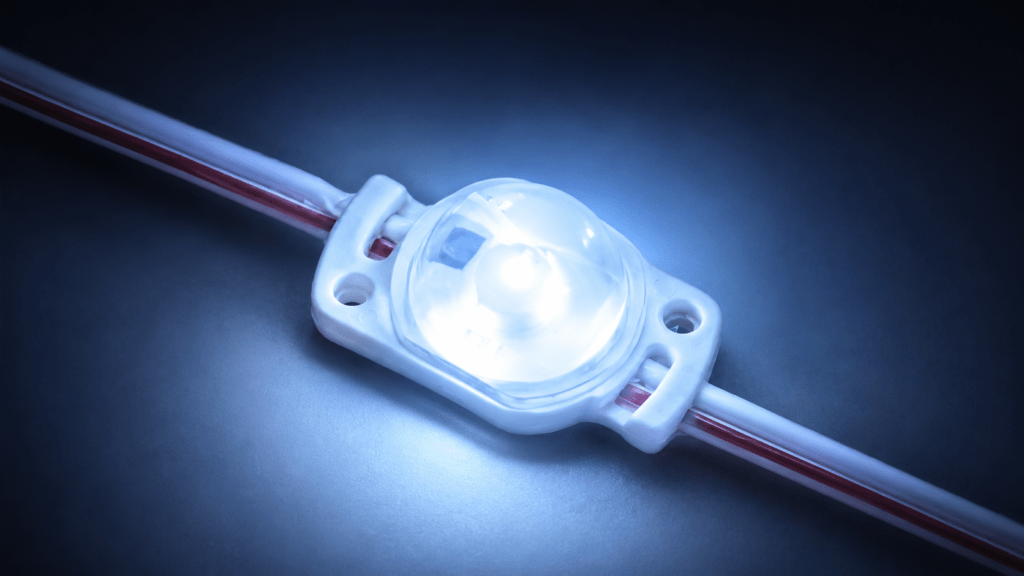

LED Module – 1 Chip / 160° / 0.5W / 12V / 9000K – 11 000K / Ice White / 5 Year warranty
Online Price:
Original price was: R10.00.R9.00Current price is: R9.00. Vat Incl.
944 in stock (can be backordered)
Deliveries
- FREE Deliveries to all Signage Companies in S.A
Where can I be used…

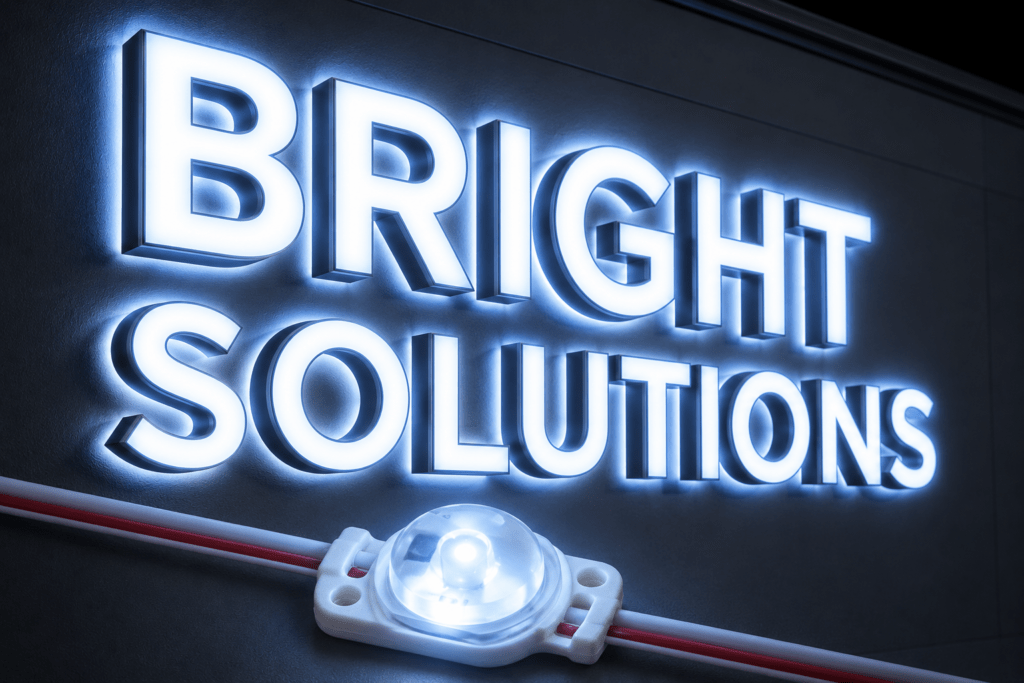

Small channel letters and narrow signage, Accent lighting and detailed display areas, Decorative edge lighting or logo illumination,
Fabricated Letters and Light Boxes (40-100mm deep)
Why use me?
Compact design with powerful 0.5W brightness, ideal for tight or detailed spaces
Single LED ensures focused, directional lighting
Energy-efficient and long-lasting for low-maintenance installations
LED Module – 1 Chip / 160° / 0.5W / 12V / 9000K – 11 000K / Ice White / 5 Year warranty
Online Price:
Original price was: R10.00.R9.00Current price is: R9.00. Vat Incl.
944 in stock (can be backordered)
Product Details
Specifications
| Input | 12 Volt DC |
| Power | 0.5 Watts |
| Current | 0.041A |
| Lumens | 47 Lumens |
| Colour Temp | 9000K-11000K |
| Qty LED Chips | 1 (2835 Chip) |
| Viewing Angle | 160° Angle |
| Dimensions | 19mm x 14mm x 9.7mm |

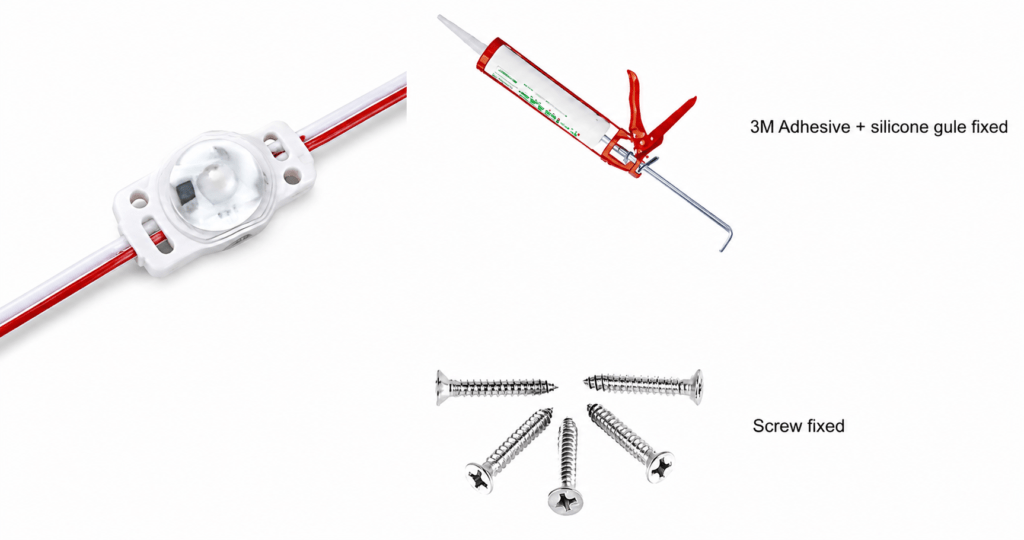

| Mounting | 3M VHB Double Sided Tape or screw mount |
| Wire Length | 100mm |
| Max Ambient Temp | 60° C |
| Waterproofing | (IP67) |
| Warranty | 5 Years |
| Max Module | 20 Modules Per String in Series |
| Datasheet |  |
Do's and Donts
Do’s
Do use a stable 12V DC power supply
Do apply to clean, dry surfaces for best adhesion
Do secure wiring connections to prevent voltage drop
Don’ts
Don’t overload the power supply with too many modules
Don’t use outdoors unless rated for waterproof use
Don’t bend or twist the module during installation
Colour Chart

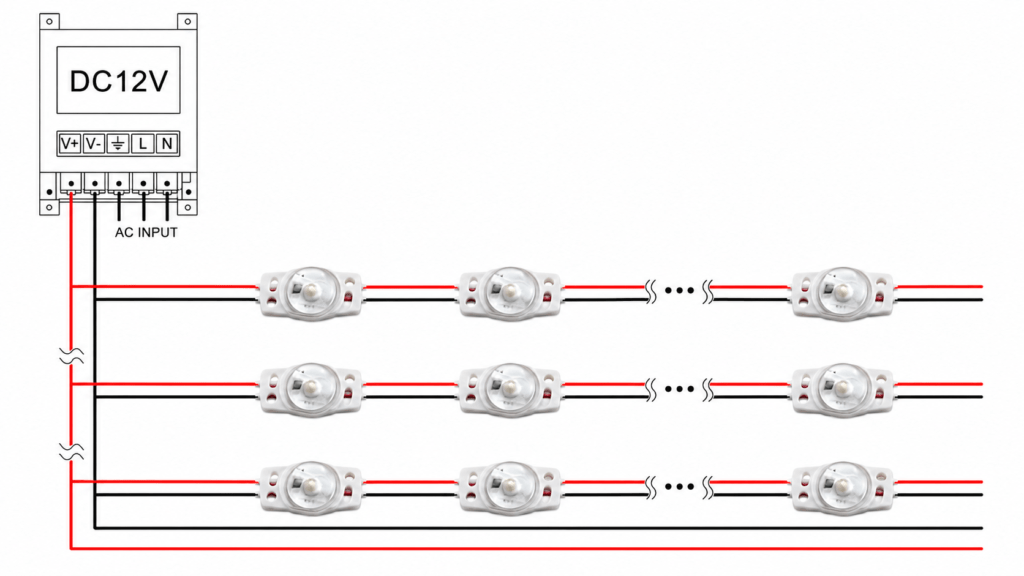

Basic Diagram & Checklist

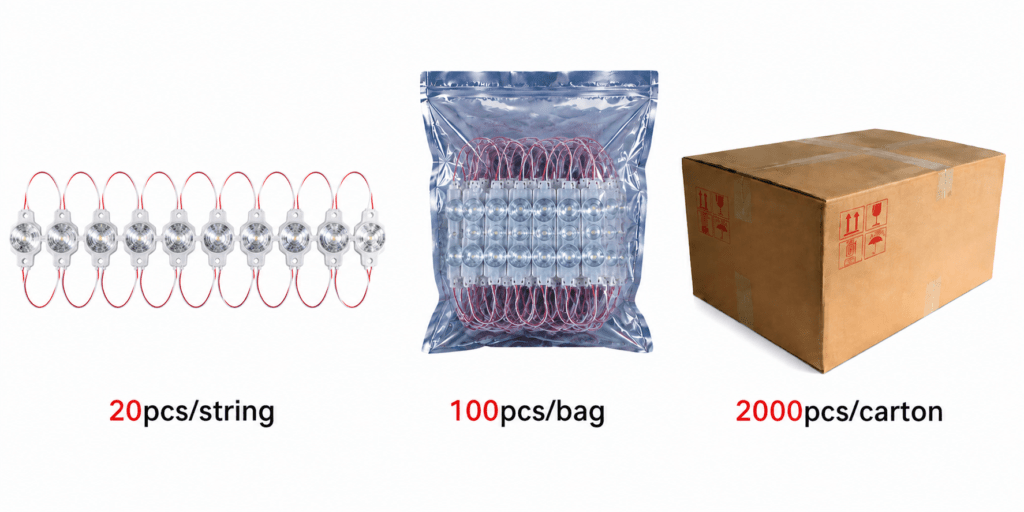

Bulk Pricing
LED Module – 1 Chip / 160° / 0.5W / 12V / 9000K – 11 000K / Ice White / 5 Year warranty
Online Price:
Original price was: R10.00.R9.00Current price is: R9.00. Vat Incl.
944 in stock (can be backordered)
