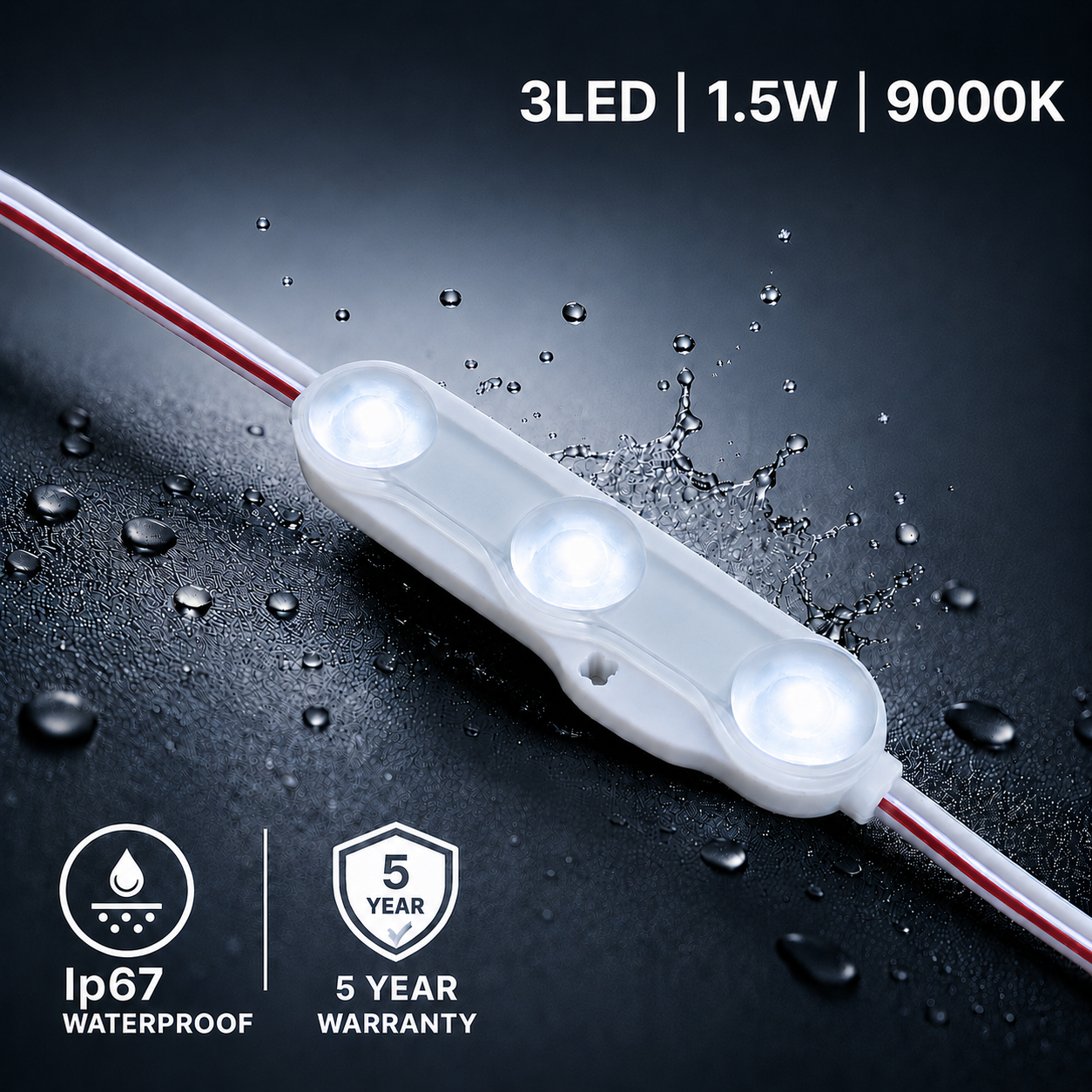

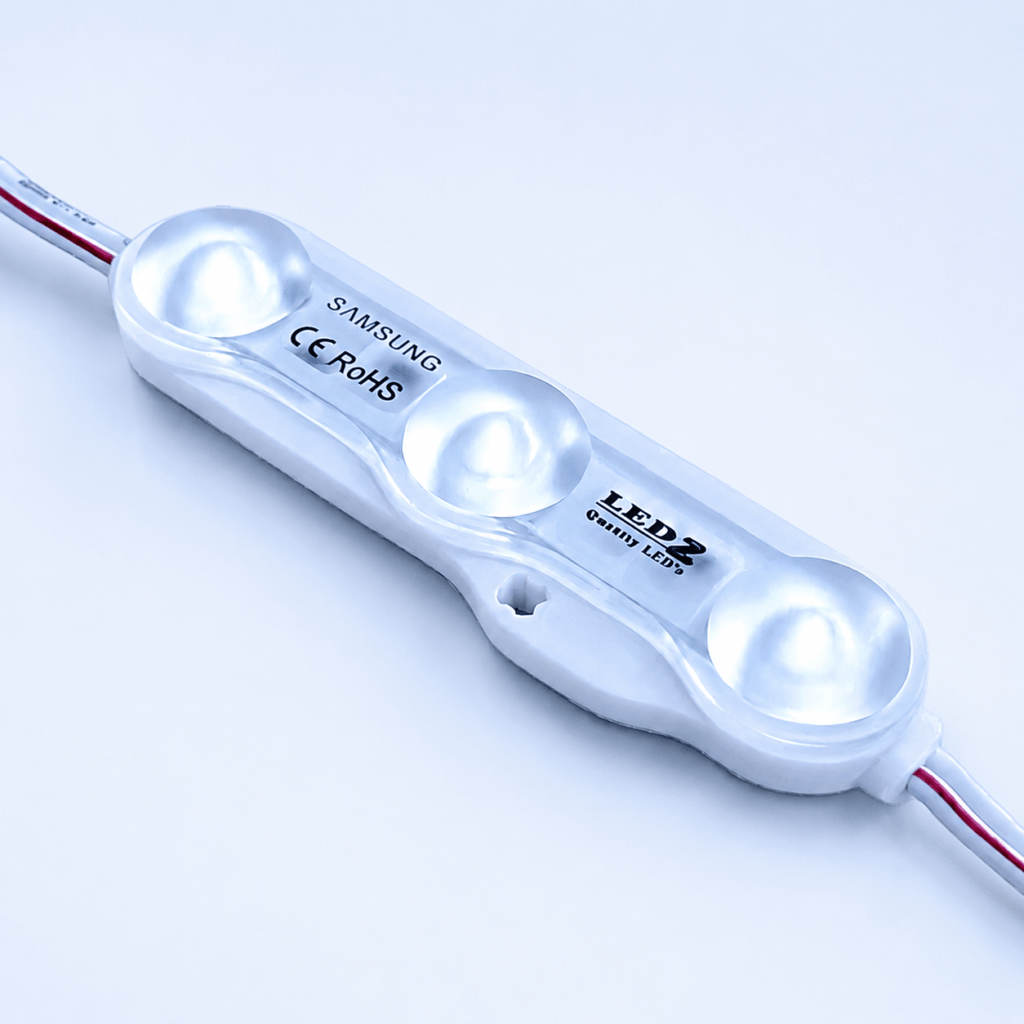

3LED Module 1.5W
APPLICATIONS
Fabricated Letters and Light Boxes (50-150mm deep)
- High Quality Samsung LED Chips
- 160° Bat-Wing Optic Lens Design
- Injection Moulded (IP67)
- Colour Consistency (MacAdam 4)
- 5 Year Warranty
R13.74 vat incl.
Unit: Each
4000 in stock (can be backordered)
data-merchantId="10480374">
Bulk Prices
| Bulk Qty’s | Prices / Each (ex vat ) | Prices / Each (Vat incl. ) |
| 200-499 | R10.05 | R11.55 |
| 500-999 | R9.75 | R11.21 |
| >1000 | R9.45 | R10.86 |
Specifications
| Input | 12 Volt DC |
| Power | 1.5 Watt |
| Current | 0.125A |
| Lumens | 145 Lumens |

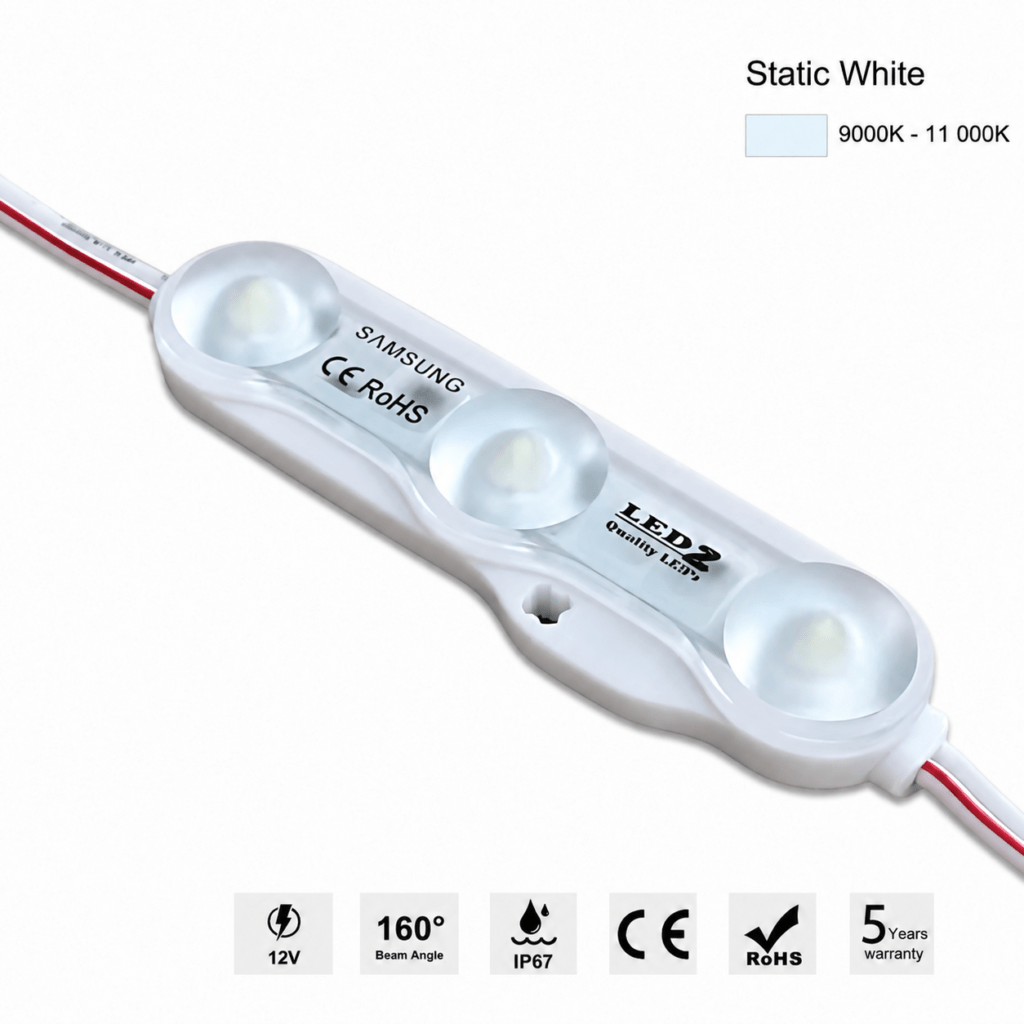

| Colour Temp | 9000K-11000K |
| Qty LED Chips | 3 (2835 Chip) |

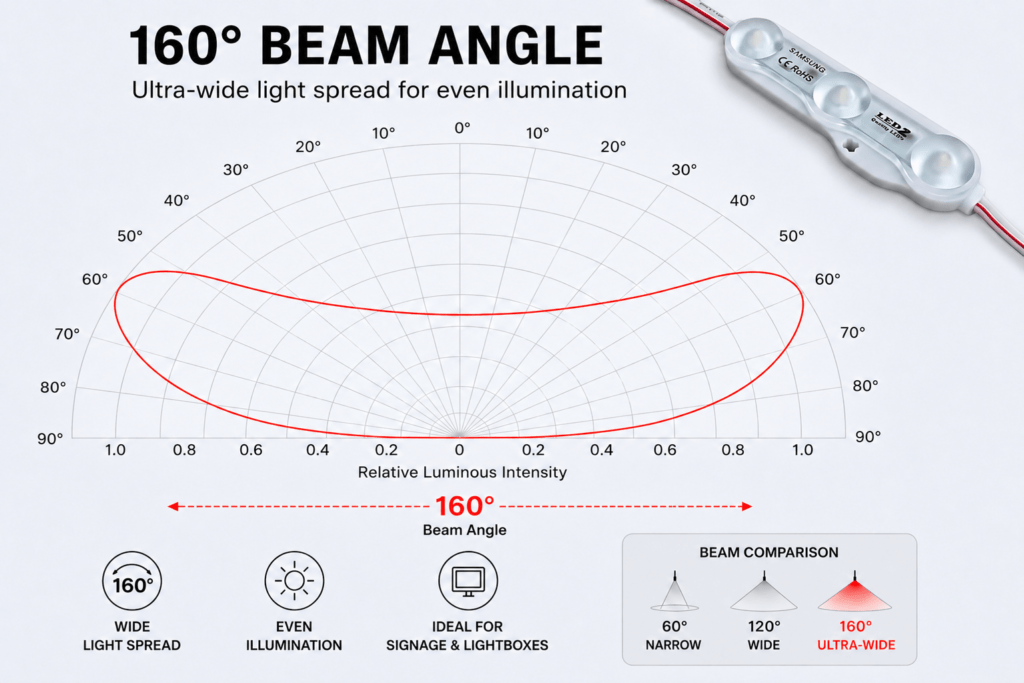

| Viewing Angle | 160° Angle |

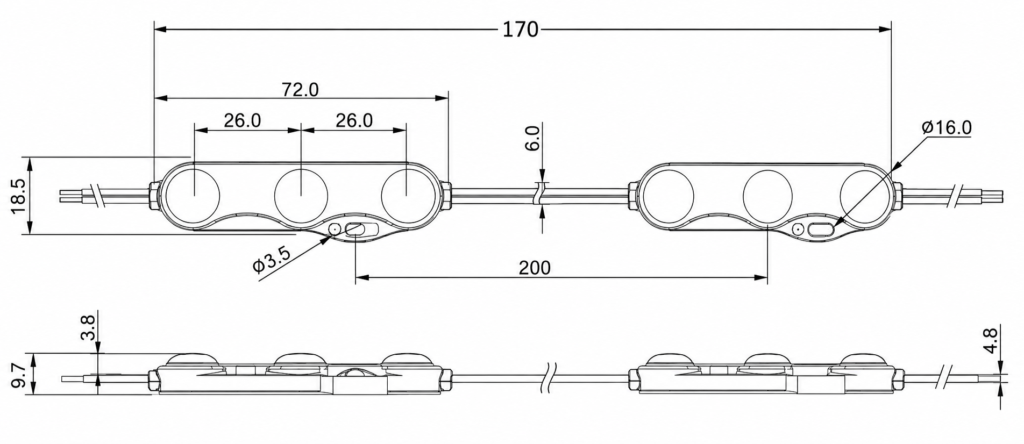

| Dimensions | 72mm x 18.5 x 9.7mm |

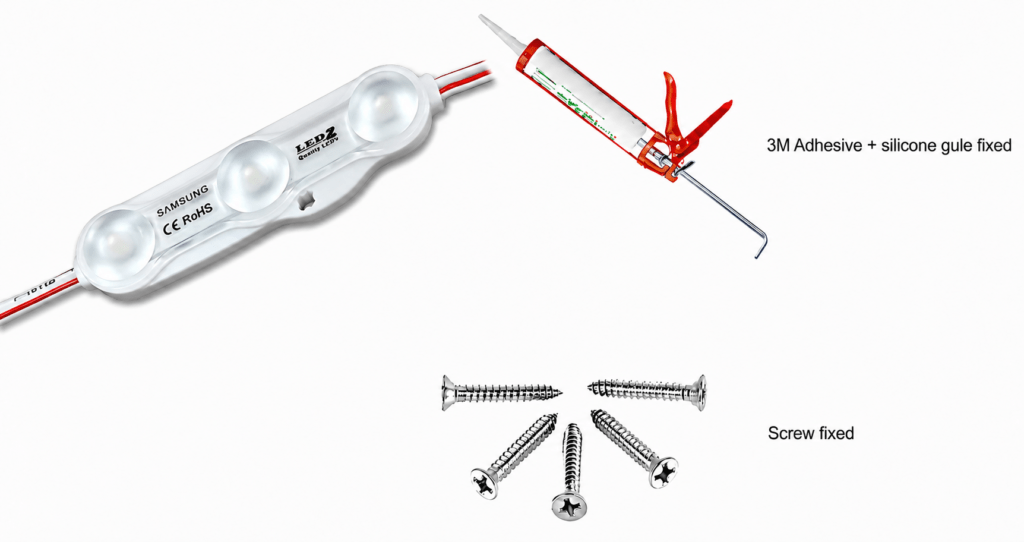

| Mounting | 3M VHB Double Sided Tape or screw mount |
| Wire Length | 100mm |
| Max Ambient Temp | 60° C |

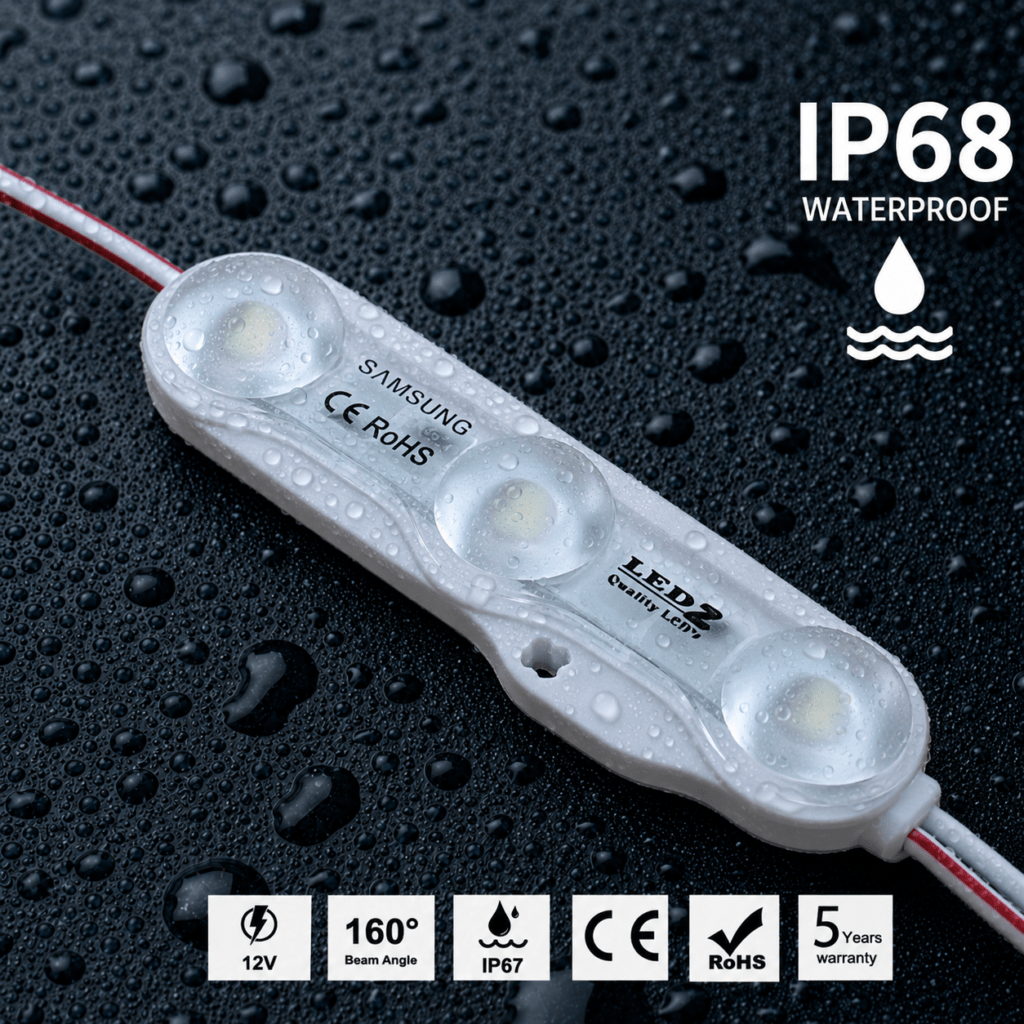

| Waterproofing | (IP67) |
| Warranty | 5 Years |

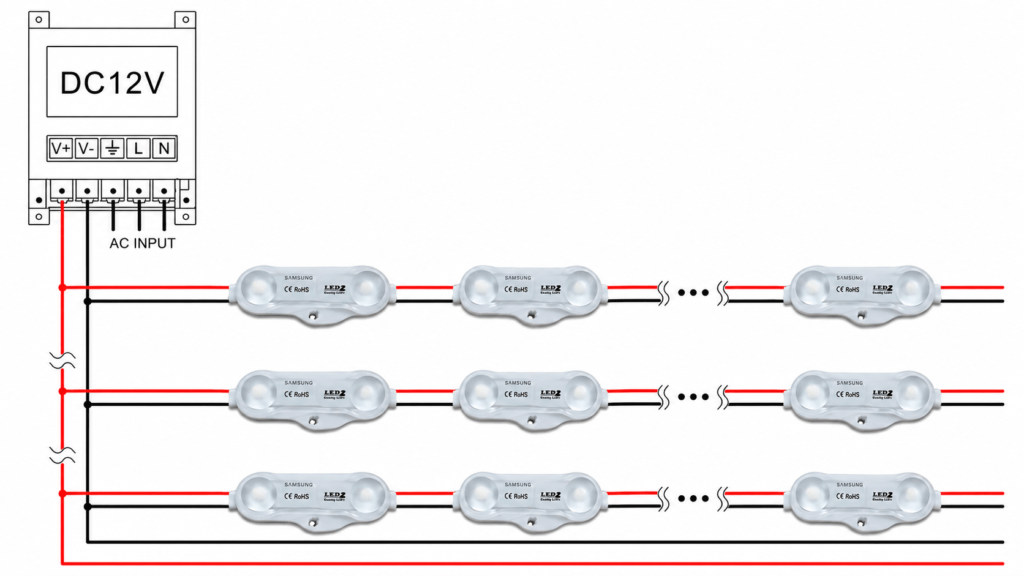

| Max Module | 20 Modules Per String in Series |
| Datasheet |  |
