3LED Module 1 Watt
APPLICATIONS

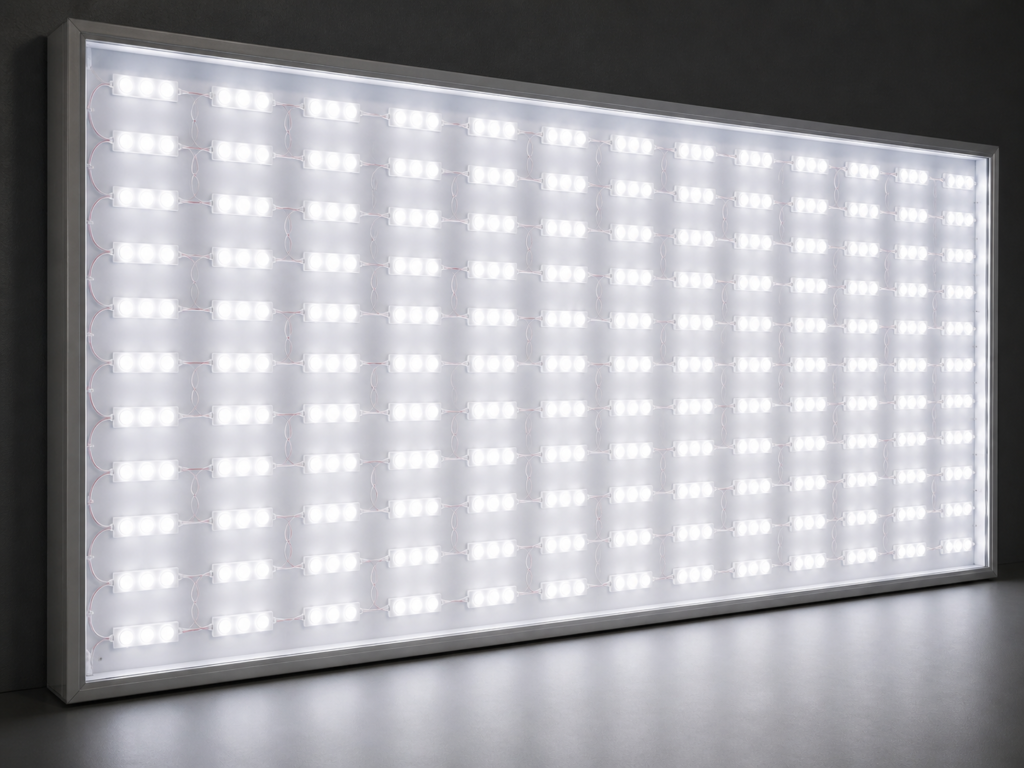

Fabricated Letters and Light Boxes (50-100mm deep)
- 160° Bat-Wing Optic Lens Design
- Injection Moulded (IP67)
- Colour Consistency (MacAdam 4)
R8.91 vat incl.
Unit: Each
6550 in stock (can be backordered)
data-merchantId="10480374">
Specifications
| Input | 12 Volt DC |
| Power | 1 Watt |
| Current | 0.083A |
| Lumens | 90 Lumens |
| Colour Temp | 9000k |
| Qty LED Chips | 3 (2835 Chip) |

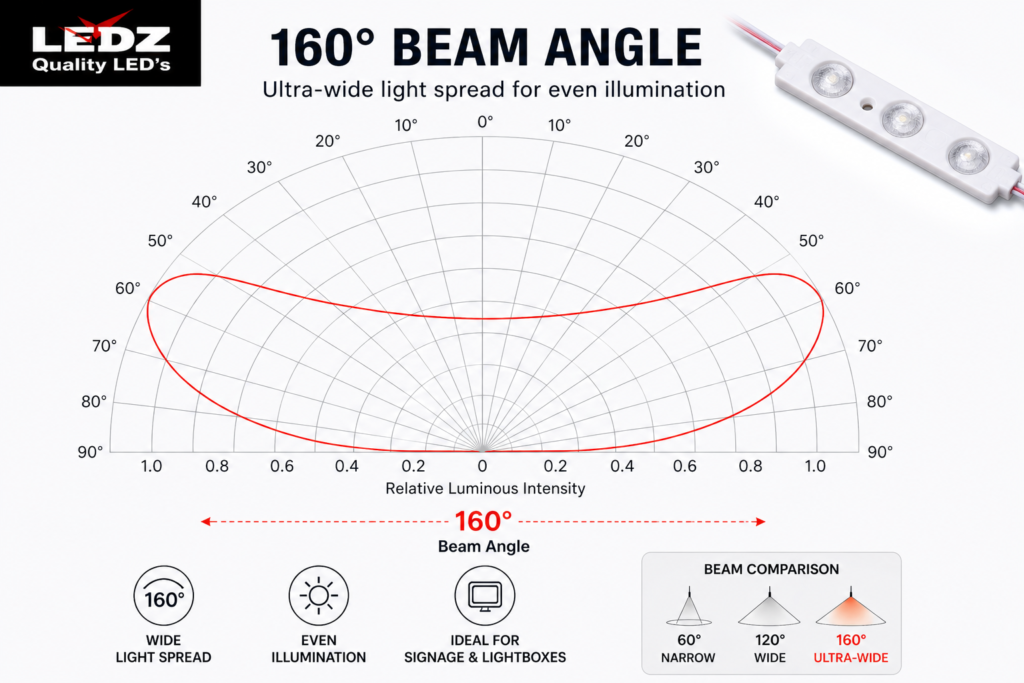

| Viewing Angle | 160° Angle |

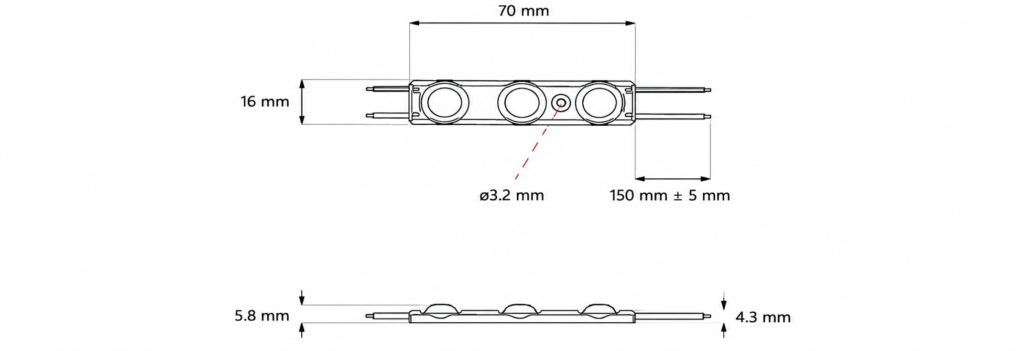

| Dimensions | 72mm x 18.5 x 9.7mm |
| Mounting | 3M VHB Double Sided Tape or screw mount |
| Wire Length | 100mm |
| Max Ambient Temp | 60° C |
| Waterproofing | (IP67) |
| Warranty | 3 Years |
| Max Module | 20 Modules Per String in Series |
