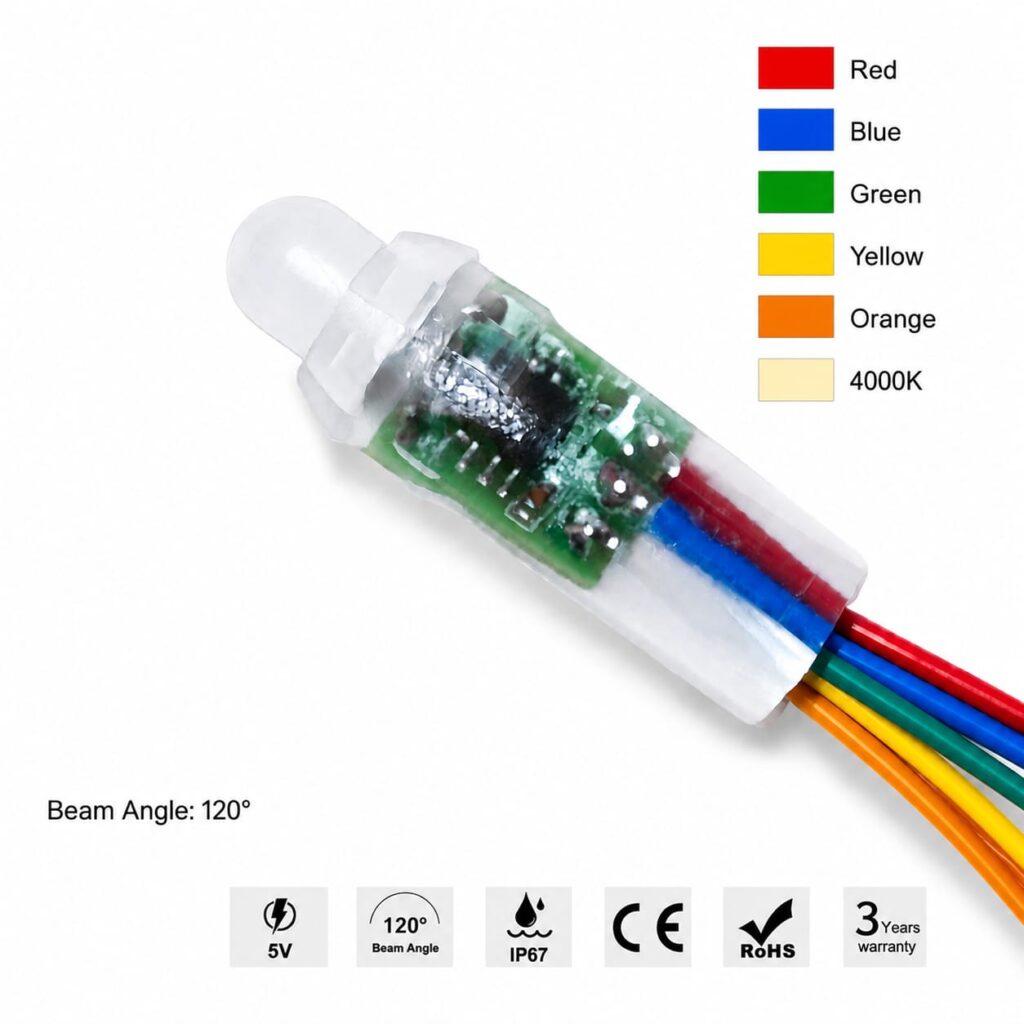

• For a basic installation you will generally require:
  • 1 × LED Modules
  • 1 × Compatible 12V DC Power Supply
  • Power Cord
  • 2-Core Flex Cable (if extending the distance between the power supply and modules)
  • Wire Connectors (optional for tool-free connections)

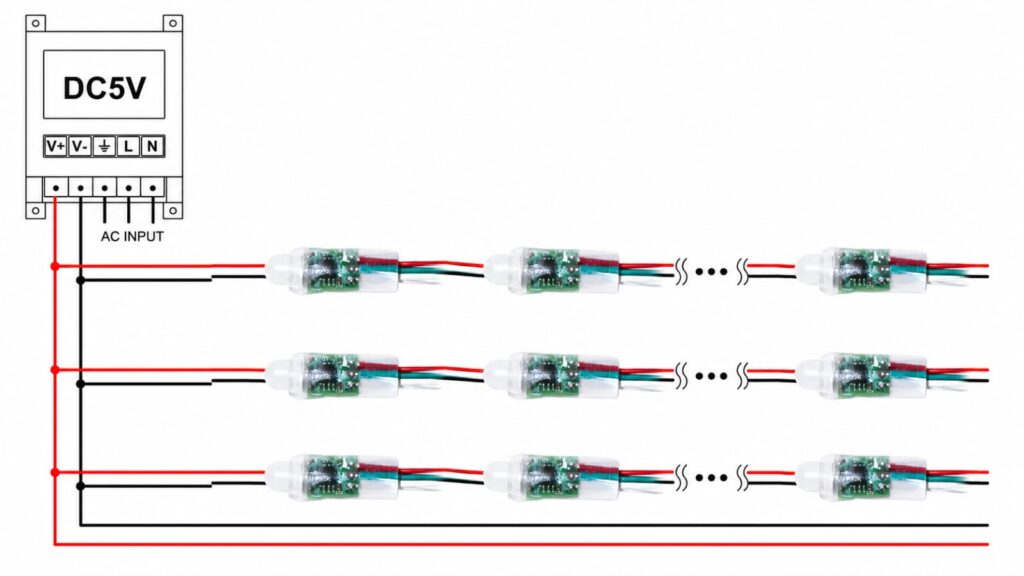

• Simply connect the LED Modules to the correct 12V Power Supply, check all connections, and then connect the power supply to the mains.

Depending on your installation you may also require:

• Insulated 2-Core Flex Cable
• 2-Core Wire Connectors
• Waterproof Junction Boxes (for outdoor installations)
• Mounting Clips or Cable Ties
• Silicone Sealant (for additional weather protection where required)

Always use a 12V DC Power Supply with our 12V LED Modules.

Never connect LED Modules directly to 230V AC mains power.

Multiply:

Number of LED Modules × Wattage per Module + 15%

Example:

• 20 Modules × 0.72W = 14.4W
• Add 15% safety margin = 16.6W

A 20W Power Supply would therefore be suitable.

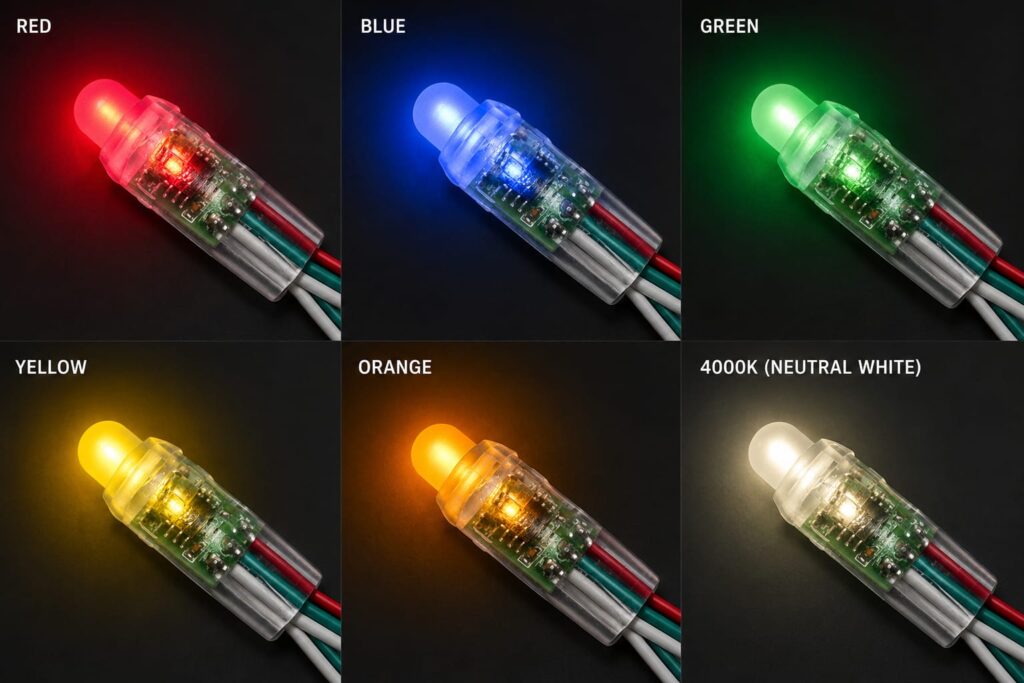

LED Modules are commonly used for:

• 3D Channel Letters
• Lightboxes
• Signage
• Display Cabinets
• Retail Displays
• Architectural Lighting
• Backlit Acrylic Signs

Yes. LED Modules are designed for simple installation and are ideal for DIY users and professional sign installers alike.

Always ensure the correct power supply is used and disconnect mains power before making any electrical connections.

It is highly unlikely to receive a dangerous electric shock from the low-voltage 12V DC output side of the power supply.

Always complete your wiring first and only connect the power supply to the mains once all connections have been checked.

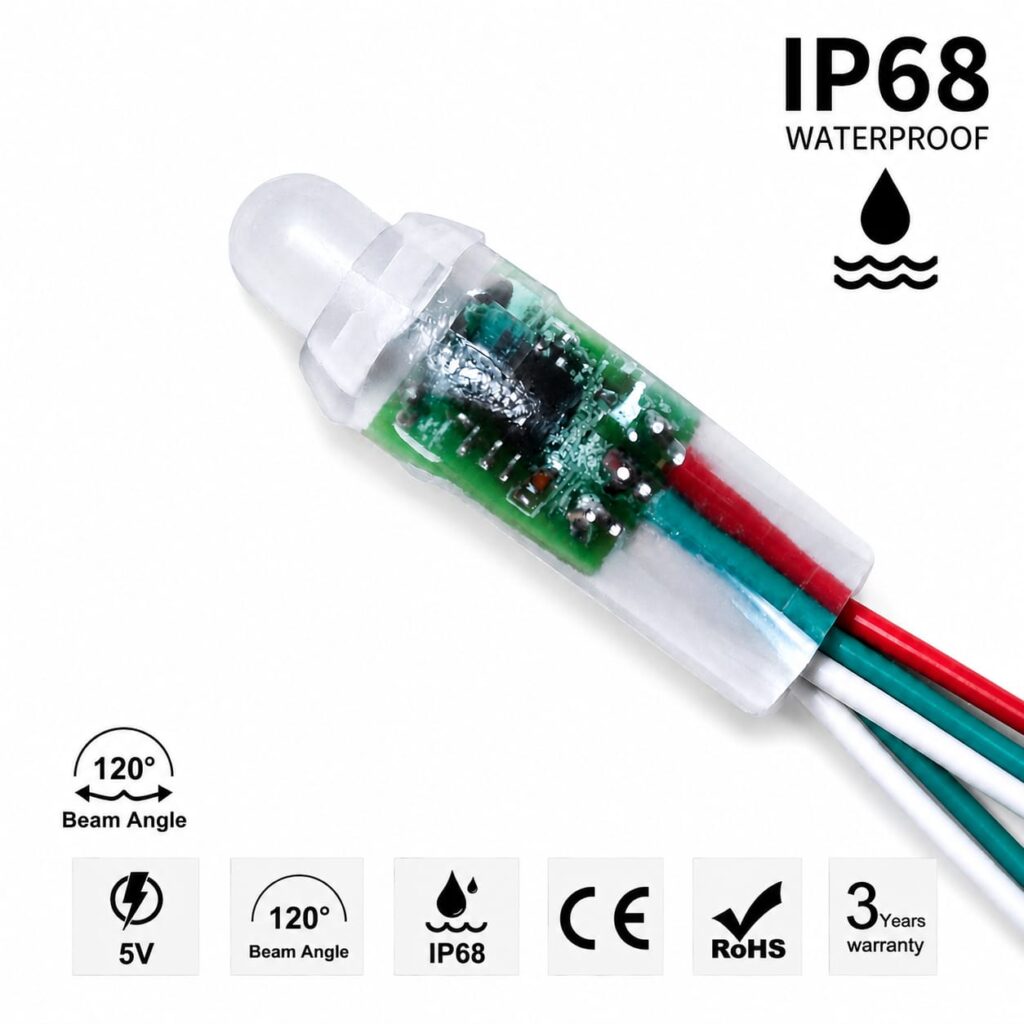

Yes, provided you choose waterproof LED Modules with the appropriate IP rating and install them using suitable waterproof connections and power supplies.

Always check the IP rating of the specific module before outdoor installation.

Yes. LED Modules are connected by wires and can be separated between each module to suit your installation.

Do not cut through the module itself.

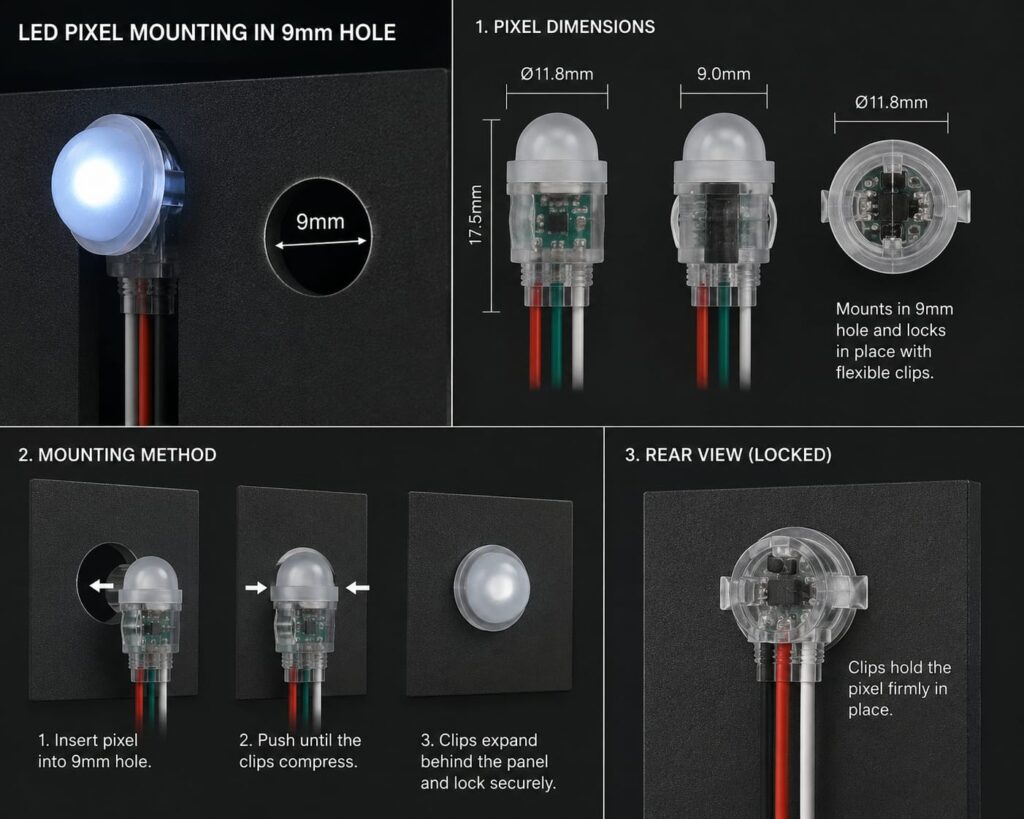

Most LED Modules feature high-strength double-sided adhesive tape on the back.

For added security, particularly outdoors or in warm environments, screws, cable ties or silicone adhesive may also be used.

Yes.

LED Modules can be dimmed using a compatible 12V PWM LED Dimmer.

Always ensure both the dimmer and power supply are correctly rated for the total wattage of your installation.

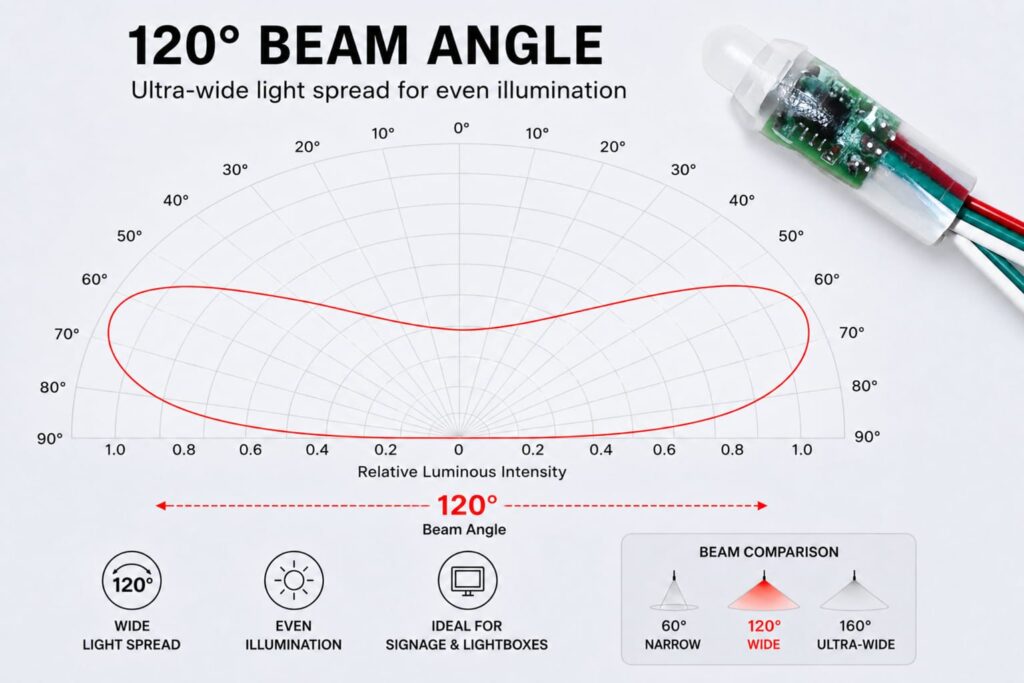

Spacing depends on the module's beam angle, brightness and the depth of your sign or lightbox.

As a general guide:

• 60–100mm spacing for shallow channel letters
• 100–150mm spacing for deeper lightboxes

For the most even illumination, we recommend testing the layout before permanently mounting the modules.
