24v driver | power supply | transformer | 80 watt | 2 year warranty

* Actual products may vary slightly due to continuous design enhancments.

How Much Strip Light Can I Run

Power Supply	24V Strip Light Outdoor
80W	COB Strip (8W/m) - Up To 8M
80W	COB Strip (14W/m) - Up To 5M
80W	SMD Strip (10W/m) - Up To 7M
80W	SMD Strip (14W/m) - Up To 5M

Essential Components

Essential Components for a 24V Outdoor LED Strip Light Installation

To ensure a safe, reliable, and long-lasting outdoor installation, you'll need the following components:

24V Outdoor LED Strip Light – A compatible 24V LED strip suitable for outdoor use. Choose the appropriate colour, brightness, wattage, length, and IP rating for your application and exposure to moisture or weather conditions.
24V Outdoor Power Supply – A compatible 24V DC outdoor-rated power supply with sufficient wattage to safely power the connected LED strip lighting.
Mains Input Cable – Suitable electrical cable for connecting the power supply to the mains supply. Outdoor-rated cable and appropriate protection should be used where exposed to weather conditions.
Low-Voltage Output Cable – Appropriate-gauge cable for connecting the 24V power supply to the LED strip, particularly for longer cable runs or higher-powered installations.
LED Strip Connectors or Soldering Supplies – Used to connect sections of LED strip or create secure custom wiring connections. For outdoor installations, connections should be properly sealed against moisture.
Aluminium LED Profile (Recommended) – Helps dissipate heat, protects the LED strip, and provides a clean, professional finish. Suitable outdoor-rated profiles should be selected where required.
LED Dimmer or Controller (Optional) – Allows brightness adjustment or lighting control where compatible with the selected 24V LED strip and power supply.
Mounting Accessories – Outdoor-suitable clips, brackets, screws, or mounting tape for securely fixing the LED strip, profile, and associated components.
Waterproof Wire Connectors or Terminal Blocks – Ensure secure and reliable electrical connections. For outdoor installations, use connectors and junctions with an appropriate IP rating for the installation environment.
Heat Shrink Tubing or Waterproof Insulation – Protects soldered joints and exposed wiring from moisture, corrosion, accidental contact, and environmental damage. Waterproof heat-shrink should be used where appropriate.

Using quality, compatible, and appropriately IP-rated components will help ensure stable performance, improve protection against outdoor conditions, reduce the risk of electrical issues, and extend the lifespan of your 24V outdoor LED lighting installation.

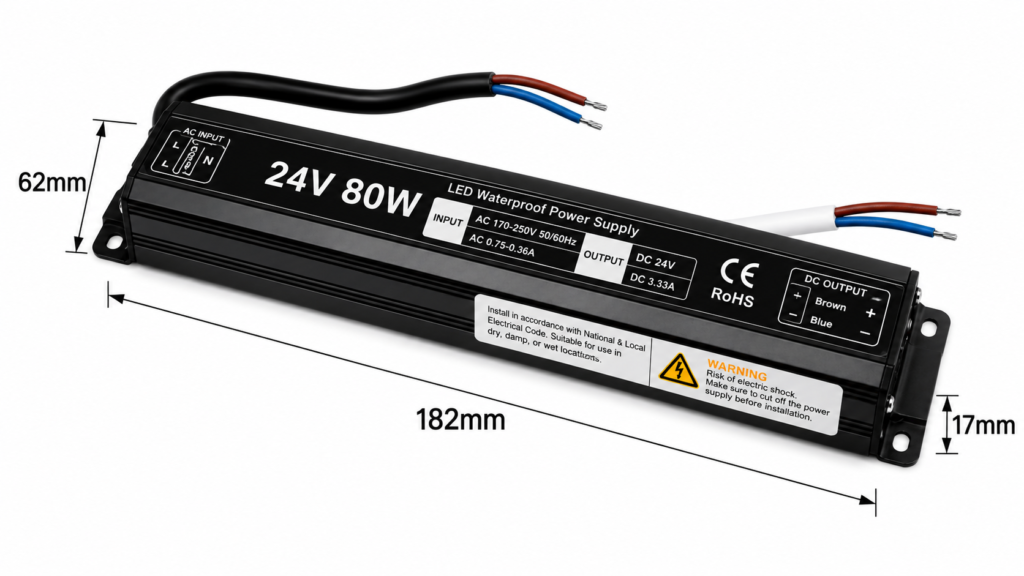

80W LED Driver Power Supply

24 Volt | 2 Year Warranty

Online Price:
Original price was: R534.00.Current price is: R450.00. Vat Incl.

Unit: EACH

Input	AC 100-264V
Output	24V - 80 Watts / 3.33Amp
Waterproof	Waterproof
Dimensions	182mm x 62mm x 21mm
Mounting	Double Sided Tape / Screw Holes
Protection	Over-load & Short Circuit Protection
Warranty	2 Year

47 in stock (can be backordered)

What Power Supply Do I Need?

Essential Components

Essential Components for a 24V Outdoor LED Strip Light Installation

To ensure a safe, reliable, and long-lasting outdoor installation, you'll need the following components:

24V Outdoor LED Strip Light – A compatible 24V LED strip suitable for outdoor use. Choose the appropriate colour, brightness, wattage, length, and IP rating for your application and exposure to moisture or weather conditions.
24V Outdoor Power Supply – A compatible 24V DC outdoor-rated power supply with sufficient wattage to safely power the connected LED strip lighting.
Mains Input Cable – Suitable electrical cable for connecting the power supply to the mains supply. Outdoor-rated cable and appropriate protection should be used where exposed to weather conditions.
Low-Voltage Output Cable – Appropriate-gauge cable for connecting the 24V power supply to the LED strip, particularly for longer cable runs or higher-powered installations.
LED Strip Connectors or Soldering Supplies – Used to connect sections of LED strip or create secure custom wiring connections. For outdoor installations, connections should be properly sealed against moisture.
Aluminium LED Profile (Recommended) – Helps dissipate heat, protects the LED strip, and provides a clean, professional finish. Suitable outdoor-rated profiles should be selected where required.
LED Dimmer or Controller (Optional) – Allows brightness adjustment or lighting control where compatible with the selected 24V LED strip and power supply.
Mounting Accessories – Outdoor-suitable clips, brackets, screws, or mounting tape for securely fixing the LED strip, profile, and associated components.
Waterproof Wire Connectors or Terminal Blocks – Ensure secure and reliable electrical connections. For outdoor installations, use connectors and junctions with an appropriate IP rating for the installation environment.
Heat Shrink Tubing or Waterproof Insulation – Protects soldered joints and exposed wiring from moisture, corrosion, accidental contact, and environmental damage. Waterproof heat-shrink should be used where appropriate.

Frequently Asked Questions

Frequently Asked Questions

1. What accessories do I require for a basic installation and how do I connect them?

For a general 24V Outdoor Power Supply installation, you would require:

1 × 24V Outdoor DC Power Supply
1 × Compatible 24V Outdoor LED Strip Light or other 24V LED product
Suitable mains input cable
Suitable outdoor-rated low-voltage output cable

Depending on your application, you may also require a switch, dimmer, controller, waterproof connectors, cable glands, junction boxes, or other outdoor installation accessories.

See the installation diagram for guidance on the correct connection method.

2. Are there any other items or optional extras that I may need?

Depending on your application, you may also need:

24V Outdoor LED Strip Lights
Outdoor-rated insulated 2-Core Flex for low-voltage connections
Waterproof 2-Core Wire Connectors or Terminal Blocks
LED Dimmer or compatible Controller
Waterproof cable glands and junction boxes
Mounting screws, brackets, or clips suitable for outdoor use
Soldering supplies and waterproof heat shrink tubing
Additional outdoor-rated cable for longer cable runs

3. What Voltage Power Supply would I use?

Always use a Power Supply with the same voltage as the LED product being powered.

For a 24V Outdoor LED Strip Light:

24V LED Strip Light → 24V DC Outdoor Power Supply

Never connect a 24V LED product directly to 230V AC mains power.

4. What size Power Supply would I need?

Calculate the required power based on the total wattage of the connected LED products.

A general calculation is:

Total Load (Watts) + 20% Spare Capacity = Recommended Power Supply Size

Example:

5M × 10 Watts/M = 50 Watts
50 Watts + 20% = 60 Watts

Therefore, a 60W 24V Outdoor Power Supply would be suitable for this example.

For additional headroom and long-term reliability, a slightly larger correctly rated power supply can be selected.

5. Where can I use a 24V Outdoor Power Supply?

24V Outdoor Power Supplies are suitable for a wide range of low-voltage outdoor lighting applications, including:

Outdoor LED Strip Lights
Garden and landscape lighting
Pathway and walkway lighting
Patio and deck lighting
Pool and entertainment areas
Outdoor signage and illuminated features
Architectural and façade lighting
Garden and decorative feature lighting
Pergola and outdoor entertainment lighting
Driveway and entrance lighting
Outdoor retail and commercial installations
Hospitality and restaurant outdoor lighting
Residential outdoor lighting projects
DIY outdoor LED lighting projects

Always ensure the connected product is compatible with a 24V DC output and is suitable for outdoor use.

6. Can I install a 24V Outdoor Power Supply myself?

The low-voltage 24V DC side of the installation can be relatively straightforward when using compatible components.

However, connecting the Power Supply to 230V AC mains electricity involves potentially dangerous voltages and should be completed in accordance with local electrical regulations. If you are unsure about mains wiring, consult a qualified electrician.

Outdoor installations also require appropriate consideration of IP ratings, moisture protection, cable routing, and waterproof connections.

7. Can I use a 24V Outdoor Power Supply with LED Strip Lights?

Yes. A 24V Outdoor Power Supply can be used to power compatible 24V Outdoor LED Strip Lights, provided the total wattage of the strip does not exceed the rated output of the Power Supply.

Always check the voltage, wattage, and IP rating requirements of the LED Strip Light before installation.

8. Can I use a dimmer or controller with the Power Supply?

Yes. A compatible 24V LED dimmer or controller can be used where supported by the connected LED product.

The dimmer or controller should be installed on the 24V DC output side of the Power Supply and must be correctly rated for the total connected load.

For outdoor installations, ensure the dimmer, controller, connectors, and associated equipment are also suitable for the intended environment.

9. Can I use the Power Supply for other 24V LED products?

Yes, provided the product requires a 24V DC input, is suitable for the intended outdoor environment, and its total power requirements are within the rated capacity of the Power Supply.

Always check the specifications of the connected product before installation.

10. How do I know which Power Supply wattage I need?

First, determine the total wattage of all the LED products that will be connected to the Power Supply.

For example:

Total LED Load = 80W
Recommended capacity with 20% spare = 96W

In this case, you would select the next suitable Power Supply rating above 96W.

Avoid operating a Power Supply continuously at or above its maximum rated capacity.

11. How should the Power Supply be installed?

Install the Power Supply in a location that is suitable for its IP rating and specified environmental conditions.

Ensure that:

The ventilation openings are not obstructed
The unit is securely mounted
It is protected from flooding and standing water unless specifically designed for such conditions
It is kept away from excessive heat and environmental conditions outside its specifications
The connected load does not exceed the rated capacity
All electrical connections are secure and properly insulated
Suitable outdoor-rated cable is used for input and output connections
Cable entry points are properly sealed where required
Waterproof connectors, glands, and junctions are used where necessary

12. Can I shock myself?

The 24V DC output side of the Power Supply is low voltage, so the risk of a dangerous electric shock is significantly lower than with mains electricity under normal conditions.

However, the 230V AC input side is dangerous and can cause serious injury or death.

Always ensure the mains supply is isolated before working on the input side of the Power Supply. Mains electrical connections should be carried out by a suitably qualified person where required.

Never assume that an outdoor-rated Power Supply makes the mains connections safe to touch.

13. Can I use the Power Supply continuously?

Yes. A correctly sized 24V Outdoor Power Supply can be used for continuous LED lighting applications, provided it is operated within its specified electrical, temperature, and environmental ratings.

For best performance and longevity, avoid overloading the Power Supply, ensure adequate ventilation, and protect the unit and its connections from environmental conditions outside its specified rating.

14. Can I use a larger Power Supply than I need?

Yes. Using a Power Supply with a higher wattage rating than the calculated load is generally acceptable, provided the output voltage remains 24V DC and the Power Supply is suitable for the outdoor application.

A larger Power Supply does not force additional power into the LED product. The connected LED load draws the power it requires.

However, there is no need to excessively oversize the Power Supply. Select a suitable rating with reasonable spare capacity.

15. What happens if I overload the Power Supply?

Operating a Power Supply above its rated capacity can cause excessive heat, voltage instability, protection shutdowns, reduced performance, or premature failure.

Always calculate the total connected load and select a Power Supply with sufficient capacity and approximately 20% spare capacity.

16. What happens if I connect the wrong voltage?

The voltage must match the requirements of the connected LED product.

A 24V LED product should only be connected to a 24V DC Power Supply. Using an incorrect voltage can cause malfunction, damage the LED product, or create a safety risk.

Always check the voltage specifications before making any connections.

For outdoor installations, also ensure that the Power Supply, LED product, cables, connectors, and other accessories have suitable environmental and IP ratings for the installation location.

Installation & Setup

24V Outdoor Power Supply Installation & Setup

Installing a 24V Outdoor Power Supply is straightforward when the correct components are selected and the unit is installed correctly.

Step 1: Determine Your Power Requirements

Calculate the total wattage of the connected 24V LED lighting and select a power supply with sufficient output capacity. As a general recommendation, allow at least 20% spare capacity above the total connected load.

Step 2: Check Compatibility

Confirm that the connected LED products, such as 24V Outdoor LED Strip Light, are designed to operate at 24V DC. Check the power supply's output voltage, wattage, IP rating, and specifications before installation.

Step 3: Choose a Suitable Installation Location

Select a suitable outdoor location that provides appropriate protection from rain, standing water, excessive heat, and other environmental conditions. Ensure the power supply is installed according to its specified IP rating and manufacturer requirements.

Step 4: Prepare the Wiring

Prepare the appropriate mains input cable and low-voltage output cable. Ensure all cables are correctly sized for the power supply and connected load. Outdoor cables and connections should be suitable for the environment and protected against moisture where required.

Step 5: Connect the 24V Output

Connect the 24V DC output from the power supply to the compatible LED lighting. Always observe the correct polarity (+ and –) and ensure all connections are secure and properly protected against moisture.

Step 6: Secure the Power Supply

Mount the power supply securely using suitable screws, brackets, or mounting hardware. Ensure adequate ventilation around the unit and do not cover ventilation openings. Avoid installing the power supply where it can become submerged or exposed to prolonged standing water unless specifically designed for such conditions.

Step 7: Protect and Seal Connections

Ensure all cable entry points, junctions, connectors, and exposed connections are appropriately sealed and protected for outdoor use. Use suitable waterproof connectors, glands, and insulation where required to prevent moisture from entering the electrical connections.

Step 8: Connect to Mains Power

Connect the power supply to the mains according to local electrical regulations. Mains electrical connections should be carried out by a qualified electrician where required.

Installation Tips

Ensure the total connected load does not exceed the power supply's rated wattage.
Allow at least 20% spare capacity when selecting the power supply.
Ensure the input and output voltage specifications are correct before connecting any equipment.
Select a power supply with an appropriate IP rating for the installation environment.
Install the power supply where it is protected from direct exposure to excessive moisture, flooding, and standing water unless specifically designed for those conditions.
Use appropriately sized and outdoor-suitable cables for both mains input and 24V DC output connections.
Ensure all electrical connections are secure, properly insulated, and suitably protected against moisture.
Use waterproof cable glands, connectors, and junctions where required.
Do not obstruct ventilation openings or tightly enclose the power supply unless specifically designed for that installation.
Check polarity before connecting 24V LED products.
For longer cable runs, use an appropriate cable gauge to help minimise voltage drop.
Keep the power supply away from excessive heat and install it in accordance with the manufacturer's specified operating conditions.
Ensure the power supply is securely mounted and protected from physical damage.
Do not install or modify mains wiring while the power supply is energised.

Following these steps will help ensure reliable performance, stable power delivery, and a long service life from your 24V Outdoor Power Supply and connected LED lighting.

Troubleshooting & Recommendations

24V Outdoor Power Supply Troubleshooting & Recommendations

Common Issues & Solutions:

Power supply won't turn on

Check that the mains power is switched on and reaching the Power Supply.
Verify all input wiring and connections.
Check that the Power Supply is receiving the correct mains voltage.
Inspect the fuse or circuit protection where applicable.
Ensure the Power Supply has been installed according to its specifications.
Check that moisture or water has not entered the Power Supply or electrical connections.

LED lights won't turn on

Check that the Power Supply is providing 24V DC output.
Verify all low-voltage wiring connections and polarity (+ and –).
Ensure the connected LED products are compatible with 24V DC.
Check that the Power Supply is correctly sized for the connected load.
Inspect the wiring, connectors, and cable glands for loose or damaged connections.
Check for signs of water or moisture entering outdoor connections.

LED lights are dim or unevenly lit

The Power Supply may be undersized for the connected load.
Check for voltage drop on longer low-voltage cable runs.
Ensure the output voltage is stable and providing the required 24V DC.
Check for loose, damaged, or undersized wiring.
Confirm that the total connected load does not exceed the Power Supply's rated capacity.
Inspect outdoor connections for corrosion, moisture, or water ingress.

Power supply is overheating

Check that the Power Supply is not overloaded.
Ensure adequate ventilation around the unit.
Make sure ventilation openings are not blocked or covered.
Check that the Power Supply is installed in a suitable outdoor location and within its specified operating temperature range.
Ensure the Power Supply is not exposed to excessive direct heat or sunlight unless designed for such conditions.
Inspect connections for loose wiring or excessive resistance.

LED lights are flickering

Check for loose or poor electrical connections.
Confirm that the Power Supply is not overloaded.
Check that the Power Supply is providing a stable 24V DC output.
If a dimmer or controller is being used, ensure it is compatible with the Power Supply and connected LED products.
Inspect cables and connectors for damage, corrosion, or moisture.
Check outdoor junctions and connections for water ingress.

Power supply shuts down or cuts out

Check whether the connected load exceeds the Power Supply's rated capacity.
Allow the Power Supply to cool and check for overheating.
Inspect the installation for short circuits or damaged wiring.
Check the input and output connections.
Inspect outdoor connections for moisture or water ingress.
Ensure the Power Supply is being used within its specified operating conditions and temperature range.

Recommendations

Use a quality 24V DC Outdoor Power Supply with at least 20% spare capacity above the total connected load.
Always ensure the Power Supply voltage matches the voltage requirement of the connected LED products.
Calculate the total wattage before selecting the Power Supply.
Select an Outdoor Power Supply with an appropriate IP rating for the installation environment.
Install the Power Supply in accordance with the manufacturer's requirements and specified environmental conditions.
Protect the Power Supply from flooding, standing water, and excessive moisture unless it is specifically designed for those conditions.
Ensure adequate ventilation and heat dissipation around the Power Supply.
Use appropriately sized and outdoor-suitable cables for both mains input and 24V DC output connections.
Ensure all electrical connections are secure, properly insulated, and protected against moisture.
Use suitable waterproof cable glands, connectors, and junctions where required.
Check polarity before connecting 24V LED products.
For longer cable runs, use an appropriate cable gauge to help minimise voltage drop.
Use compatible dimmers or controllers where required.
Avoid operating the Power Supply continuously at or above its maximum rated capacity.
Regularly inspect outdoor connections for corrosion, water ingress, damaged cables, or deterioration.
Always test the installation before completing the final installation.

Following these recommendations will help maximise the performance, efficiency, and lifespan of your 24V Outdoor Power Supply while reducing the likelihood of electrical, moisture-related, and installation issues.

24V Outdoor Power Supply Safety Tips

To ensure safe installation and reliable operation, follow these important safety guidelines:

Always disconnect the mains power before installing, connecting, or servicing the Power Supply.
Only use a compatible 24V DC Outdoor Power Supply for 24V LED products.
Choose a Power Supply with at least 20% spare capacity to help prevent overloading.
Never connect a 24V LED product directly to 230V AC mains power.
Observe the correct polarity (+ and –) when making low-voltage connections.
Ensure all electrical connections are secure and properly insulated.
Use appropriately rated cables for the mains input and 24V DC output.
Use outdoor-rated cables, connectors, glands, and junctions where required.
Ensure the Power Supply has an appropriate IP rating for its intended installation location.
Do not install the Power Supply where it may become submerged or exposed to standing water unless specifically designed for such conditions.
Protect connections from rain, moisture, and water ingress.
Do not cover the Power Supply with insulation, fabric, or other materials that could restrict ventilation.
Keep the Power Supply away from excessive heat and flammable materials.
Do not exceed the Power Supply's rated output capacity.
Inspect the Power Supply, cables, connectors, and connections regularly for signs of damage, overheating, corrosion, water ingress, or deterioration.
If the Power Supply is connected to mains electricity and you are unsure about the wiring, consult a qualified electrician.
Keep Power Supplies, wiring, and connected lighting products out of reach of young children.

Following these safety precautions will help ensure a safe installation, reliable performance, and a long service life for your 24V Outdoor Power Supply and connected LED lighting.

Applications & Use Cases

24V Outdoor Power Supply Applications & Use Cases

24V Outdoor Power Supplies are a reliable and versatile solution for powering compatible 24V LED lighting and low-voltage electrical applications in outdoor and exposed environments. They convert standard mains voltage to a regulated 24V DC output, providing stable and consistent power for installations where a dependable and weather-resistant low-voltage supply is required.

Common applications include:

24V outdoor LED strip lighting
Garden and landscape lighting
Outdoor signage and illuminated lettering
Pathway and walkway lighting
Patio and deck lighting
Pool and entertainment area lighting
Outdoor architectural feature lighting
Building and façade lighting
Outdoor display lighting
Garden feature and decorative lighting
Pergola and entertainment area lighting
Driveway and entrance lighting
Outdoor stairway and handrail lighting
Restaurant and hospitality outdoor lighting
Retail and commercial outdoor displays
Exhibition and event installations
Security and perimeter lighting applications
DIY outdoor lighting projects
Commercial and residential outdoor lighting installations

With their durable outdoor design and regulated 24V DC output, these power supplies are ideal for applications requiring safe, stable, and reliable power for compatible 24V LED lighting in outdoor environments. They can also be paired with compatible 24V dimmers, controllers, and LED accessories where supported, providing flexibility for both functional and decorative outdoor lighting installations.

About

24V Outdoor Power Supplies

Our 24V Outdoor Power Supplies provide reliable, stable power for compatible 24V LED lighting and low-voltage outdoor applications. Designed to convert standard mains voltage to a regulated 24V DC output, they are ideal for powering LED strip lights, signage, garden lighting, outdoor displays, architectural features, and a wide range of residential and commercial installations.

Designed for outdoor environments, our 24V Outdoor Power Supplies offer protection against moisture and environmental conditions, making them suitable for installations where a more durable and weather-resistant power supply is required. Available in a range of power ratings, they make it easy to select the right solution for your installation while providing consistent power and dependable performance.

Colours & Diagrams

60W LED Power Supply 12V

led power supply 60 watt 24 volt

LED Power Supply Dimensions:

80w led driver power supply

led power supply 60 watt 24 volt

LED Power Supply Installation

led power supply 30 watt 24 volt

Specifications

You may also need...

LED Strip Light Channel
Online Price:
Original price was: R204.00.Current price is: R185.00. Vat Incl.
Add to cart
LED Controller / Single Colour / On & Off / Dimming / 12-24V / 8Amps
Online Price:
Original price was: R290.00.Current price is: R261.00. Vat Incl.
Add to cart
2 Core Wire Press Connector
Online Price:
Original price was: R3.00.Current price is: R2.00. Vat Incl.
Add to cart
