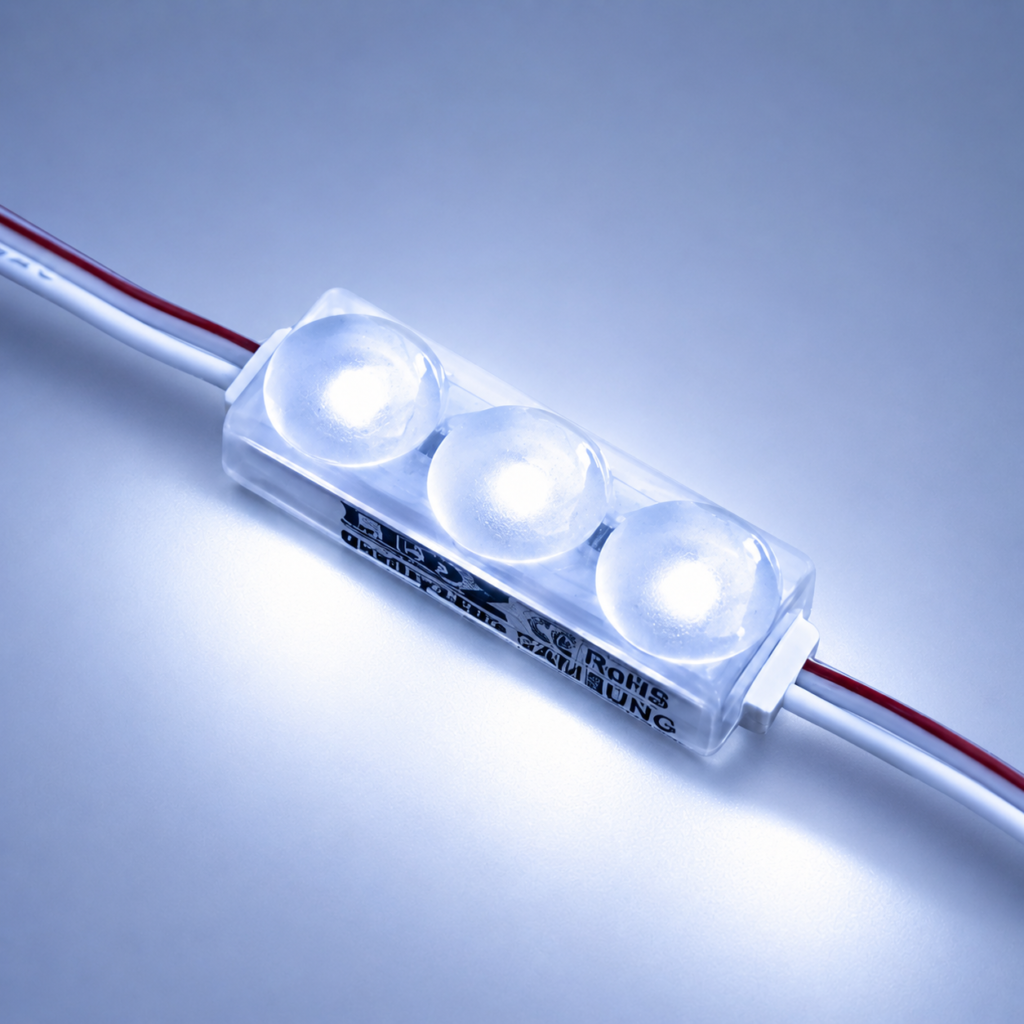

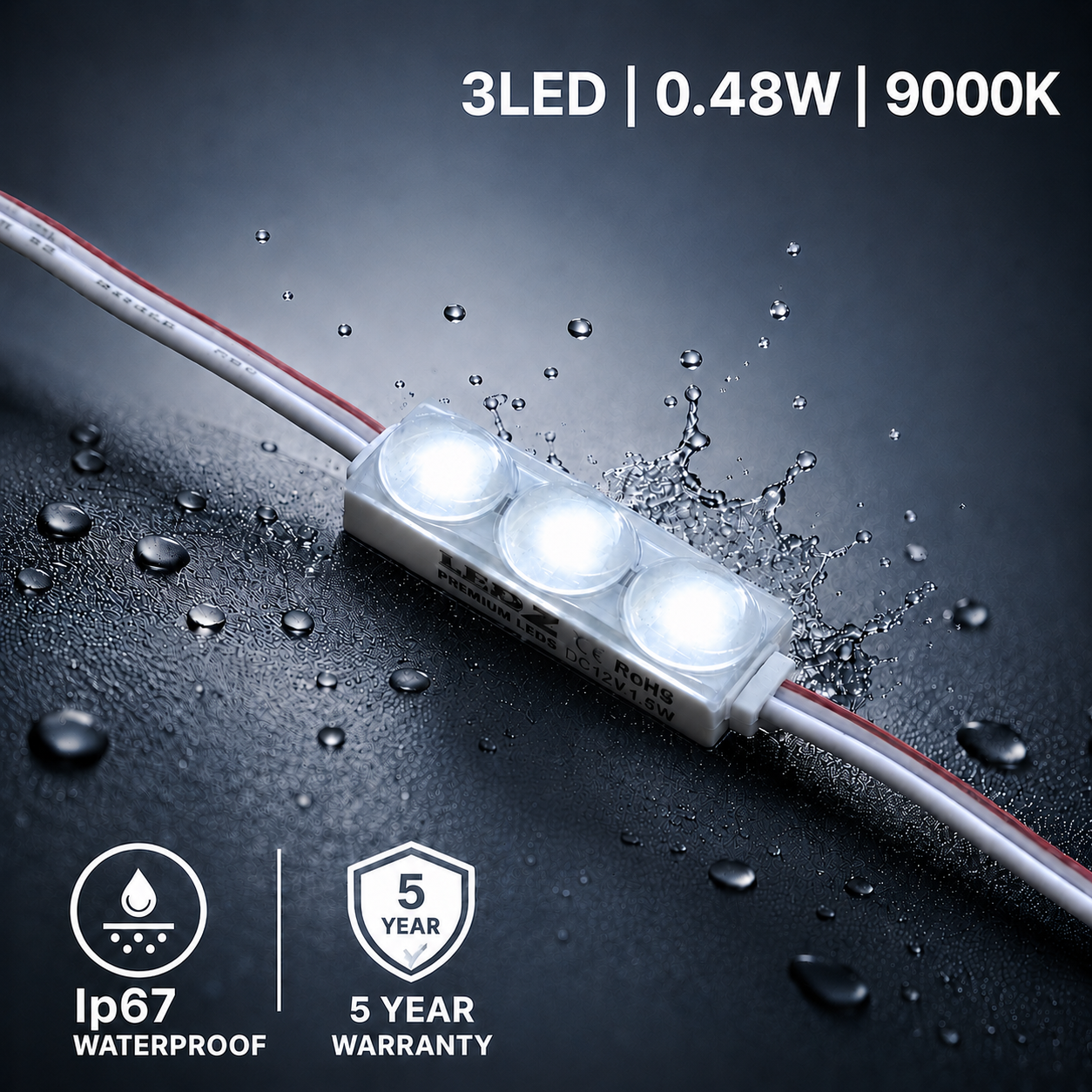

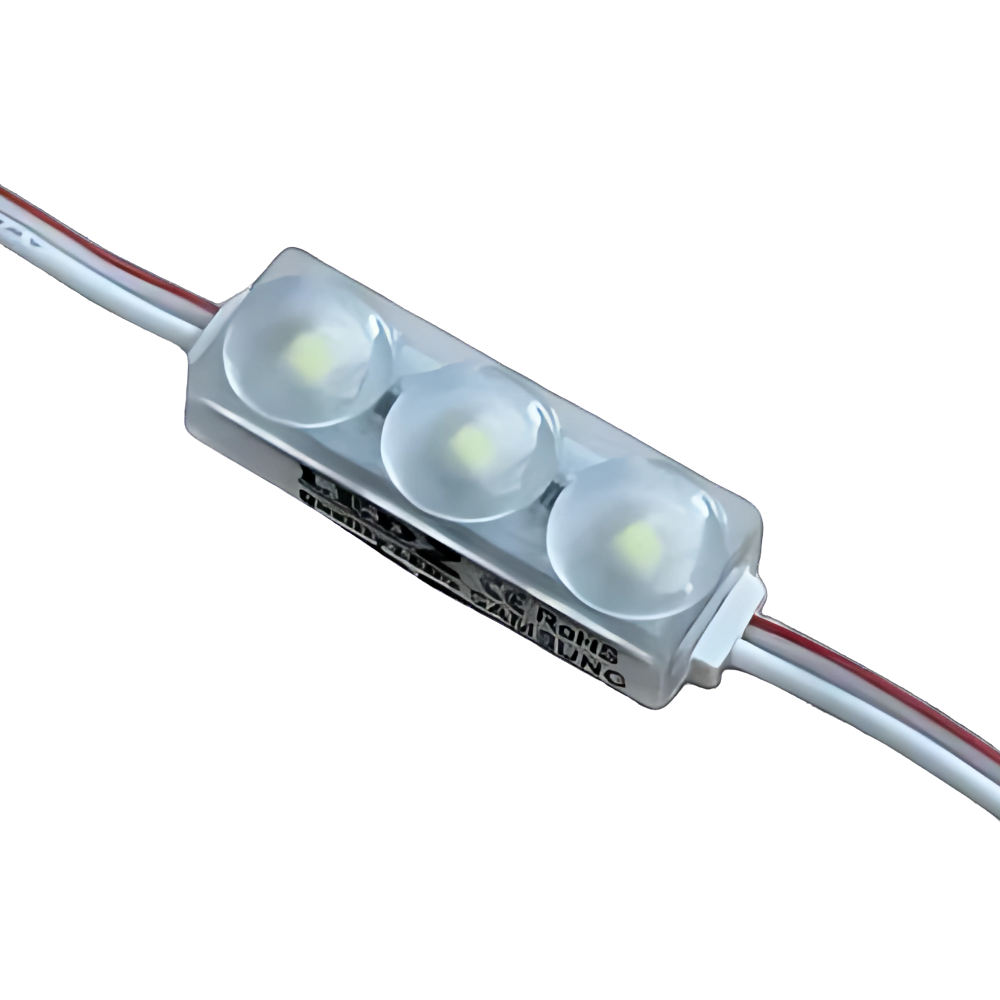

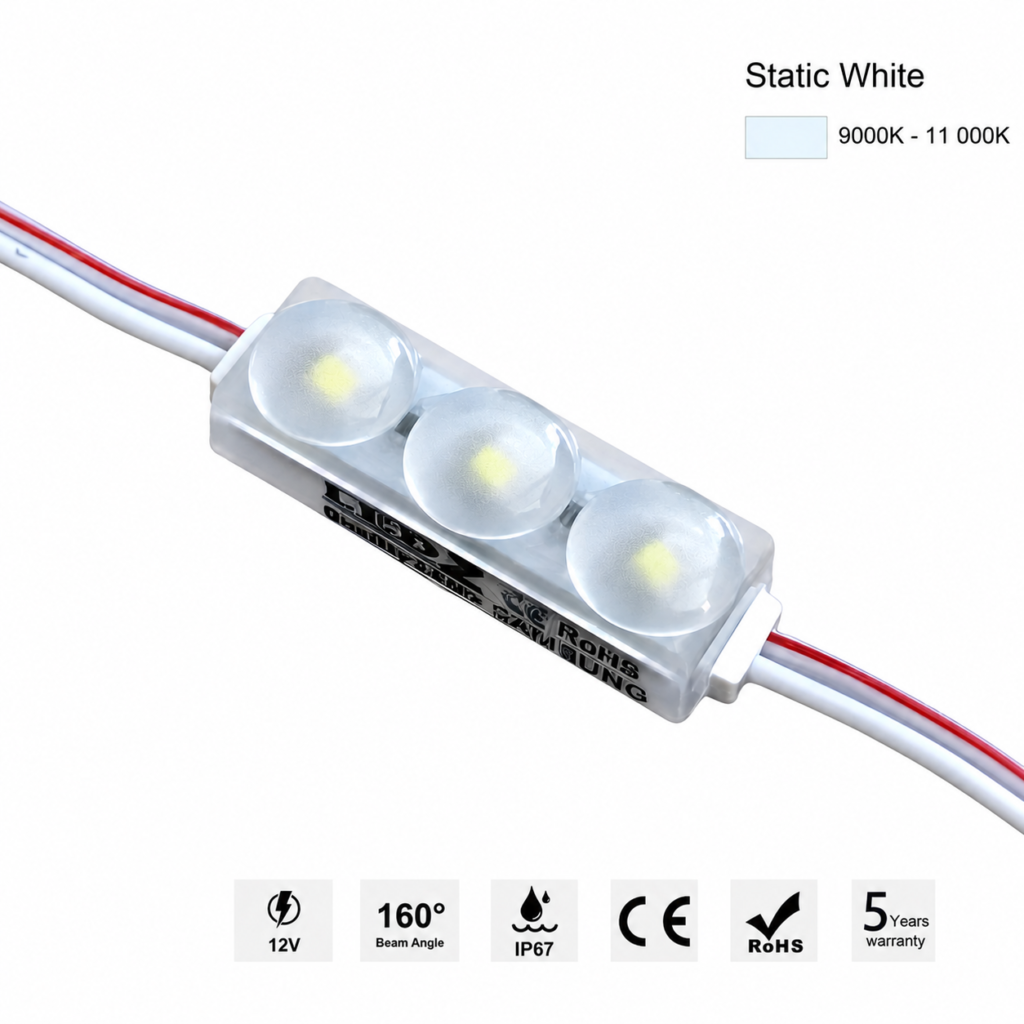

3LED Module 0.48W
APPLICATIONS
Fabricated Letters and Light Boxes (40-100mm deep)
- High Quality Samsung LED Chips
- 160° Bat-Wing Optic Lens Design

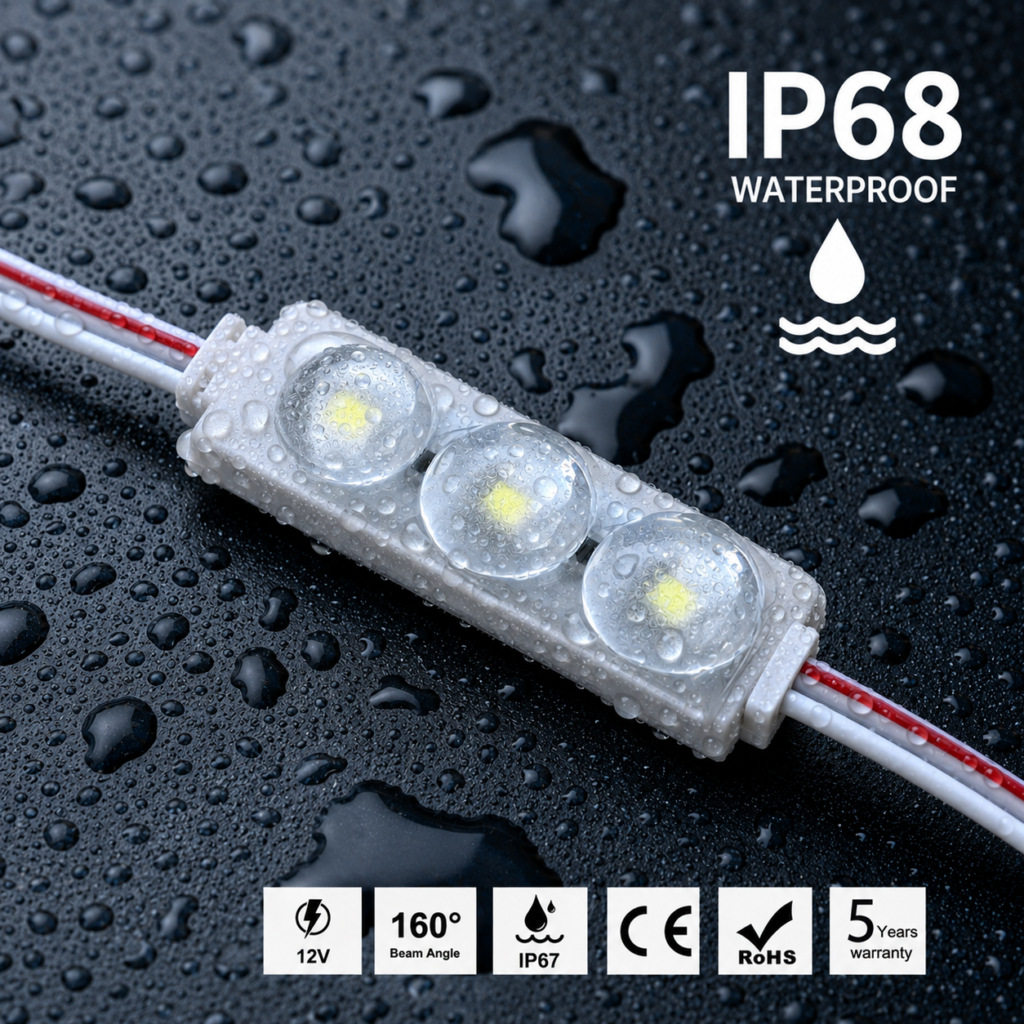

- Injection Moulded (IP67)
- Colour Consistency (MacAdam 4)
- 5 Year Warranty
R9.38 vat incl.
Unit: Each
2492 in stock (can be backordered)
data-merchantId="10480374">
Bulk Prices
| Bulk Qty’s | Prices / Each (ex vat ) | Prices / Each (Vat incl. ) |
| 200-499 | R6.85 | R7.87 |
| 500-999 | R6.57 | R7.55 |
| >1000 | R6.31 | R7.25 |
Specifications
| Input | 12 Volt DC |
| Power | 0.48 Watt |
| Current | 0.04A |
| Lumens | 70 Lumens |
| Colour Temp | 9000K-11000K |
| Qty LED Chips | 3 (2835 Chip) |

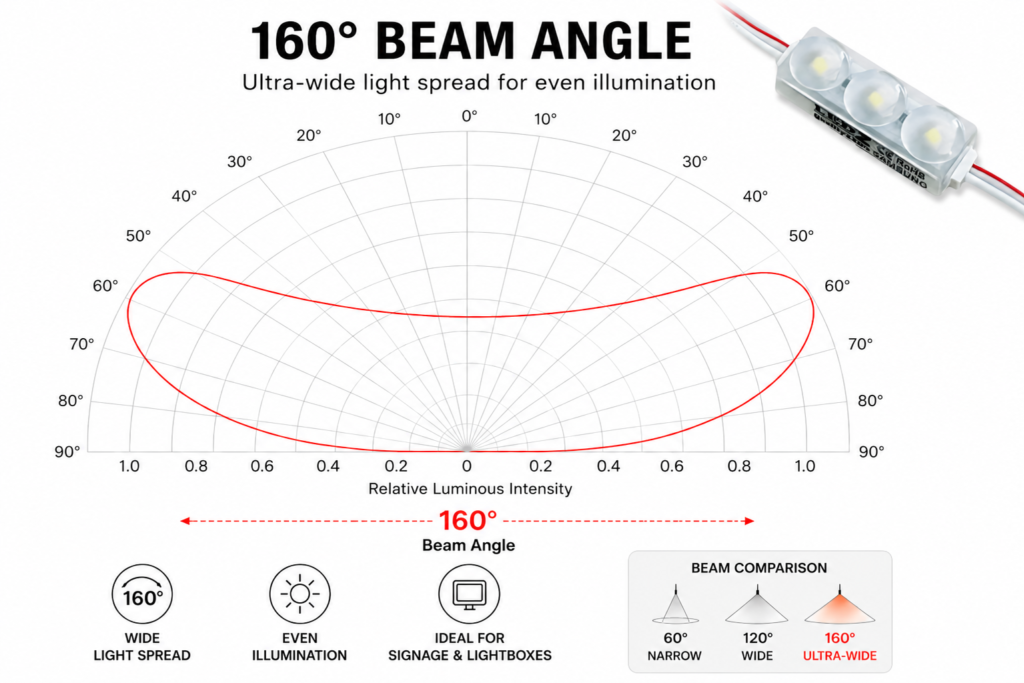

| Viewing Angle | 160° Angle |

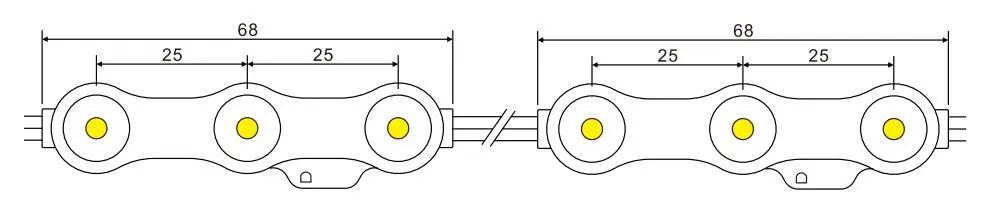

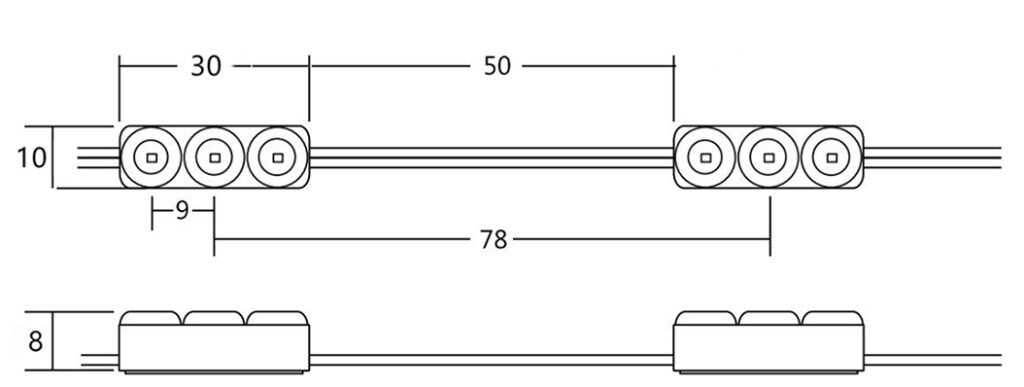

| Dimensions | 25mm x 9mm x 9mm |

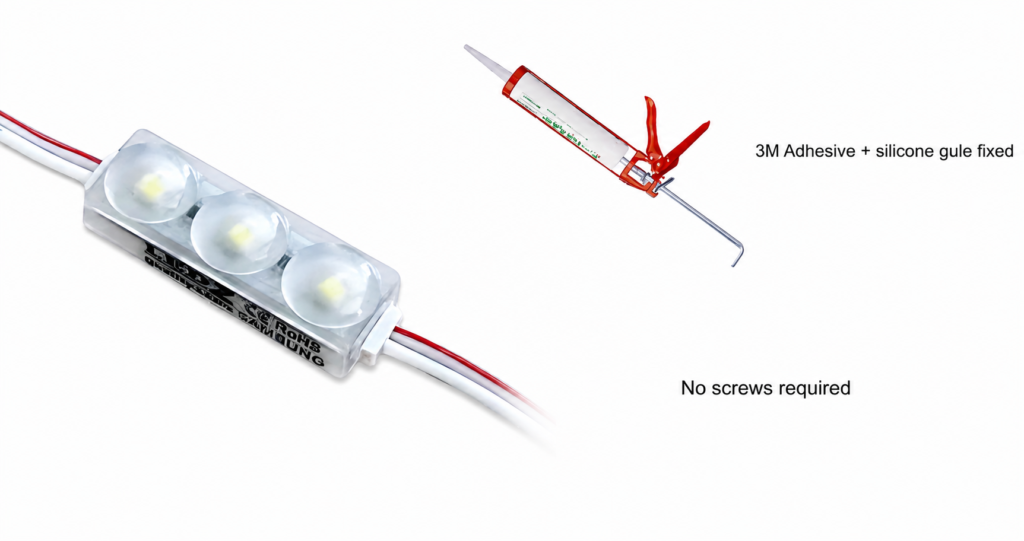

| Mounting | 3M VHB Double Sided Tape or screw mount |
| Wire Length | 50mm |
| Max Ambient Temp | 60° C |
| Waterproofing | Â (IP67) |
| Warranty | 5 Years |

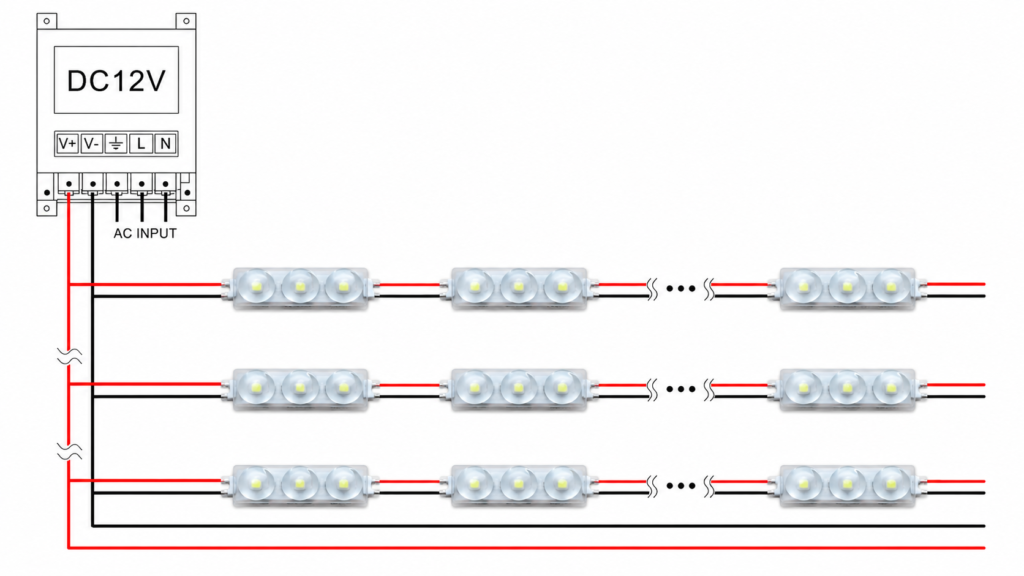

| Max Module | 20 Modules Per String in Series |
| Datasheet |  |
