* Actual products may vary slightly due to continuous design enhancments.

What Power Supply Do I Need?

Strip Light Length (M)	Power Supply Required
1-3M	60W Power Supply
4-7M	150W Power Supply
8-11M	200W Power Supply
12-17M	400W Power Supply

Essential Components

Essential Components for a 12V SMD RGB LED Strip Light Installation

To ensure a safe, reliable, and long-lasting installation, you'll need the following components:

12V DC LED Power Supply – Converts mains power to 12V DC and should be sized with at least 20% spare capacity above the total wattage of the LED strip.
12V SMD RGB LED Strip Light – Choose the appropriate LED density, brightness, length, colour capability, and IP rating for your application.
RGB Controller – Required to control RGB colours, brightness, colour-changing effects, and dynamic lighting functions.
LED Strip Connectors or Soldering Supplies – Used to join strip sections or create custom wiring connections.
Low-Voltage Cable – Suitable gauge cable for connecting the power supply and RGB controller to the LED strip, particularly for longer installations.
Aluminium LED Profile (Recommended) – Provides improved heat dissipation, protects the strip, and creates a professional finish with optional diffuser covers.
Mounting Accessories – Clips, brackets, screws, or high-quality double-sided adhesive tape for secure installation.
Wire Connectors or Terminal Blocks – Ensure safe and reliable electrical connections.
Heat Shrink Tubing or Insulation – Protects soldered joints and exposed wiring from damage and moisture.
End Caps and Silicone Sealant (For Waterproof Installations) – Helps maintain the IP rating after cutting or modifying waterproof strips.

Using quality components, a correctly sized 12V power supply, and a compatible RGB controller will help improve performance, maintain reliable colour control, reduce voltage drop, and extend the lifespan of your 12V SMD RGB LED Strip Light installation.

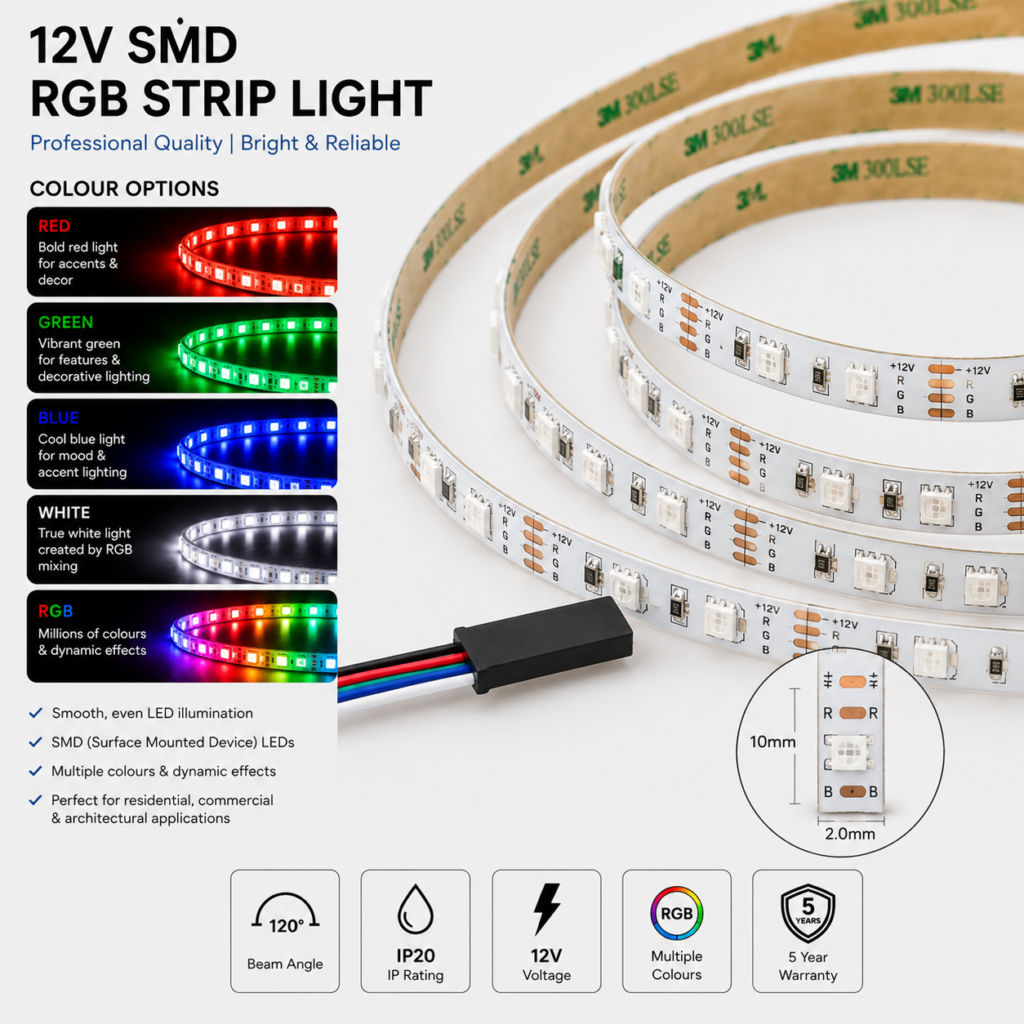

12V SMD RGB Colour-Changing

18w RGB Colour Changing Lights

Online Price:
Original price was: R263.00.Current price is: R237.00. Vat Incl.

Unit: Per Metre

Input	24V
Watts Per M	18W
Colours	RGB+4000K
Waterproof	Not Waterproof
Dimensions	10mm x 4mm
Cut Points	Every 50mm
Mounting	3M Double Sided Tape
Warranty	3 Years

What Power Supply Do I Need?

Strip Light Length (M)	Power Supply Required
1-3M	60W Power Supply
4-7M	150W Power Supply
8-11M	200W Power Supply
12-17M	400W Power Supply

Essential Components

Essential Components for a 12V SMD RGB LED Strip Light Installation

To ensure a safe, reliable, and long-lasting installation, you'll need the following components:

12V DC LED Power Supply – Converts mains power to 12V DC and should be sized with at least 20% spare capacity above the total wattage of the LED strip.
12V SMD RGB LED Strip Light – Choose the appropriate LED density, brightness, length, colour capability, and IP rating for your application.
RGB Controller – Required to control RGB colours, brightness, colour-changing effects, and dynamic lighting functions.
LED Strip Connectors or Soldering Supplies – Used to join strip sections or create custom wiring connections.
Low-Voltage Cable – Suitable gauge cable for connecting the power supply and RGB controller to the LED strip, particularly for longer installations.
Aluminium LED Profile (Recommended) – Provides improved heat dissipation, protects the strip, and creates a professional finish with optional diffuser covers.
Mounting Accessories – Clips, brackets, screws, or high-quality double-sided adhesive tape for secure installation.
Wire Connectors or Terminal Blocks – Ensure safe and reliable electrical connections.
Heat Shrink Tubing or Insulation – Protects soldered joints and exposed wiring from damage and moisture.
End Caps and Silicone Sealant (For Waterproof Installations) – Helps maintain the IP rating after cutting or modifying waterproof strips.

Frequently Asked Questions

Frequently Asked Questions

1. What accessories do I require for a basic installation and how do I connect them?

For a general or basic 24V SMD RGB LED Strip Light installation, you would require:

1 × 24V DC Power Supply & Power Cord
1 × RGB Controller
24V SMD RGB LED Strip Light
Compatible RGB Cable and Connectors

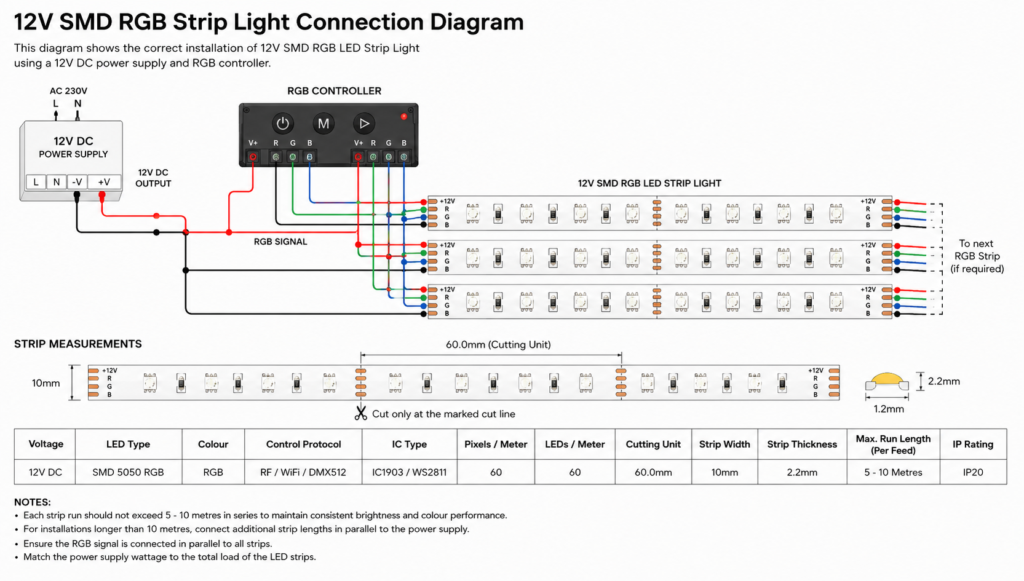

See the installation diagram for guidance on the correct connection method.

2. Are there any other items or optional extras that I may need?

Depending on your application, you may also need:

Aluminium LED Profiles
Insulated 2-Core Flex to extend the cable between the Power Supply and Strip Light
4-Core RGB Cable for connecting the controller to the Strip Light
RGB Connectors or Terminal Blocks
Mounting clips or brackets
Additional double-sided adhesive tape
Soldering supplies and heat shrink tubing for custom connections

3. What Voltage Power Supply would I use?

Always use a Power Supply with the same voltage as the Strip Light.

For a 42V SMD RGB Strip Light:

24V Strip Light → 24V DC Power Supply

Never connect a 24V LED Strip Light directly to 230V AC mains power.

4. What size Power Supply would I need?

Calculate the required power using:

Strip Light Length (M) × Power (Watts/M) + 15%

Example:

5M × 10 Watts/M = 50 Watts
50 Watts + 15% = 57.5 Watts

Therefore, a 60W or 75W 24V Power Supply would be sufficient.

For additional headroom and long-term reliability, a slightly larger correctly rated power supply can be selected.

5. What are the benefits of installing Aluminium Profiles?

Aluminium Profiles help to:

Conceal wiring and create a cleaner installation
Act as an additional heat sink
Protect the LED strip from accidental damage and dust
Provide a professional, finished appearance
Help improve the lifespan and performance of the LED Strip Light

When using SMD RGB Strip Lights, an aluminium profile also helps create a neat, professional installation while improving heat dissipation.

6. Can I install 24V SMD RGB LED Strip Lights myself?

Yes. The low-voltage side of a 24V LED Strip Light installation is relatively straightforward when using compatible components.

However, any connection of the Power Supply to 230V AC mains electricity should be completed according to local electrical regulations. If you are unsure, consult a qualified electrician.

7. Do you have DIY Kits with everything included?

Yes. We have a variety of DIY Kits designed to simplify LED Strip Light installations and include easy-to-follow instructions for basic applications.

For RGB installations, ensure the kit includes a compatible RGB controller and the required RGB connections.

8. Can I shock myself?

The 24V DC output side of the Power Supply is low voltage, so the risk of a dangerous electric shock under normal conditions is significantly lower than with mains electricity.

However, the 230V AC input side of the Power Supply is dangerous. Always complete and check the low-voltage and RGB connections before connecting the Power Supply to mains electricity.

9. Can 12V SMD RGB Strip Lights bend around corners or curved shapes?

24V SMD RGB LED Strip Lights are flexible and can be used for many curved and decorative applications.

However, they should not be sharply bent, folded or twisted. Always follow the manufacturer's recommended bending radius and avoid putting excessive stress on the PCB, LEDs, or solder joints.

10. Can I cut the Strip Lights?

Yes. 24V SMD RGB LED Strip Lights can be cut at their designated cut points.

Always cut directly along the marked cut line using suitable scissors or a sharp blade. Cutting anywhere else may damage the circuit or cause sections of the strip to stop working.

After cutting, ensure the power and RGB connections are correctly reconnected before operating the strip.

For hassle-free installations, our Cut & Solder Customising Service can cut the Strip Lights to your required lengths, solder the connections and test them before installation.

11. How are the Strip Lights mounted?

The Strip Lights feature double-sided adhesive backing for quick and convenient mounting onto a clean, smooth and dry surface.

For a more secure and professional installation, an Aluminium LED Profile or suitable mounting system is recommended where applicable.

12. Can they be dimmed and colour controlled?

Yes. 24V SMD RGB LED Strip Lights can be dimmed and colour controlled using a compatible RGB controller.

Depending on the specific controller, RGB control can provide brightness adjustment, colour selection, colour-changing effects, and dynamic lighting programmes.

The RGB controller and power supply must be correctly rated and connected according to the manufacturer's wiring instructions.

Installation & Setup

24V SMD RGB LED Strip Light Installation & Setup

Installing a 24V SMD RGB LED Strip Light is straightforward when the correct components are used.

Step 1: Plan Your Installation

Measure the installation area, determine the total strip length required, and calculate the total wattage to select a suitable 12V DC power supply with at least 20% spare capacity. Plan the RGB controller and cable routing before installation.

Step 2: Prepare the Mounting Surface

Ensure the surface is clean, dry, and free from dust or grease. For the best performance and longest lifespan, install the strip inside a suitable aluminium LED profile where possible.

Step 3: Cut the Strip (If Required)

Only cut the LED strip at the marked cut points. Cutting elsewhere may damage the strip or prevent sections from operating correctly.

Step 4: Connect the Strip

Connect the strip to the 24V DC power supply and compatible RGB controller using suitable connectors or by soldering wires to the designated connection pads. Always observe the correct power polarity (+ and –) and ensure the RGB connections are correctly wired.

Step 5: Test Before Mounting

Power the system briefly to confirm that the strip illuminates correctly and that the RGB controller can select colours, adjust brightness, and operate the required colour-changing effects before permanently fixing it in place.

Step 6: Secure the Strip

Remove the adhesive backing and press the strip firmly onto the mounting surface or into the aluminium profile. Avoid excessive bending, twisting, or folding during installation.

Step 7: Connect to Power & RGB Control

Connect the 24V power supply to the mains according to local electrical regulations and connect the RGB controller according to the manufacturer's instructions. If you're unsure about mains wiring, consult a qualified electrician.

Installation Tips

Avoid sharp bends and do not exceed the minimum bend radius.
Use aluminium profiles where possible to improve heat dissipation and protect the LED strip.
For longer installations, use appropriate power injection points to help minimize voltage drop.
Ensure the RGB controller and connections are correctly wired for reliable colour control.
Do not power the strip while it is still tightly wound on the reel.
Choose an IP-rated strip suitable for the installation environment, especially in damp or outdoor locations.
Ensure all power and RGB connections are secure and properly insulated.
Always test the colours, brightness, and RGB effects before permanently mounting the strip.

Following these steps will help ensure reliable performance, consistent illumination, accurate colour control, and a long service life from your 24V SMD RGB LED Strip Light installation.

Troubleshooting & Recommendations

24V SMD RGB LED Strip Light Troubleshooting & Recommendations

Common Issues & Solutions

LED strip won't turn on

Check that the power supply is providing 24V DC.
Verify all power connections and polarity (+ and –).
Ensure the power supply is switched on and correctly sized for the total load.
Check that the RGB controller is powered and correctly connected.

Strip is dim or unevenly lit

The power supply may be undersized.
Excessive voltage drop can occur on longer runs—use appropriate power injection points.
Check for loose, damaged, or poorly connected wiring.
Confirm that the RGB controller is correctly configured.

Only part of the strip lights up

Inspect for cuts, damaged sections, or incorrect connections.
Ensure connectors are fully seated or solder joints are secure.
Check the RGB wiring between the controller and strip.
Test the strip in smaller sections to identify the faulty area.

Flickering lights or incorrect colours

Check for loose wiring or poor electrical connections.
Confirm the 24V power supply is stable and not overloaded.
Check the RGB controller and its connections.
Ensure the RGB wires are connected to the correct terminals.

RGB colour control not working

Check the RGB controller input and output connections.
Confirm the controller is compatible with 12V RGB LED strips.
Check the polarity and RGB wiring between the controller and strip.
Test different colour settings to determine whether the issue is with the controller or strip.

Adhesive won't stick

Clean the mounting surface thoroughly before installation.
Install on a smooth, dry, grease-free surface.
Use an aluminium LED profile or mounting clips for a more secure, long-term installation.

Recommendations

Use a quality 24V DC LED power supply with at least 20% spare capacity.
Install the strip in an aluminium profile where possible to improve heat dissipation and protect the LEDs.
Avoid bending the SMD strip sharply or twisting it during installation.
Never power the strip while it is still rolled up on the reel, as heat can build up and damage the LEDs.
For longer installations, use appropriate power injection points to maintain consistent brightness and colour.
Use a compatible RGB controller for reliable colour selection, dimming, and colour-changing effects.
Select the correct IP rating for your environment—IP20 for indoor dry areas and waterproof versions for damp or outdoor applications.
Always test the strip, colours, brightness, and controller functions before permanently mounting it.
Disconnect the power before cutting, connecting, or servicing the LED strip.

Following these recommendations will help maximise the performance, efficiency, colour control, and lifespan of your 12V SMD RGB LED Strip Light while reducing the likelihood of installation issues.

12V SMD RGB LED Strip Light Safety Tips

To ensure safe installation and reliable operation, follow these important safety guidelines:

Always disconnect the power before installing, cutting, or modifying the LED strip.
Only use a compatible 24V DC LED power supply that is correctly rated for the total wattage of the installation.
Choose a power supply with at least 20% spare capacity to prevent overloading.
Observe the correct polarity (+ and –) when making power connections.
Do not connect the LED strip directly to 230V AC mains power.
Never power the strip while it is tightly wound on the reel, as heat buildup can damage the LEDs.
Install the strip on a clean, dry, and heat-resistant surface.
For the best performance and longest lifespan, use an aluminium LED profile to improve heat dissipation.
Avoid excessive bending, twisting, or folding, and only cut the strip at the designated cut points.
Keep all power and RGB connections secure and properly insulated to prevent short circuits or colour-control faults.
Use waterproof (IP-rated) LED strips and properly sealed connections in damp or outdoor environments.
Ensure adequate ventilation around the power supply and avoid covering it with insulation or other materials.
If you're connecting the power supply to mains electricity and are unsure of the wiring, consult a qualified electrician.
Regularly inspect the installation for loose connections, damaged cables, or signs of overheating.
Keep LED strips, power supplies, controllers, and wiring out of reach of young children and away from flammable materials.

Following these safety precautions will help ensure a safe installation, reliable performance, accurate RGB colour control, and a long service life for your 24V SMD RGB LED Strip Light.

Applications & Use Cases

24V SMD RGB LED Strip Light Applications & Use Cases

24V SMD RGB LED Strip Lights are a versatile lighting solution suitable for both residential and commercial projects. Their SMD technology provides bright, consistent illumination, while RGB control allows a wide range of colours and dynamic lighting effects.

Common applications include:

Architectural feature lighting
Signage and illuminated lettering
Retail displays and shop fittings
Stage and entertainment lighting
Cove and accent lighting
Ceiling and wall feature lighting
Hospitality and restaurant ambience
Hotel and bar lighting
Exhibition stands and trade show displays
Reception desks and commercial interiors
Display cabinets and shelving
Decorative furniture lighting
Event and venue lighting
TV units and entertainment areas
Residential feature lighting
DIY colour-changing lighting projects

With their 12V design, SMD technology, and RGB colour control, these LED strips are ideal for applications requiring vibrant, customisable illumination and dynamic colour effects. They can be used with compatible RGB controllers and power supplies, providing flexible control for both functional, decorative, and atmospheric lighting installations.

About

24V SMD RGB LED Strip Lights

Our 24V SMD RGB LED Strip Lights provide vibrant, versatile illumination with a wide range of colour options, making them ideal for both decorative and functional lighting applications. SMD (Surface Mounted Device) technology delivers bright and consistent illumination, while RGB control allows for red, green, blue, and numerous combined colours and dynamic lighting effects. They are perfect for architectural features, signage, retail displays, entertainment spaces, hospitality venues, accent lighting, and residential or commercial installations.

Colours & Diagrams

12V SMD RGB Strip Lights are available with a variety of colour options and dynamic lighting effects, including:

Red: Provides a bold, vibrant red light ideal for decorative, accent, entertainment and feature lighting.
Green: Creates a bright green effect suitable for decorative, architectural, entertainment and feature lighting.
Blue: Produces a cool blue light ideal for decorative, entertainment, accent and atmospheric lighting.
Yellow: Creates a warm yellow effect by combining red and green, suitable for decorative and feature lighting.
Purple: Produces a rich purple effect by combining red and blue, ideal for decorative and entertainment applications.
Cyan: Creates a cool cyan effect by combining green and blue, suitable for modern decorative and feature lighting.
White: Produces a white lighting effect by combining the RGB colour channels, depending on the controller and LED configuration.
RGB: Provides a wide range of colours and dynamic lighting effects, allowing you to create customisable colour-changing displays using a compatible RGB controller.

12v smd rgb colour changing

12V SMD RGB Strip Diagram
Diagram of a 12V SMD RGB LED Strip Light showing its cut intervals and physical dimensions. The 12V RGB strip can be cut at the designated cut points, allowing sections to be customised to the required installation length. The strip features a slim, flexible SMD profile suitable for a wide range of residential, commercial, signage, display, architectural, and decorative lighting applications. Always cut only at the marked cut lines to ensure proper operation.

12v smd rgb colour changing

Illustration of the essential components for installing a 12V SMD RGB Strip Light. The image shows a 12V SMD RGB strip, an aluminum profile channel with diffuser, and the strip's pre-applied 3M double-sided adhesive tape. While the adhesive provides quick and easy installation, an aluminum profile is recommended to improve heat dissipation, protect the LED strip, create a cleaner finish, and help maximize the lifespan and performance of the lighting system.

12v smd rgb colour changing

12V DMX COB Strip Light Connection Diagram

12V DMX COB LED Strip Light wiring diagram showing the correct installation method using a 12V DC power supply and compatible DMX controller. Each LED strip run should be connected according to the manufacturer's recommended maximum run length to maintain consistent brightness and reliable DMX signal transmission. For longer installations, connect additional strip lengths in parallel to the power supply and ensure the DMX signal is correctly connected between sections. This setup helps ensure smooth, continuous illumination, accurate colour control, and optimal performance across the entire installation.

12v smd rgb colour changing
