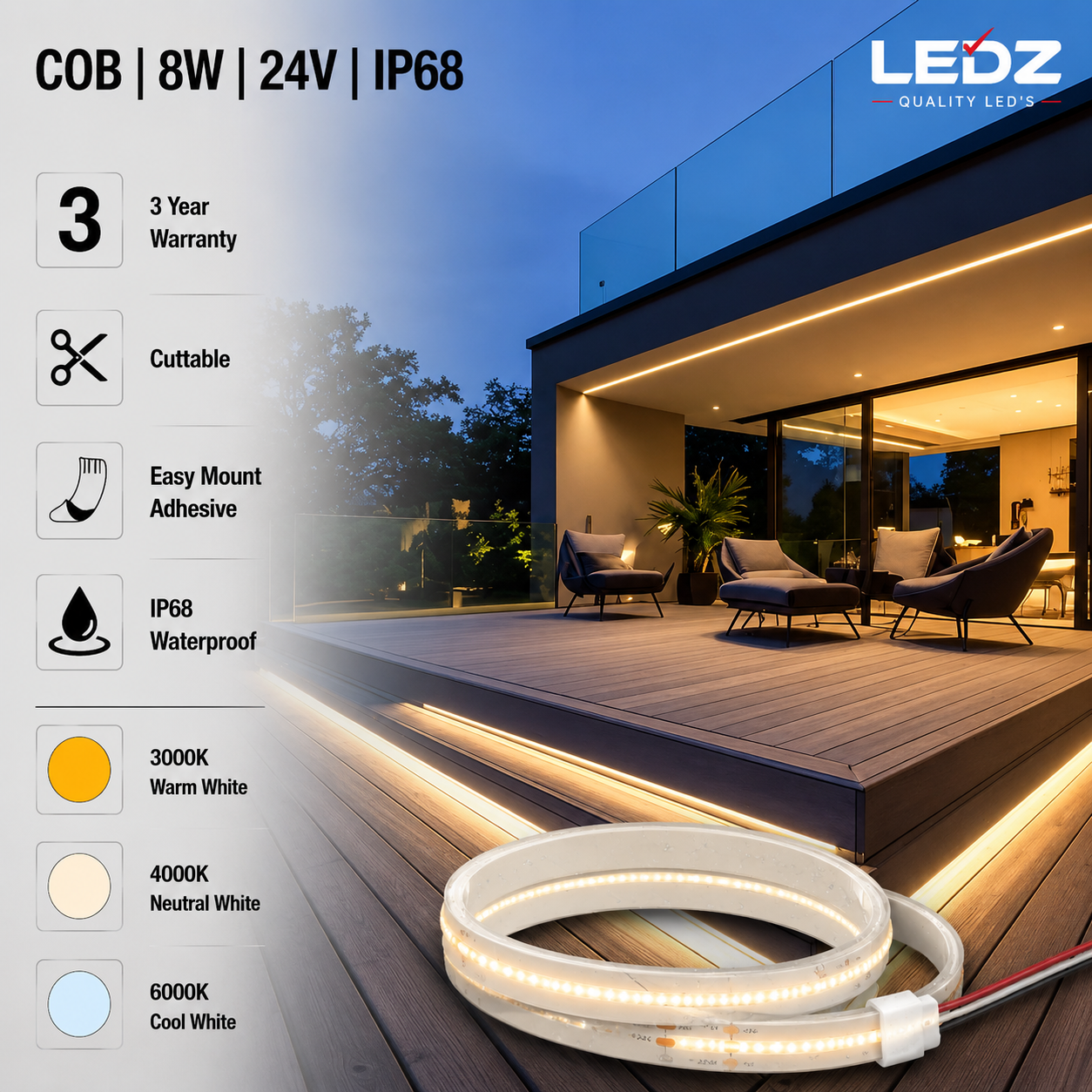

led strip lights / cob / 24v / 8w/m / 3000k / 4000k / 6000k / ip68 / 3 year warranty

* Actual products may vary slightly due to continuous design enhancments.

What Power Supply Do I Need?

Strip Light Length (M)	Power Supply Required
1-3M	36W Power Supply
4-7M	80W Power Supply
8-11M	150W Power Supply
12-17M	200W Power Supply
18 - 23M	250W Power Supply

Essential Components

Essential Components for a 24V COB Waterproof LED Strip Light Installation

To ensure a safe, reliable, and long-lasting installation, you'll need the following components:

24V DC LED Power Supply – Converts mains power to 24V DC and should be sized with at least 20% spare capacity above the total wattage of the LED strip.
24V COB Waterproof LED Strip Light – Choose the appropriate brightness, colour temperature, length, and IP rating for your application.
LED Strip Connectors or Soldering Supplies – Used to join strip sections or create custom wiring connections. Waterproof connectors or properly sealed soldered joints should be used for outdoor installations.
Low-Voltage Cable – Suitable gauge cable for connecting the power supply to the LED strip, especially for longer cable runs.
Aluminium LED Profile (Recommended) – Provides improved heat dissipation, protects the strip, and creates a professional finish with optional diffuser covers.
LED Dimmer or Controller (Optional) – Allows brightness adjustment or control of compatible LED strip versions.
Mounting Accessories – Clips, brackets, screws, or high-quality double-sided adhesive tape for secure installation.
Wire Connectors or Terminal Blocks – Ensure safe and reliable electrical connections.
Heat Shrink Tubing or Insulation – Protects soldered joints and exposed wiring from damage and moisture.
End Caps and Silicone Sealant (For Waterproof Installations) – Helps maintain the waterproof protection after cutting or modifying the strip. All cut ends and connection points should be properly sealed.

Using quality components and correctly sizing the power supply will improve performance, reduce voltage drop, protect connections from moisture, and extend the lifespan of your 24V COB Waterproof LED Strip Light installation.

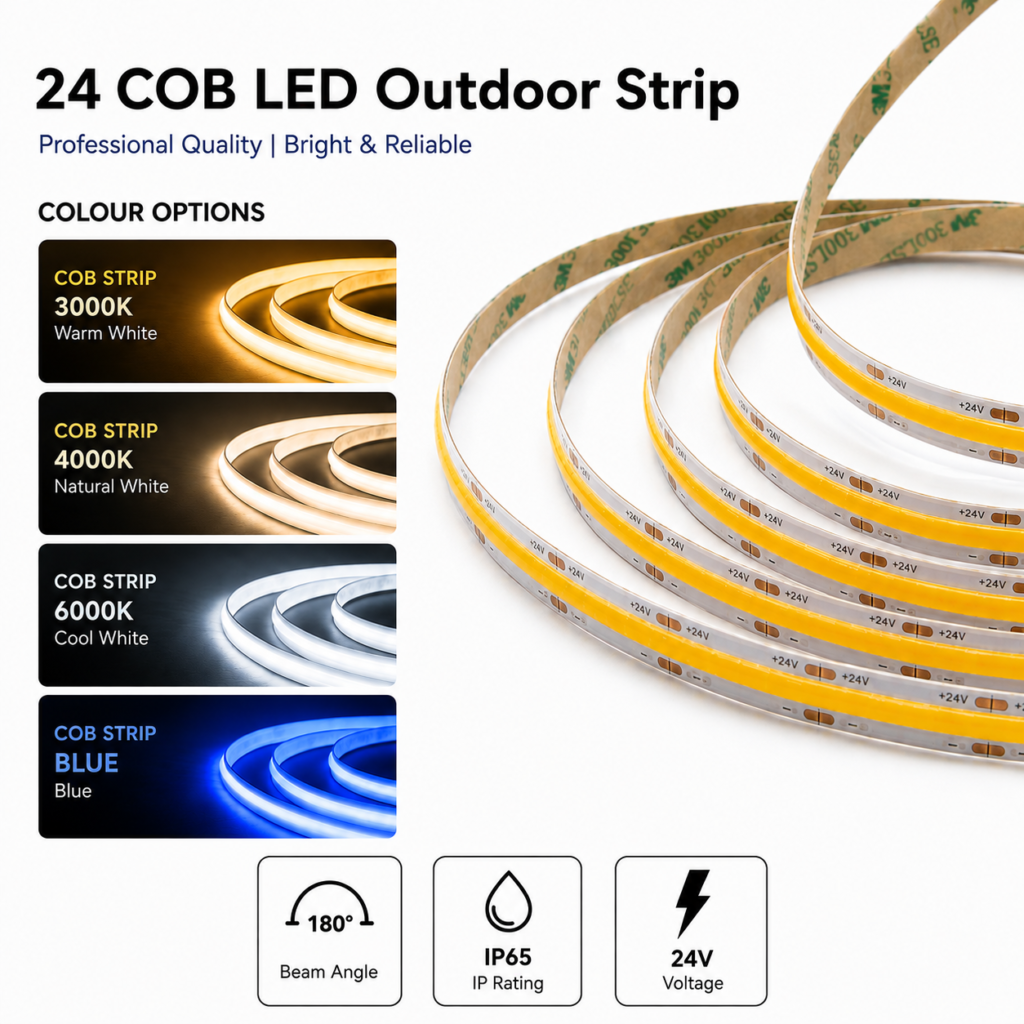

24V COB LED Strip Lights

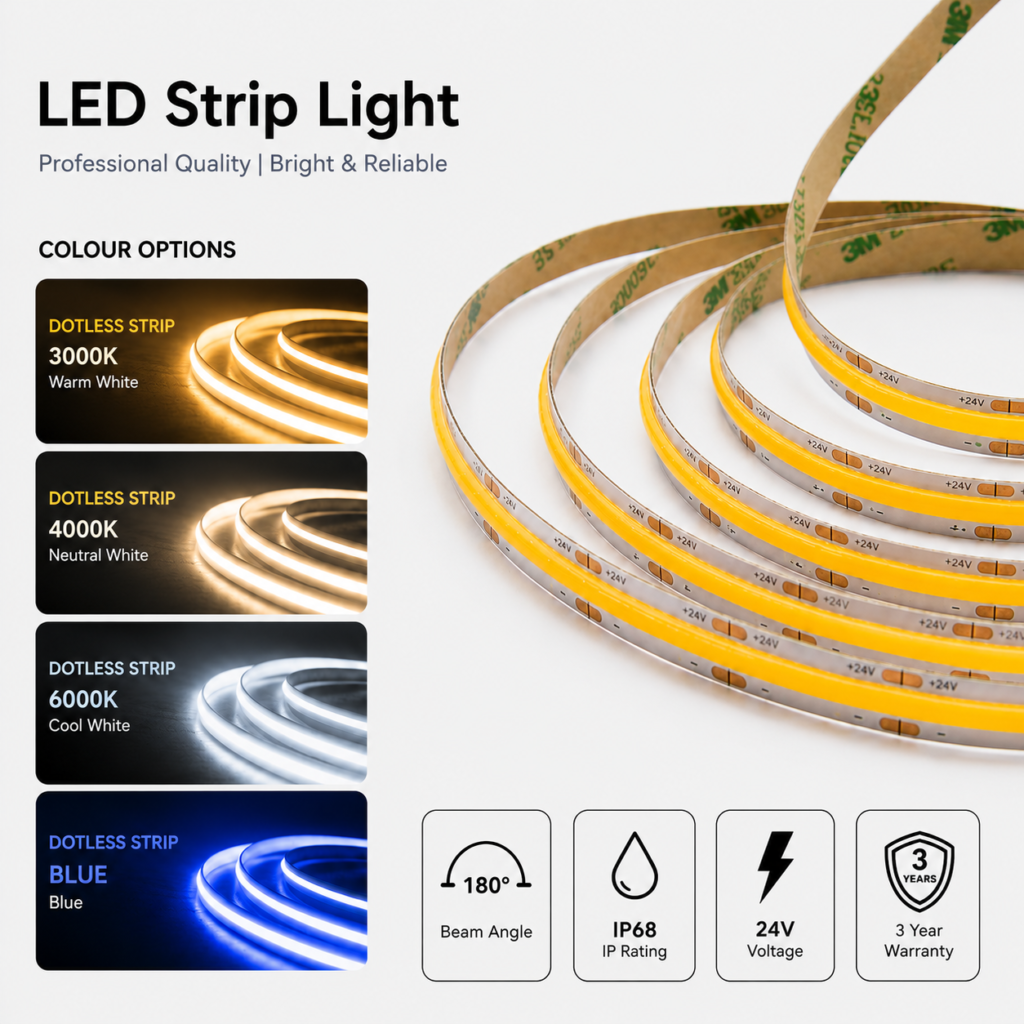

8w | Warm, Natural, Cool White

Online Price:
Original price was: R95.00.Current price is: R86.00. Vat Incl.

Unit: Per M

What Power Supply Do I Need?

Strip Light Length (M)	Power Supply Required
1-3M	36W Power Supply
4-7M	80W Power Supply
8-11M	150W Power Supply
12-17M	200W Power Supply
18 - 23M	250W Power Supply

Essential Components

Essential Components for a 24V COB Waterproof LED Strip Light Installation

To ensure a safe, reliable, and long-lasting installation, you'll need the following components:

24V DC LED Power Supply – Converts mains power to 24V DC and should be sized with at least 20% spare capacity above the total wattage of the LED strip.
24V COB Waterproof LED Strip Light – Choose the appropriate brightness, colour temperature, length, and IP rating for your application.
LED Strip Connectors or Soldering Supplies – Used to join strip sections or create custom wiring connections. Waterproof connectors or properly sealed soldered joints should be used for outdoor installations.
Low-Voltage Cable – Suitable gauge cable for connecting the power supply to the LED strip, especially for longer cable runs.
Aluminium LED Profile (Recommended) – Provides improved heat dissipation, protects the strip, and creates a professional finish with optional diffuser covers.
LED Dimmer or Controller (Optional) – Allows brightness adjustment or control of compatible LED strip versions.
Mounting Accessories – Clips, brackets, screws, or high-quality double-sided adhesive tape for secure installation.
Wire Connectors or Terminal Blocks – Ensure safe and reliable electrical connections.
Heat Shrink Tubing or Insulation – Protects soldered joints and exposed wiring from damage and moisture.
End Caps and Silicone Sealant (For Waterproof Installations) – Helps maintain the waterproof protection after cutting or modifying the strip. All cut ends and connection points should be properly sealed.

Frequently Asked Questions

Frequently Asked Questions

1. What accessories do I require for a basic installation and how do I connect them?

For a general or basic 24V COB Waterproof LED Strip Light installation, you would require:

1 × 24V DC Power Supply & Power Cord
1 × Switch, Dimmer or Compatible Controller
Suitable low-voltage cable and connectors

See the installation diagram for guidance.

2. Are there any other items or optional extras that I may need?

Depending on your application, you may need:

Aluminium Profiles
Insulated 2-Core Flex (to extend the wire from the Power Supply to the Strip Light)
2-Core Wire Connectors (for tool-free wire connections)
Waterproof Connectors
End Caps and Silicone Sealant (for maintaining waterproof protection after cutting)
Mounting Clips or Brackets

3. What Voltage Power Supply would I use?

Always use the same voltage Power Supply as the Strip Light.

For example:

12V Strip Light → 12V Power Supply
24V COB Waterproof Strip Light → 24V DC Power Supply

Never connect a 24V LED Strip Light directly to 230V AC mains power.

4. What size Power Supply would I need?

Calculate the required power using:

Strip Light Length (M) × Power (Watts/M) + 20% Spare Capacity

Example:

5M × 10 Watts/M = 50 Watts
50 Watts + 20% = 60 Watts

Therefore, a 60W or larger 24V Power Supply would be suitable, provided it meets the total load requirements.

5. What are the benefits of installing Aluminium Profiles?

Aluminium Profiles help to:

Improve heat dissipation
Protect the LED strip from physical damage
Create a smooth, neat and continuous line of light
Provide a professional installation finish
Help extend the lifespan of the LED strip

6. Can I install 24V COB Waterproof LED Strip Lights myself?

Yes, the low-voltage side of the installation is generally straightforward and suitable for DIY applications. However, any connection to 230V mains power should be completed by a qualified electrician where required by local regulations.

7. Do you have DIY Kits with everything included?

DIY kits may be available depending on the specific LED strip and application. These can include the essential components required for a basic installation. Always check that the included power supply and accessories are compatible with the 24V COB Waterproof LED Strip Light.

8. Can I shock myself?

The 24V DC output side of the Power Supply is low voltage and presents a much lower electric shock risk than mains electricity. However, electrical connections should still be handled carefully.

Always complete and check the low-voltage connections before connecting the Power Supply to the 230V mains. Never work on mains wiring unless you are suitably qualified.

9. Can the Strip Lights bend around corners or curved shapes?

COB Waterproof Strip Lights are flexible, but they should not be sharply bent, twisted, folded, or bent beyond the manufacturer's specified minimum bend radius, as this may damage the strip.

For corners or complex installations, you can use:

Suitable LED Strip Connectors
Short cable connections between strip sections
Properly soldered connections

Always ensure connections are properly sealed when installing the waterproof strip outdoors or in areas exposed to moisture.

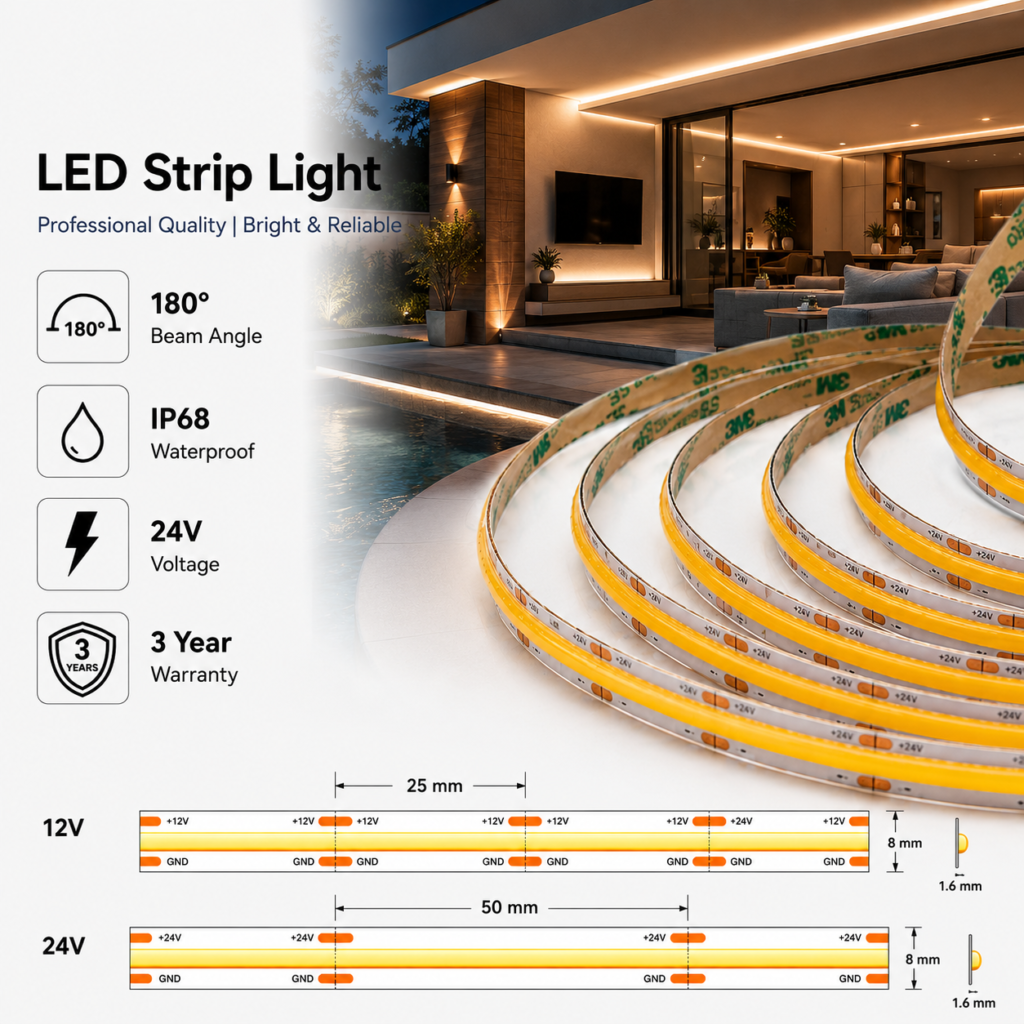

10. Can I cut the Strip Lights?

Yes. 24V COB Waterproof LED Strip Lights can be cut at the clearly marked cut-lines to achieve the required length.

After cutting a waterproof strip, the exposed end must be properly sealed using a suitable end cap and silicone sealant to maintain its waterproof protection.

For hassle-free installations, a professional cut-and-solder service may also be available, depending on the product.

11. How are the Strip Lights mounted?

COB Waterproof Strip Lights may have adhesive backing for easy mounting. The mounting surface should be clean, dry, smooth, and free from dust and grease before installation.

For a more secure and long-lasting installation, particularly outdoors, consider using:

Aluminium Profiles
Mounting Clips
Suitable brackets or fixing accessories

12. Can they be dimmed?

Yes! Compatible 24V COB LED Strip Lights can be dimmed using a suitable 24V DC LED dimmer or controller.

Always ensure the dimmer or controller is rated for the total wattage of the LED strip installation.

For waterproof installations, ensure all electrical connections and controllers are suitably protected from moisture and environmental exposure.

Installation & Setup

24V COB Waterproof LED Strip Light Installation & Setup

Installing a 24V COB Waterproof LED Strip Light is straightforward when the correct components are used and all connections are properly sealed.

Step 1: Plan Your Installation

Measure the installation area, determine the total strip length required, and calculate the total wattage to select a suitable 24V DC power supply with at least 20% spare capacity. Consider the IP rating required for the installation environment.

Step 2: Prepare the Mounting Surface

Ensure the surface is clean, dry, smooth, and free from dust or grease. For the best performance and heat dissipation, install the strip on a suitable surface or compatible aluminium LED profile where appropriate.

Step 3: Cut the Strip (If Required)

Only cut the LED strip at the marked cut points. Cutting elsewhere may damage the strip. After cutting a waterproof strip, the exposed end must be properly sealed using a suitable end cap and silicone sealant to maintain its waterproof protection.

Step 4: Connect the Strip

Connect the strip to the 24V DC power supply using compatible LED strip connectors or by soldering the wires to the designated copper pads. Always observe the correct polarity (+ and –). For outdoor or wet installations, ensure all connections are properly waterproofed and protected.

Step 5: Test Before Mounting

Power the strip briefly to confirm all sections illuminate correctly before permanently fixing it in place. Do not operate the strip while it is tightly wound on the reel.

Step 6: Secure the Strip

Remove the adhesive backing and press the strip firmly onto the prepared mounting surface or into a compatible aluminium profile. Avoid excessive bending, twisting, or sharp bends during installation.

Step 7: Seal and Protect Connections

For waterproof installations, ensure all cut ends, connectors, soldered joints, and cable entry points are properly sealed. Use suitable waterproof end caps, heat shrink tubing, and silicone sealant where required to prevent moisture from reaching the LED strip or electrical connections.

Step 8: Connect to Power

Connect the 24V DC power supply to the mains according to local electrical regulations. If you're unsure about mains wiring, consult a qualified electrician.

Installation Tips

Avoid sharp bends and do not exceed the minimum bend radius.
Use suitable mounting surfaces or compatible aluminium profiles to improve heat dissipation and maximize LED lifespan.
Do not exceed the recommended maximum continuous run length. For longer installations, use parallel connections or power injection as required.
Ensure power injection points are correctly connected to the 24V supply and properly waterproofed.
Do not power the strip while it is still tightly wound on the reel.
Choose an IP-rated strip suitable for the installation environment, especially in damp or outdoor locations.
Properly reseal the strip after cutting to maintain its waterproof protection.
Keep power supplies and electrical connections in suitably protected locations and use equipment with an appropriate IP rating for the environment.

Following these steps will help ensure reliable performance, consistent brightness, effective moisture protection, and a long service life from your 24V COB Waterproof LED Strip Light installation.

Troubleshooting & Recommendations

24V COB Waterproof LED Strip Light Troubleshooting & Recommendations

Common Issues & Solutions

LED strip won't turn on

Check that the power supply is providing 24V DC.
Verify all wiring connections and polarity (+ and –).
Ensure the power supply is switched on and correctly sized for the load.
For waterproof strips, check that sealed connectors and end caps are properly installed and that moisture has not entered the connections.

Strip is dim or unevenly lit

The power supply may be undersized.
Excessive voltage drop can occur on long runs—use appropriate power injection or connect additional runs directly to the power supply.
Check for loose, damaged, or poorly sealed connections.
Ensure the total strip length is suitable for the power supply and installation method.

Only part of the strip lights up

Inspect for cuts, damaged sections, or signs of moisture ingress.
Ensure connectors are fully seated or solder joints are secure.
Check that waterproof end caps and seals are intact.
Test the strip in smaller sections to identify the faulty area.

Flickering lights

Check for loose wiring or poor electrical connections.
Confirm the power supply is stable and not overloaded.
Ensure any dimmer or controller is compatible with 24V DC COB LED strips.
Inspect waterproof connections for corrosion or moisture damage.

Adhesive won't stick

Clean the mounting surface before installation.
Install on a smooth, dry, and suitable surface.
Ensure the waterproof coating or backing is clean and free from contaminants.
Use an aluminium LED profile or mounting clips for a more secure, long-term installation.

Recommendations

Use a quality 24V DC LED power supply with at least 20% spare capacity.
Install the strip on a suitable mounting surface or in an aluminium profile to improve heat dissipation, protect the LEDs, and create a professional finish.
Avoid bending the strip sharply, twisting it, or exceeding the manufacturer's minimum bend radius during installation.
Never power the strip while it is still rolled up on the reel, as heat can build up and damage the LEDs.
For longer installations, use appropriate power injection or parallel connections to maintain consistent brightness and reduce voltage drop.
Select the correct IP rating for your environment, particularly for damp or outdoor applications.
Properly seal all cut ends, connectors, and connection points after modifying a waterproof strip.
Always test the strip before permanently mounting it.
Disconnect the power before cutting, connecting, or servicing the LED strip.

Following these recommendations will help maximise the performance, efficiency, moisture protection, and lifespan of your 24V COB Waterproof LED Strip Light while reducing the likelihood of installation issues.

24V COB Waterproof LED Strip Light Safety Tips

To ensure safe installation and reliable operation, follow these important safety guidelines:

Always disconnect the power before installing, cutting, or modifying the LED strip.
Only use a compatible 24V DC LED power supply that is correctly rated for the total wattage of the installation.
Choose a power supply with at least 20% spare capacity to prevent overloading.
Observe the correct polarity (+ and –) when making electrical connections.
Do not connect the LED strip directly to 230V AC mains power.
Never power the strip while it is tightly wound on the reel, as heat buildup can damage the LEDs.
Install the strip on a clean, dry, and heat-resistant mounting surface.
For the best performance and longest lifespan, use an aluminium LED profile where appropriate to improve heat dissipation.
Avoid excessive bending, twisting, or folding, and only cut the strip at the designated cut points.
Keep all electrical connections secure and properly insulated to prevent short circuits.
For outdoor or damp environments, use a suitably IP-rated waterproof LED strip and ensure all connections, joints, and cut ends are properly sealed.
Do not assume the strip's waterproof rating applies to the power supply or connectors; each component must be appropriately rated and protected for its installation environment.
Ensure adequate ventilation around the power supply and avoid covering it with insulation or other materials.
If you're connecting the power supply to mains electricity and are unsure of the wiring, consult a qualified electrician.
Regularly inspect the installation for loose connections, damaged cables, cracked waterproof coatings, corrosion, or signs of overheating.
Keep LED strips, power supplies, and wiring out of reach of young children and away from flammable materials.

Following these safety precautions will help ensure a safe installation, reliable performance, effective moisture protection, and a long service life for your 24V COB Waterproof LED Strip Light.

Applications & Use Cases

24V COB Waterproof LED Strip Light Applications & Use Cases

24V COB Waterproof LED Strip Lights are a versatile lighting solution suitable for residential, commercial, architectural, and outdoor projects. Their continuous, dot-free illumination creates a clean, modern appearance while providing bright, even lighting. The waterproof construction also provides added protection in areas exposed to moisture and environmental conditions.

Common applications include:

Outdoor architectural feature lighting
Under-cabinet kitchen lighting
Shelf and display cabinet illumination
Retail displays and shop fittings
Architectural feature lighting
Cove and cornice lighting
Ceiling recess and bulkhead lighting
Staircase and handrail lighting
Wardrobe and closet lighting
Reception desks and office lighting
Hotel, restaurant, and bar ambience
Exhibition stands and trade show displays
Signage and illuminated lettering
Outdoor signage and illuminated features
Garden, patio, and entertainment-area lighting
Caravan, motorhome, and marine applications
Poolside and outdoor accent lighting where suitably installed
DIY home and outdoor lighting projects

With their 24V design, COB LED strips are well suited to longer installations where consistent brightness and reduced voltage drop are important. They can also be dimmed using compatible LED dimmers and controllers, making them suitable for both task lighting and ambient or mood lighting. For outdoor installations, ensure the strip, connections, power supply, and installation method are appropriately rated for the level of moisture and environmental exposure.

About

24V COB Waterproof LED Strip Lights

Our 24V COB Waterproof LED Strip Lights deliver a seamless, dot-free line of light, making them ideal for both decorative and functional indoor and outdoor lighting applications. With hundreds of closely packed LED chips, COB (Chip-on-Board) technology provides smooth, uniform illumination that's perfect for under-cabinet lighting, shelving, retail displays, signage, architectural features, outdoor accents, and residential or commercial installations where additional protection against moisture and environmental exposure is required.

Colours & Diagrams

24 COB LED waterproof strip lights are available in a variety of colour options, including:

Warm White (2700K–3000K): Creates a soft, warm ambience ideal for residential, hospitality and decorative lighting.
Natural White (4000K–4500K): Offers a balanced, natural white appearance suitable for everyday and general lighting applications.
Cool White (6000K–6500K): Produces a crisp, bright white light ideal for modern, task and accent lighting.
Red: Creates a bold, vibrant effect suitable for decorative, architectural and feature lighting.
Green: Provides a vivid green illumination ideal for decorative, entertainment and accent lighting.
Blue: Produces a cool, striking blue effect suitable for decorative, architectural and entertainment applications.
Yellow: Offers a warm, vibrant colour ideal for decorative and creative lighting installations.
RGB: Provides a range of colours and dynamic lighting effects for decorative, entertainment and feature lighting applications.

24v cob led strip lights

LED COB Waterproof Strip Diagram

Diagram of 24V COB waterproof LED Strip Lights showing their cut intervals and physical dimensions. The 24V strip can be cut every 50mm at the designated cut points. The waterproof COB strip is typically 8mm wide, with a slim and flexible profile suitable for outdoor, residential, commercial, architectural, and decorative lighting applications. The waterproof coating provides additional protection for installations where moisture or water exposure may occur. Always cut only at the marked cut lines to ensure proper operation and maintain the waterproof integrity of the strip.

24v cob led strip lights

Illustration of the essential components for installing a 24V COB Waterproof LED Strip Light. The image shows a 24V COB waterproof LED strip, an aluminum profile channel with diffuser, and the strip's pre-applied 3M double-sided adhesive tape. The waterproof coating provides additional protection against moisture and environmental exposure, while the adhesive allows for quick installation. An aluminum profile is recommended to improve heat dissipation, provide additional protection, create a cleaner finish, and help maximize the lifespan of the lighting system.

LED COB Waterproof Strip Light Connection Diagram

24V COB Waterproof LED Strip Light wiring diagram showing the correct installation method using a 24V DC power supply. Each LED strip run should not exceed 10 metres in series to maintain consistent brightness and minimize voltage drop. For installations longer than 10 metres, connect additional strip lengths in parallel directly to the power supply. This setup helps ensure even, continuous light output, reliable performance, and optimal operation of the waterproof LED strip.
