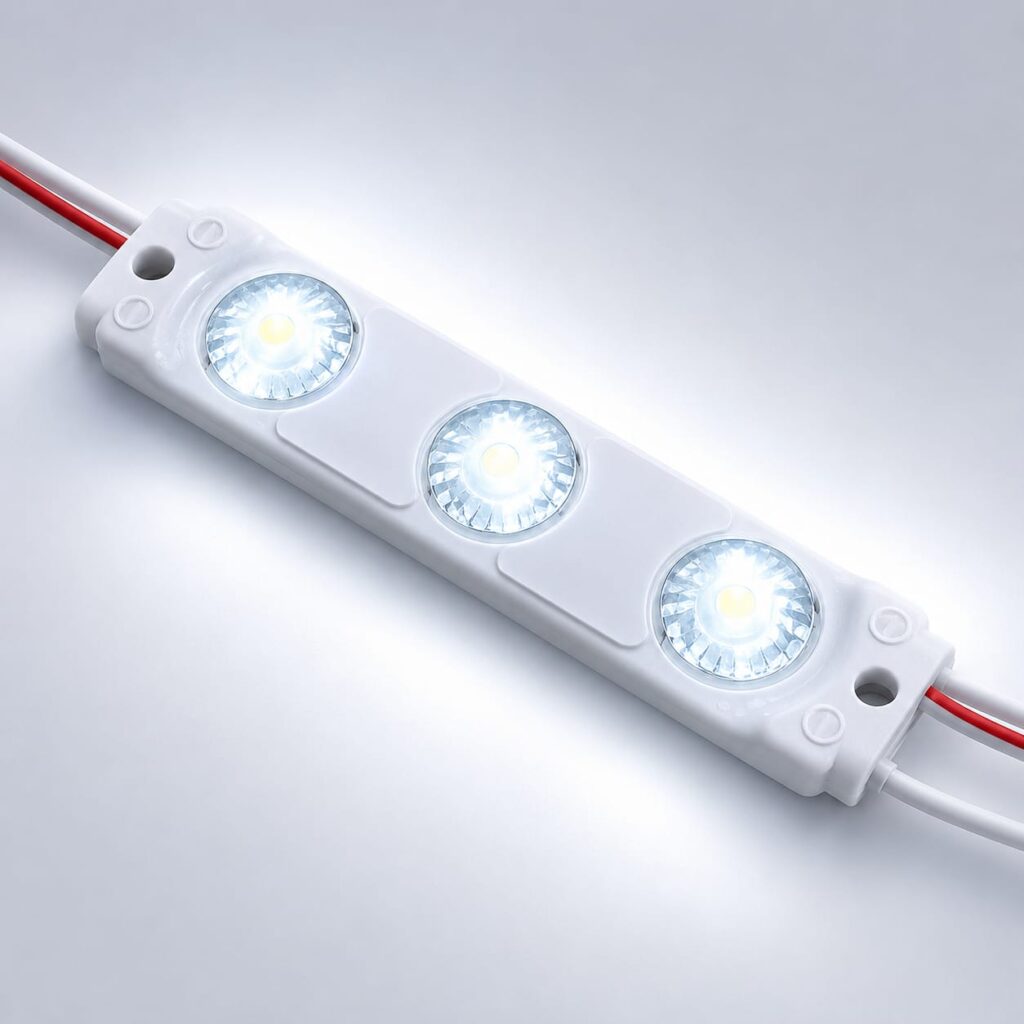

LED Module – 3 Chip / 175° / 1.5W / 12V / 9000K – 11 000K / Ice White / 5 Year warranty
Deliveries
- FREE Deliveries to all Signage Companies in S.A
Where can I be used…
Large channel letters and deep lightboxes, Signage with wide faces or complex shapes, Retail displays and architectural backlighting
Fabricated Letters and Light Boxes (30-100mm deep)
1.5W high-output module delivers bright, efficient lighting
Wide-angle lens spreads light evenly across large surface areas
Ideal for deep or large signage requiring broad light coverage
Online Price:
Original price was: R12.65.R11.50Current price is: R11.50. Vat Incl.
1650 in stock (can be backordered)
Product Details
Specifications
| Input | 12 Volt DC |
| Power | 1.5 Watt |
| Current | 0.125A |
| Lumens | 158 Lumens |
| Colour Temp | 9000K-11000K |
| Qty LED Chips | 3 (2835 Chip) |

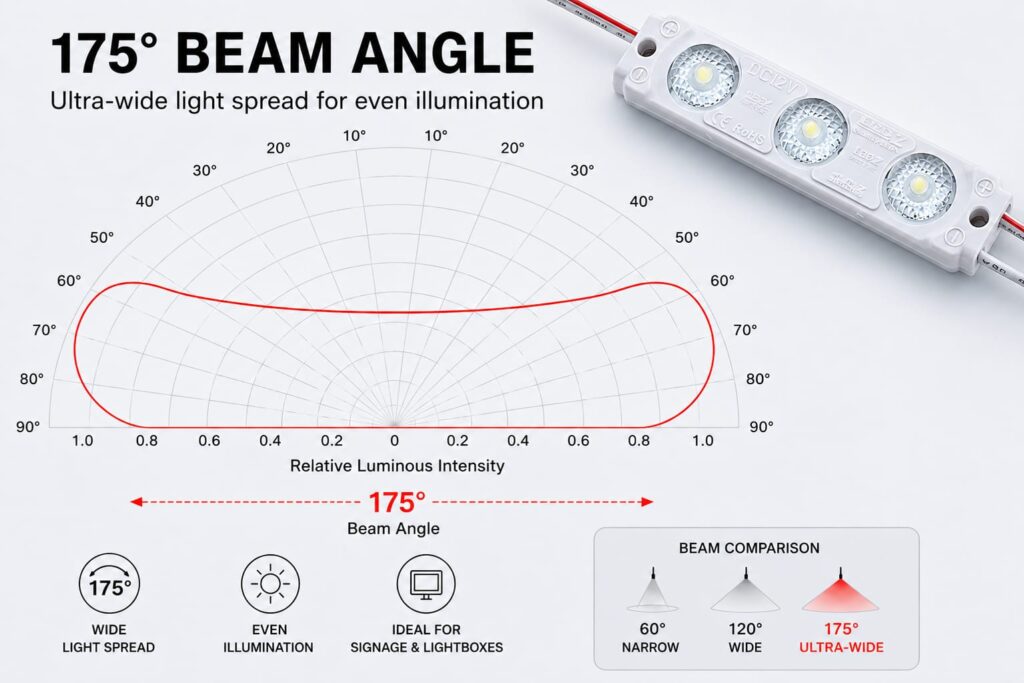

| Viewing Angle | 175° Angle |

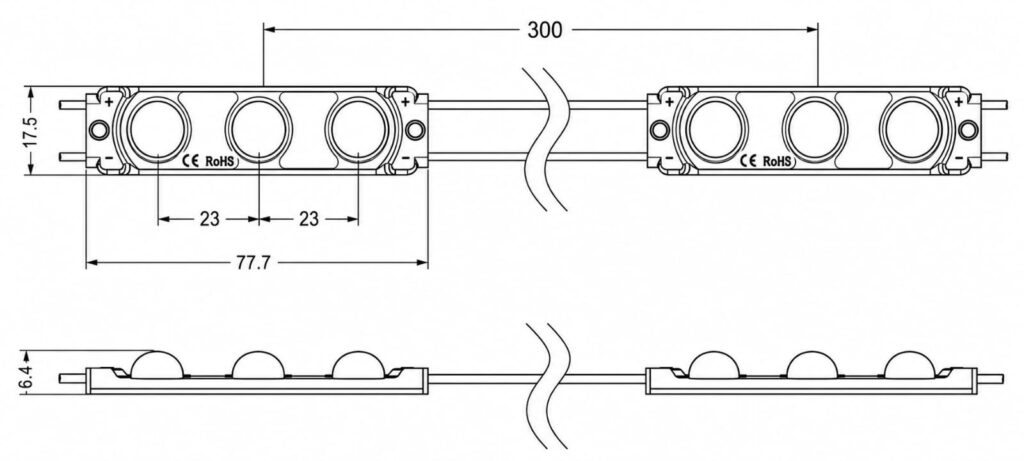

| Dimensions | 72mm x 18.5mm x 9mm |

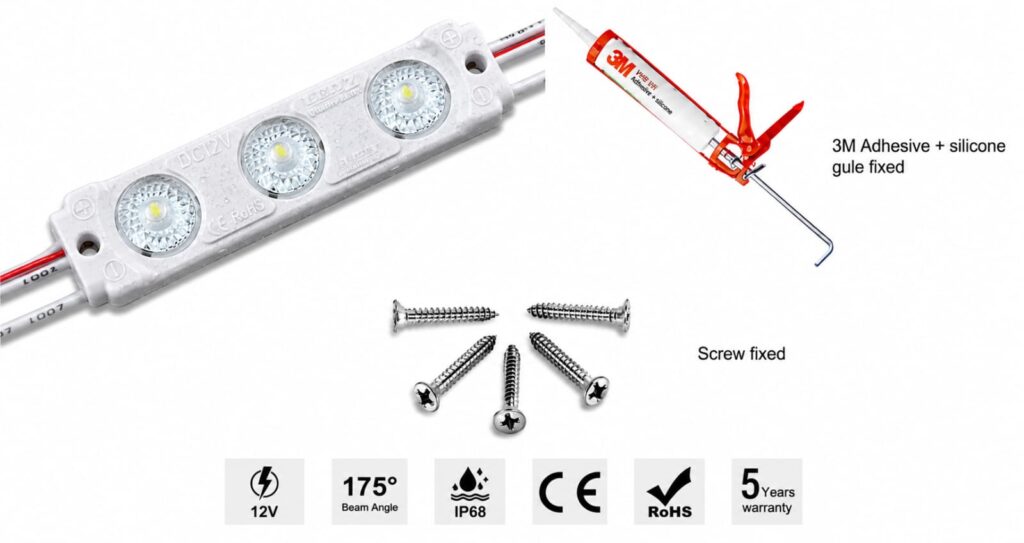

| Mounting | 3M VHB Double Sided Tape or screw mount |
| Wire Length | 120mm |
| Max Ambient Temp | 60° C |

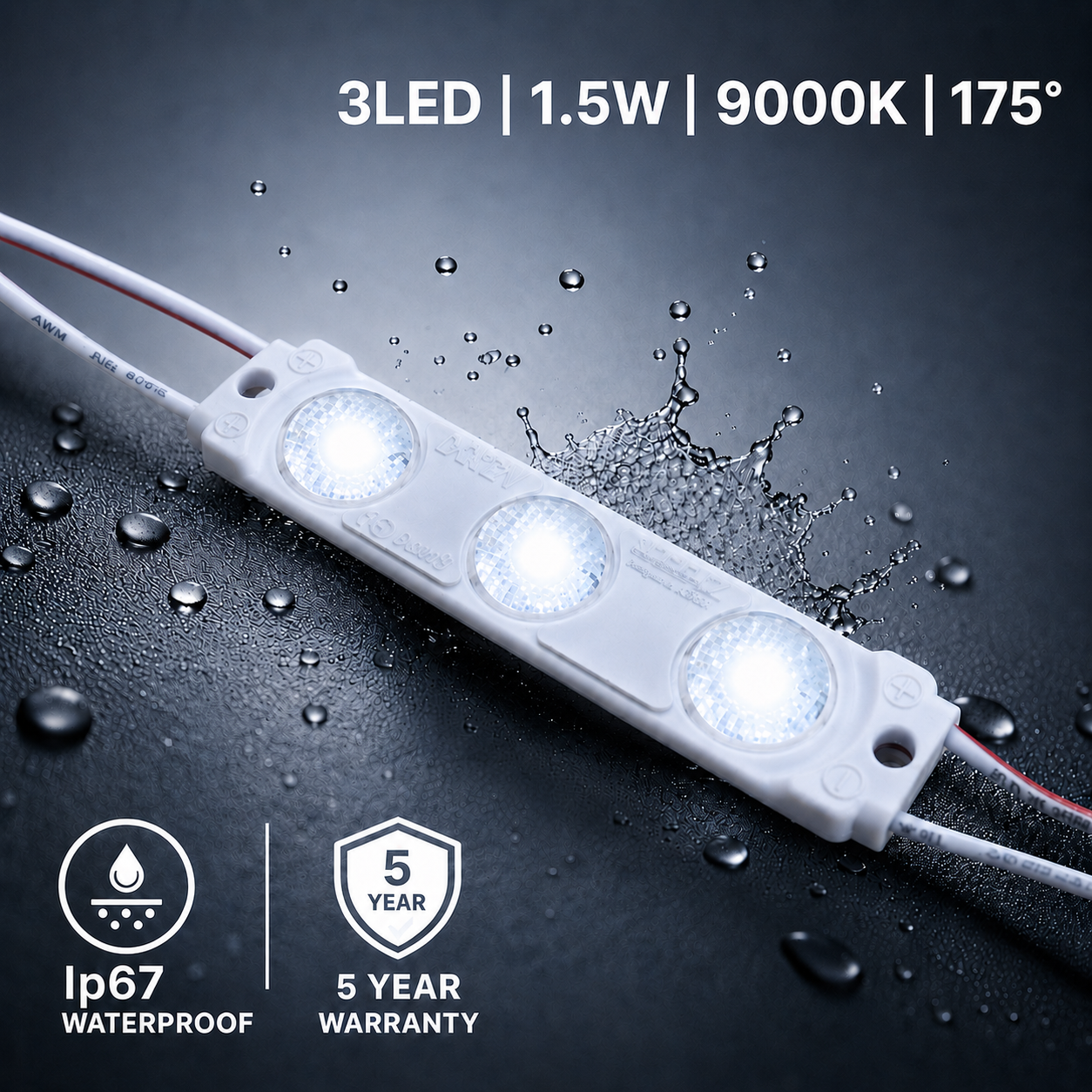

| Waterproofing | (IP67) |
| Warranty | 5 Years |
| Max Module | 20 Modules Per String in Series |
| Datasheet |  |
Do's and Donts
Do’s
Do use a 12V DC regulated power supply suited to total wattage
Do space modules to maximize even wide-angle coverage
Do ensure clean, dry mounting surfaces before installation
Don’ts
Don’t overload the power supply with too many modules
Don’t install outdoors unless waterproof-rated (IP65 or higher)
Don’t apply excessive force when installing or wiring modules

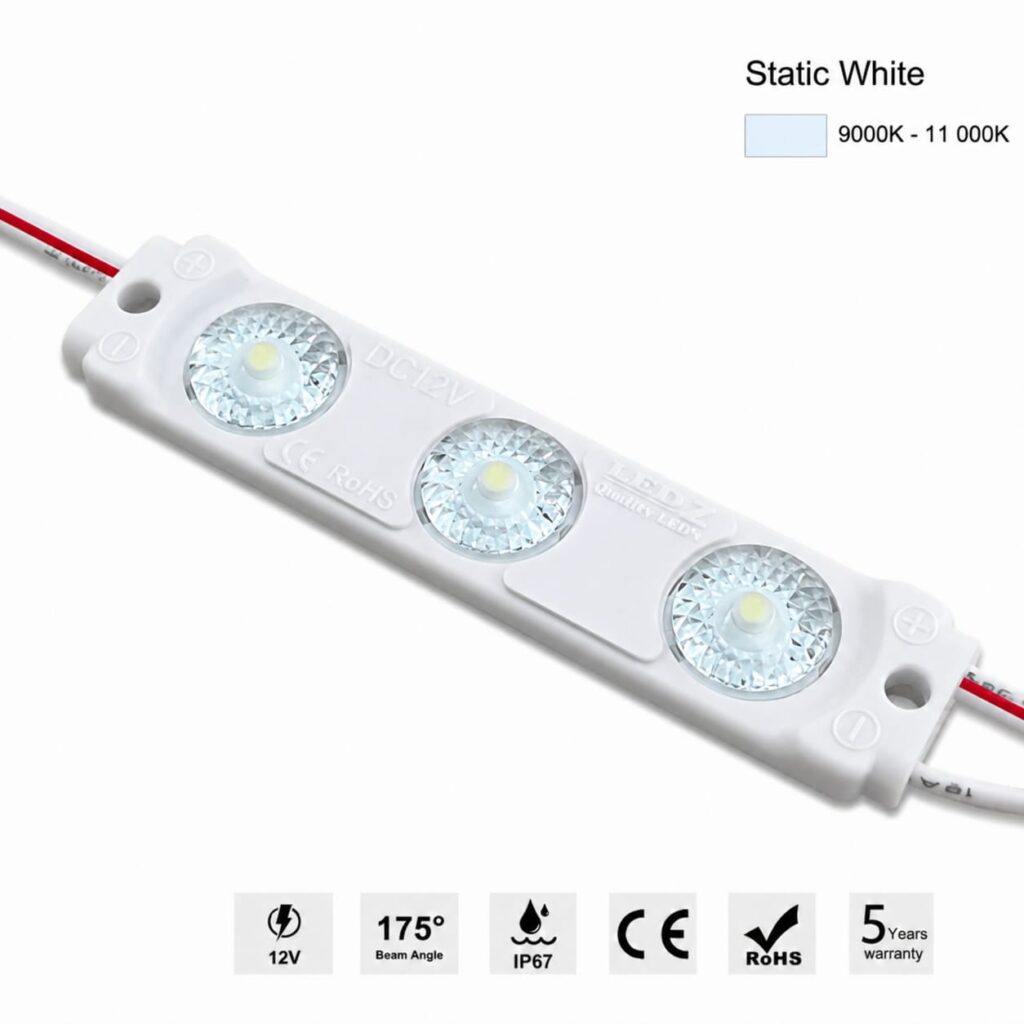

Colour Chart

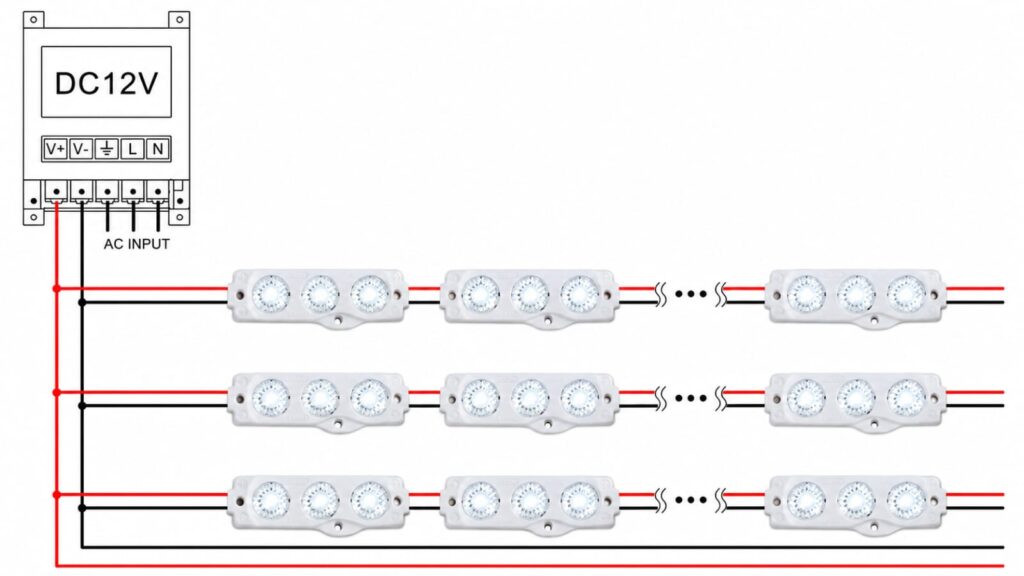

Basic Diagram & Checklist
Bulk Pricing
Bulk Prices
| Bulk Qty’s | Prices / Each (ex vat ) | Prices / Each (Vat incl. ) |
| 200-499 | R10.62 | R12.21 |
| 500-999 | R10.05 | R11.55 |
| >1000 | R9.76 | R11.22 |
